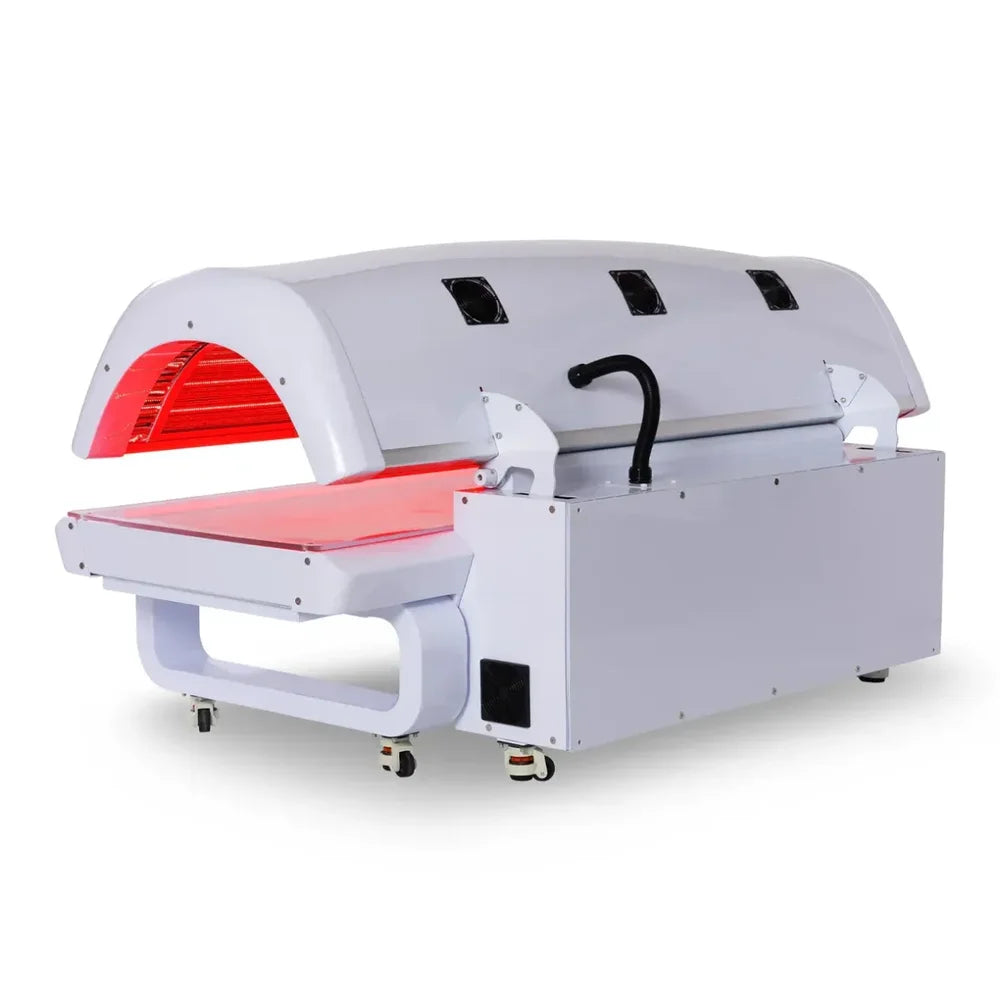

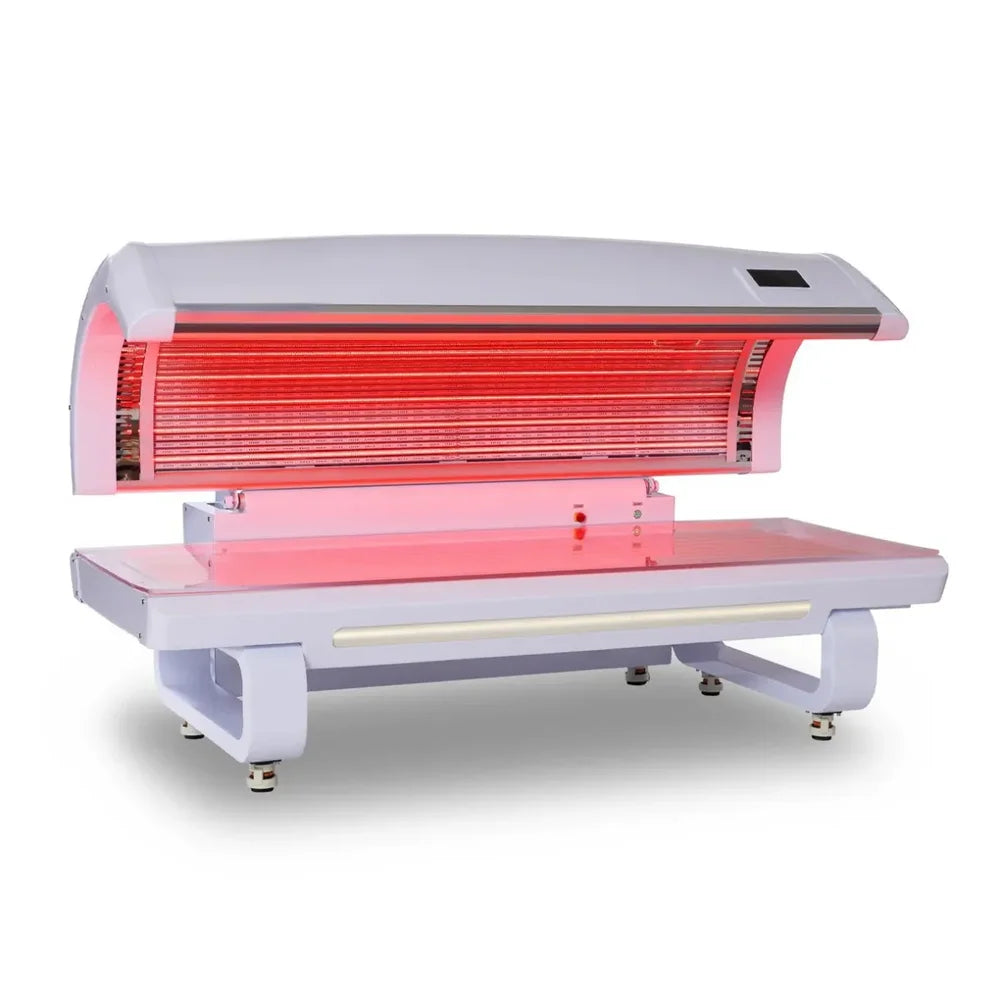

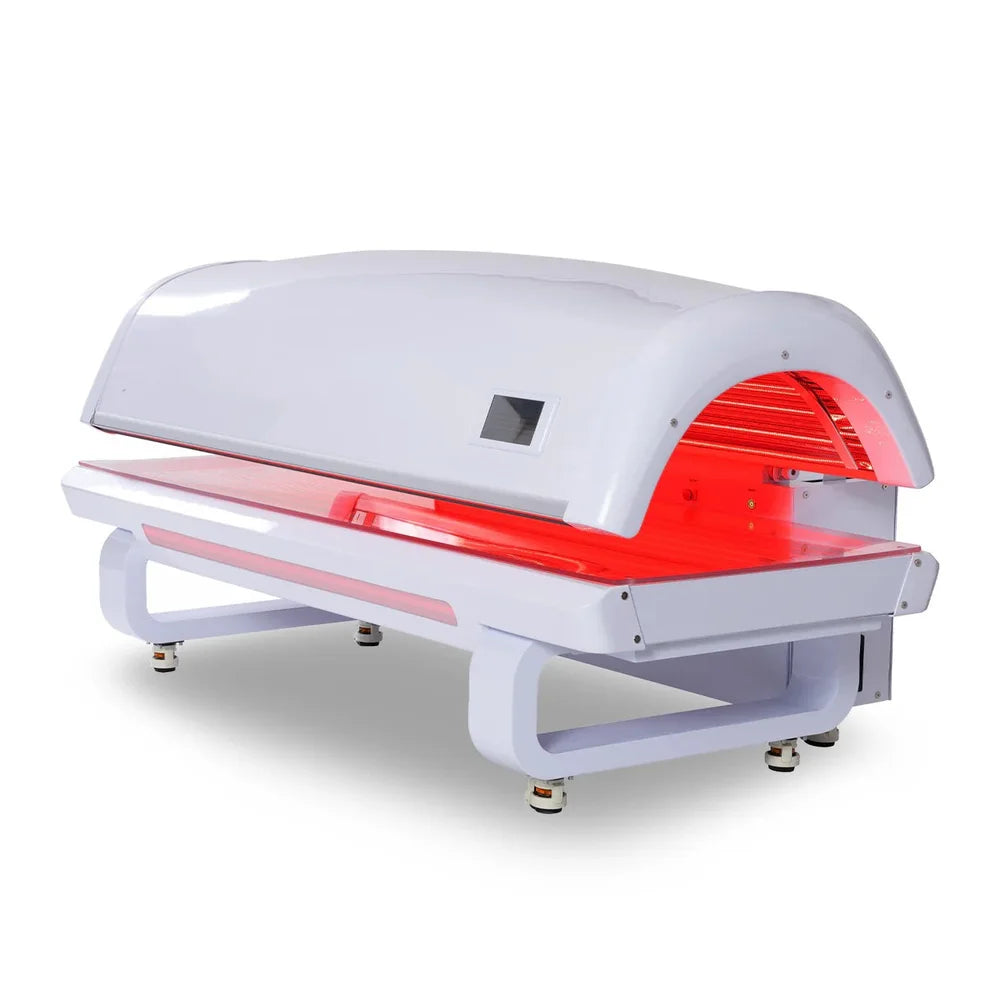

TSB 360 Nextgen Fit Full-Body Red Light Therapy Bed
The TSB 360 Nextgen Fit is a full-body red light therapy bed with 13,600 LEDs across five wavelengths. Your clients want a post-workout routine, a way to wind down, and a skin-care session, and right now they're paying someone else for it. In 15 minutes per session, this full body bed wraps them in five wavelengths across 13,600 high-density LEDs, then resets for the next appointment. Fast warm-up, whisper-quiet operation, and simple presets mean you can run sessions back to back all day. Built for wellness clinics, biohacking studios, gyms, athlete training facilities, and home performance labs.
-
Session time: Full body treatment in as little as 15 minutes per session
-
Coverage: 13,600 high-density LEDs across top and bottom panels for 360° body coverage
-
Wavelengths: 5 bands (470nm, 525nm, 633nm, 660nm, 810nm) within a full-spectrum light range of 400nm-1100nm
-
Presets: 5 one-tap modes, including Muscle Recovery, Boost Collagen, and Intelligent Mode
-
Uses: Post-workout sessions, skin-care routines and winding down
-
Operation: Passive cooling and low-EMF design for quiet, comfortable back-to-back sessions
-
Controls: Tempered-glass panel with wireless remote and lockable settings for consistent protocols
-
Install: Ships in modular sections through standard doorways, most setups done in a single 2-3 hour visit
-
Electrical: Runs on 110-240V with a dedicated 20A circuit, no special ventilation needed
-
Weight capacity: Supports up to 287 lbs. (130 kg)
-
Warranty: 2-year limited coverage, with an extended 5-year option on Nextgen Fit +
-
Support: Includes onboarding, marketing launch materials, and priority technical support
Five Wavelengths in a Single Session
Single-wavelength panels only reach one layer. A dense matrix of high-output LEDs here covers five distinct bands across a full-spectrum light range of 400nm-1100nm, all in one session:
-
470nm blue for surface-level work on the skin, within a blue light band of 415nm-470nm
-
525nm green for gentle surface coverage, within a green light band of 520nm-560nm
-
633nm deep red for skin-care routines
-
660nm red for a radiant-looking glow, with the red light band spanning 630nm-660nm
-
810nm near-infrared for post-workout sessions, with the near-infrared light band spanning 810nm-940nm
Irradiance sits at 30mw/cm² with a pulsing frequency range of 1-10,000 Hz, giving you repeatable output session after session rather than results that drift as the bed ages.
360° Coverage From the Nextgen Fit Full Body Red Light Bed
Handheld devices and small panels force clients to reposition every few minutes, and most of the body never gets treated. Here, 13,600 LEDs span both the top and bottom panels for full 360° body coverage while your client simply lies still.
More coverage means a higher dose per session, which means shorter sessions. LED lifespan is rated at 100,000 hours, so that output keeps showing up years into ownership.
How Clients Use the Nextgen Fit Red Light Bed
Clients come back for how they feel, and targeted wavelengths give them three reasons at once.
-
Recovery and performance: a warm, full-body session that fits a post-workout routine, popular with athletes and high-performing professionals
-
Skin: a regular part of many clients' skin-care routines
-
Wind-down: a quiet, calming session that leaves clients feeling relaxed
That combination makes it easy to include in memberships and session packages.
Five Presets and Locked Settings on the Nextgen Fit Infrared Therapy Bed
Staff shouldn't need a training manual to start a session. A tempered-glass control panel with wireless remote control puts five pre-set modes one tap away:
- Muscle Recovery
- Relaxation
- Fitness Routine Support
- Boost Collagen
- Intelligent Mode
Lockable settings keep clients from changing parameters mid-session, giving you consistent, staff-proof protocols no matter who is working the front desk. Onboard presets and session tracking help you see exactly how the bed is being used.
Silent, Cool, and Low-EMF by Design
Fan noise ruins the calm you're selling. A passive cooling system removes the fans entirely, so sessions stay quiet and the room stays peaceful. The low-EMF design adds another layer of comfort for clients who ask about it, and they will.
The result is a premium, calming experience clients remember, paired with the reliability you need for a full day of back-to-back bookings.
Simple Install and Support After the Nextgen Fit Red Light Therapy Bed Arrives
Worried about getting a full body bed through your door? It ships assembled in modular sections that pass through standard doorway access. Most installations finish in a single visit, usually 2 to 3 hours, covering delivery, placement, assembly, and testing, so your first session can run the same day.
-
Electrical: runs on 110-240V, 50/60Hz with a dedicated 20A circuit recommended
-
Ventilation: none required, and we provide a simple pre-install checklist for your contractor or electrician
-
Lead time: 4-6 weeks from order to installation
-
Delivery: free delivery and installation, with white-glove service available in most metros
-
Warranty: 2-year limited warranty with optional extended coverage
Every bed includes onboarding, marketing launch materials, and priority technical support. Gyms and clinics can add optional success reviews to fine-tune pricing, packaging, and utilization.
Choose the Model That Matches Your Growth Plan
Nextgen Fit suits home gyms, clinics, and studios. You get the commercial-grade red and near-infrared LED bed, customizable wavelength LEDs, onboard presets and session tracking, on-site white-glove installation in select regions, free delivery and installation, and the 2-year limited warranty.
Nextgen Fit + is built for high-volume gyms and fitness centers. It includes everything above plus a launch playbook with pricing templates, pre-built promo assets and email flows, priority support with monitoring, and extended 5-year warranty coverage.
Financing options are available for qualified buyers in many regions, so you can spread the investment over predictable monthly payments.
Who Should and Shouldn't Use the Bed
Full-spectrum light therapy is generally well tolerated, and the bed supports a weight capacity of 287 lbs. (130 kg). Clients who are pregnant, photosensitive, or taking certain medications should consult their healthcare provider first. Intake and consent templates are included so you can adapt them to your practice.
Product Specs
| Spec |
Value |
| Dimensions |
90" L x 50" W x 46" H |
| Wavelengths |
470nm (blue), 525nm (green), 633nm (deep red), 660nm (red), 810nm (near-infrared) |
| Full-Spectrum Light |
400nm-1100nm |
| Blue Light |
415nm-470nm |
| Green Light |
520nm-560nm |
| Red Light |
630nm-660nm |
| Near-Infrared Light |
810nm-940nm |
| LED Count |
13,600 high-density LEDs (top and bottom panels) |
| Irradiance |
30mw/cm² |
| Pulsing Frequency |
1-10,000 Hz |
| LED Lifespan |
100,000 hrs. |
| Pre-Set Modes |
Five presets, including Muscle Recovery, Boost Collagen and Intelligent Mode |
| Voltage |
110-240V, 50/60Hz |
| Max Power Draw |
1,360W |
| Circuit Requirement |
Dedicated 20A circuit recommended |
| Weight Capacity |
287 lbs. (130 kg) |
| Cooling |
Passive cooling system, low-EMF design |
| Controls |
Tempered-glass control panel, wireless remote, lockable settings |
| Installation |
Standard doorway access with modular assembly |
| Lead Time |
4-6 weeks |
| Warranty |
2-year limited warranty (Nextgen Fit) / 5-year extended coverage (Nextgen Fit +) |
FAQs
| Question |
Answer |
| How long is a session? |
As little as 15 minutes for full-body coverage. |
| What wavelengths does it use? |
5 bands — 470nm, 525nm, 633nm, 660nm, and 810nm — within a full-spectrum 400nm-1100nm range, all in one session. |
| Is it safe for every client? |
Full-spectrum light therapy is generally well tolerated, but clients who are pregnant, photosensitive, or on certain medications should consult their healthcare provider first. Intake and consent templates are included. |
| What's the weight capacity? |
287 lbs. (130 kg). |
| How much space and power does it need? |
It ships in modular sections through standard doorway access and runs on 110-240V with a dedicated 20A circuit — no special ventilation required. |
| How long does installation take? |
Most installs finish in a single 2-3 hour visit covering delivery, placement, assembly, and testing, so the first session can run the same day. Lead time is 4-6 weeks from order. |
| Does staff need training to run it? |
No. Five one-tap presets (including Muscle Recovery, Boost Collagen and Intelligent Mode) run from a tempered-glass panel with wireless remote, and lockable settings keep protocols consistent no matter who's at the front desk. |
| How long do the LEDs last? |
Rated for 100,000 hours. |
| What's covered under warranty? |
2-year limited warranty on Nextgen Fit; extended 5-year coverage on Nextgen Fit +. |
| Is financing available? |
Yes, for qualified buyers in many regions. |
| What support comes with the bed? |
Onboarding, marketing launch materials, and priority technical support. Gyms and clinics can add optional success reviews to fine-tune pricing, packaging, and utilization. |
Planning for Commercial Use
Every facility is different. Session pricing, client volume, staffing, and operating costs all vary, so we don't publish revenue or payback estimates. If you're adding this equipment to a clinic, studio, spa, or gym, call us at (855) 975-6272 and we'll help you plan space, power, installation, and support.
