OxyRevo Space60 Hard Shell Sitting Hyperbaric Chamber 1.5 to 2.0 ATA

Step Inside the OxyRevo Space60 Hyperbaric Chamber and Sit, Recline, Breathe

The OxyRevo Space60 is a hard shell sitting hyperbaric chamber with 1.5 to 2.0 ATA settings. Tired of squeezing into a cramped soft shell and needing someone outside to run the session for you? Sit upright or lean all the way back inside a solid stainless steel shell with a huge transparent front door and two big side windows. You set the pressure, you press the buttons, you watch the readings on a screen at arm's reach. 1.5ATA as standard, 1.6ATA higher, up to 2.0ATA, with 200cm of length to stretch out in. No waiting on a helper, just your own HBOT session whenever you want it.

• Self-operated design: control panels, gauges and screens sit both inside and outside, so one person can run a full session start to finish.
• Hard shell build: Stainless Steel 304 body with a three-piece welded construction, 800Kg overall and 200cm long for real room to move.
• Pressure range: 1.5ATA standard, 1.6ATA higher, adjustable up to 2.0ATA with a simple valve press.

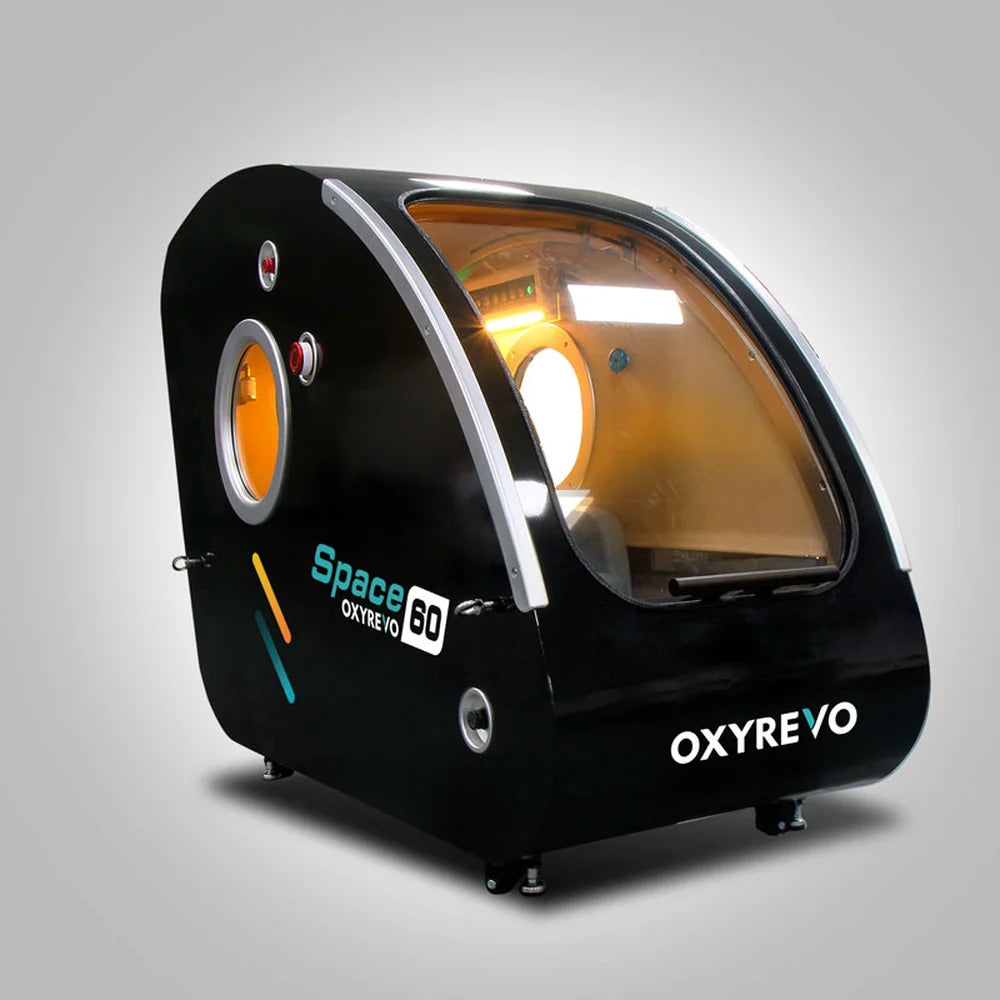

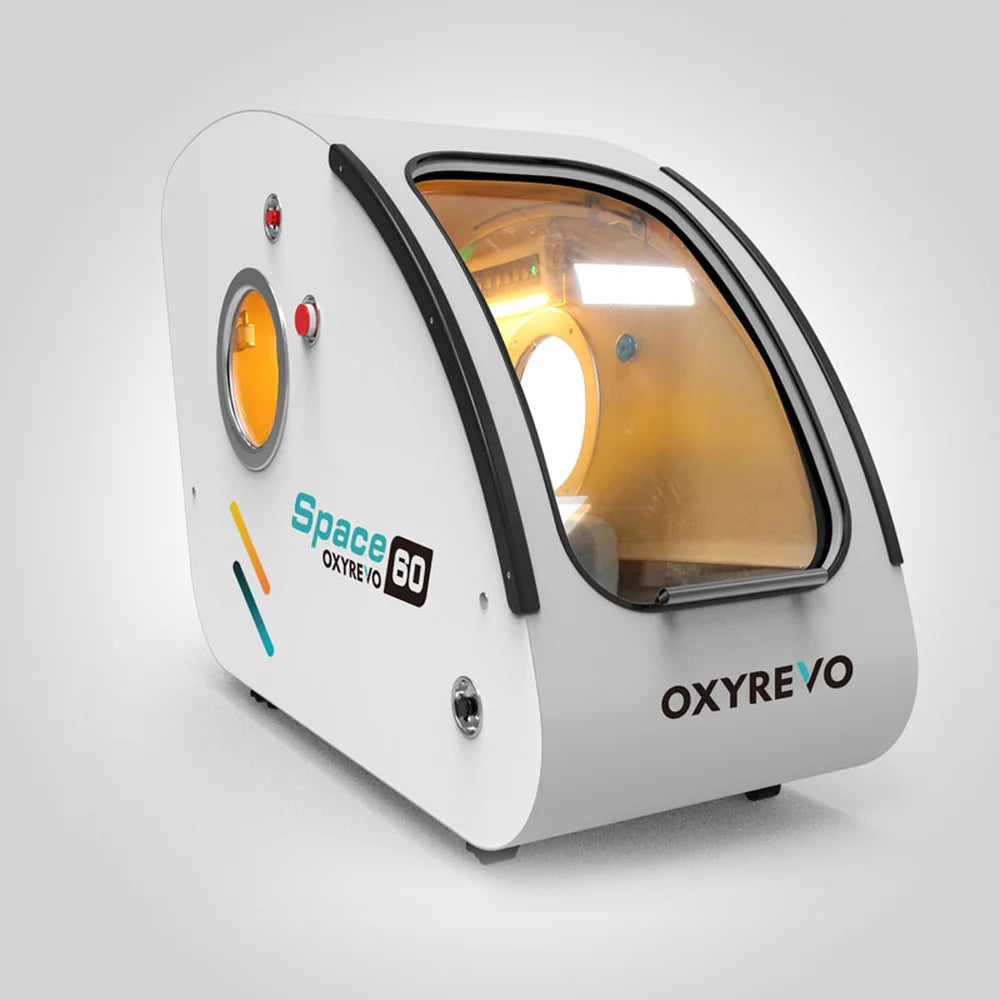

• Clear visibility: large transparent front door plus double-layered Bayer polycarbonate windows at each end, reducing any closed-in feeling.

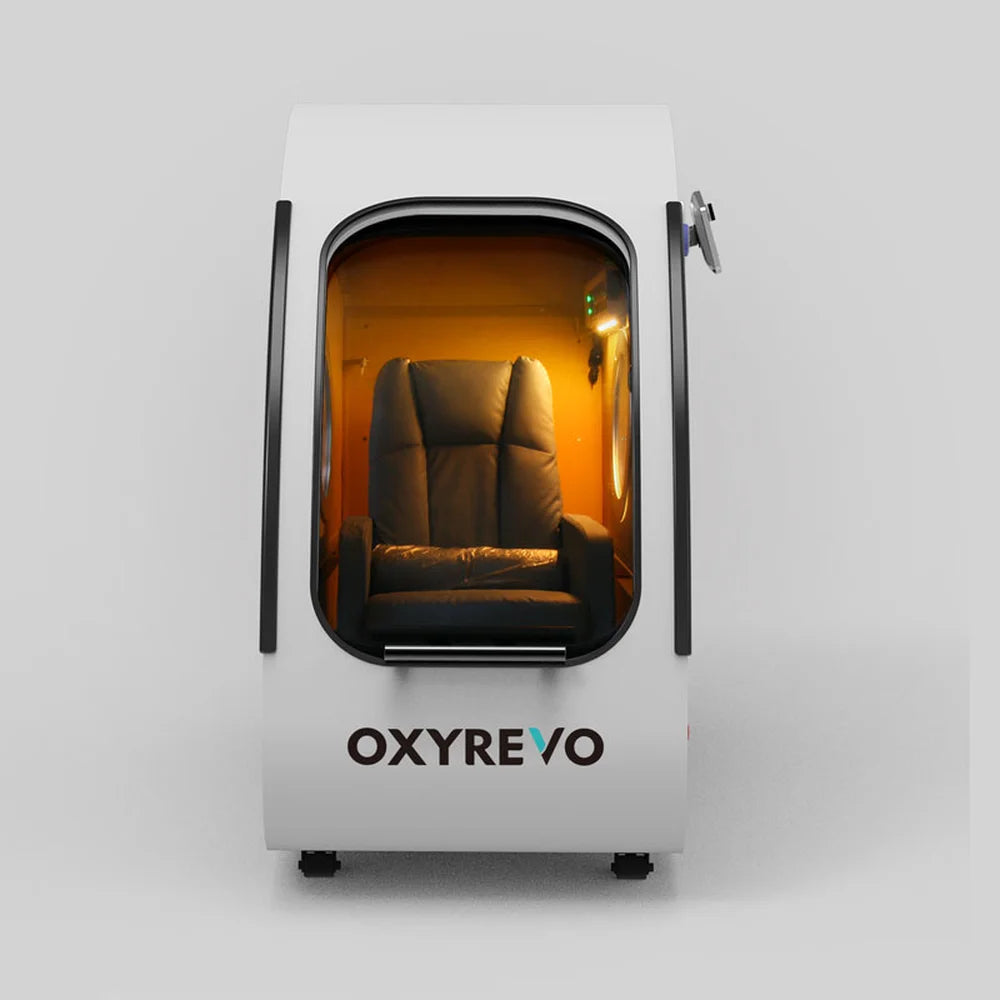

• Two positions: premium folding chair included, letting you sit upright or recline fully.
• Live readings: dual screens show temperature, humidity, oxygen purity and pressure inside and out.
• Oxygen supply: 10L concentrator standard at 90-97% purity, with a 20L option available at 90%-98% purity.
• Safety systems: automatic power failure pressure release, a smart door sensor lock and a 30 second emergency valve.
• Climate control: built-in cooling and dehumidifying with zero maintenance, plus an anion generator and nano sterilizer.
• Timer: automatic session timing from 0 to 120 minutes.
• Color options: White, Black, Silver or Blue, with OEM colors available on request, and quilted leather interior seating shown in Beige, White and Black.
• Optional upgrades: Red Light Therapy panel, water chiller AC, 20L concentrator, OmniBreath BIBS mask system, TV and Bluetooth speaker kit, and a luxury power chair with massage, heating and ventilation.
• Full system included: chamber, all-in-one operating unit and starter accessories arrive ready to connect and use.

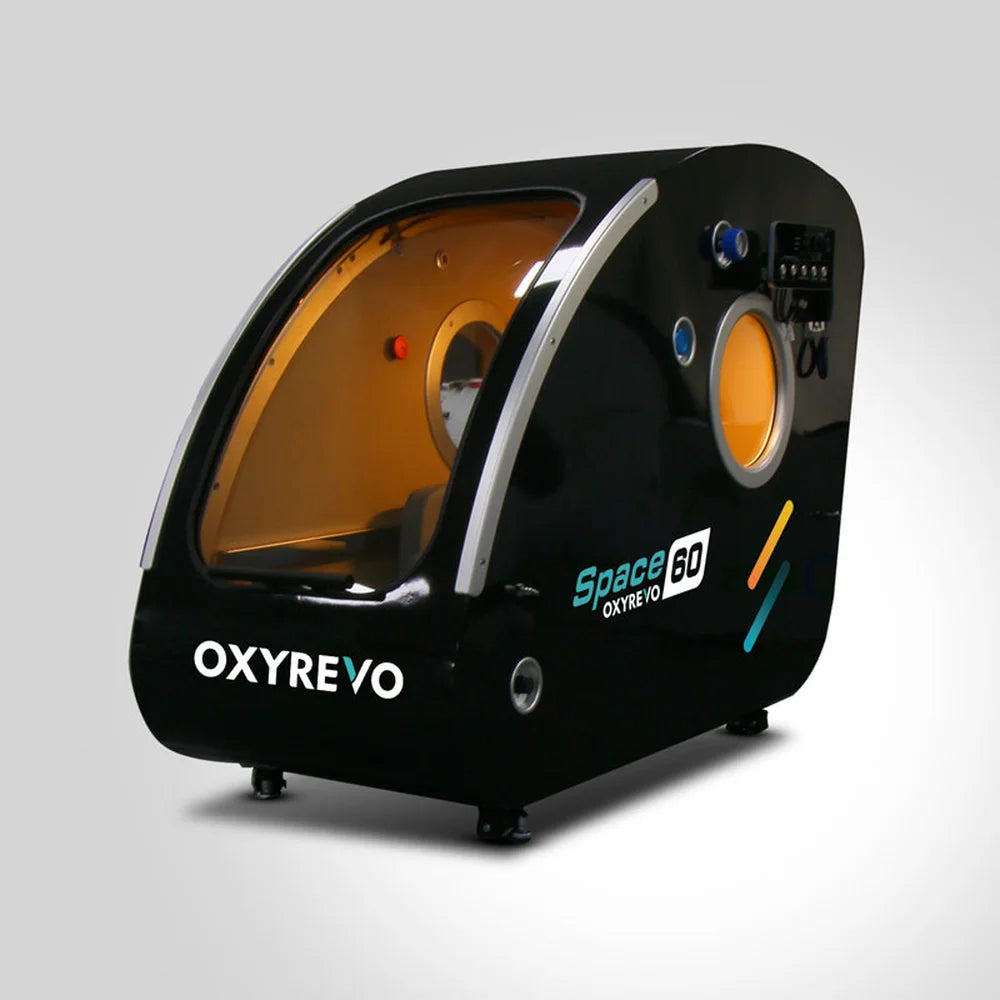

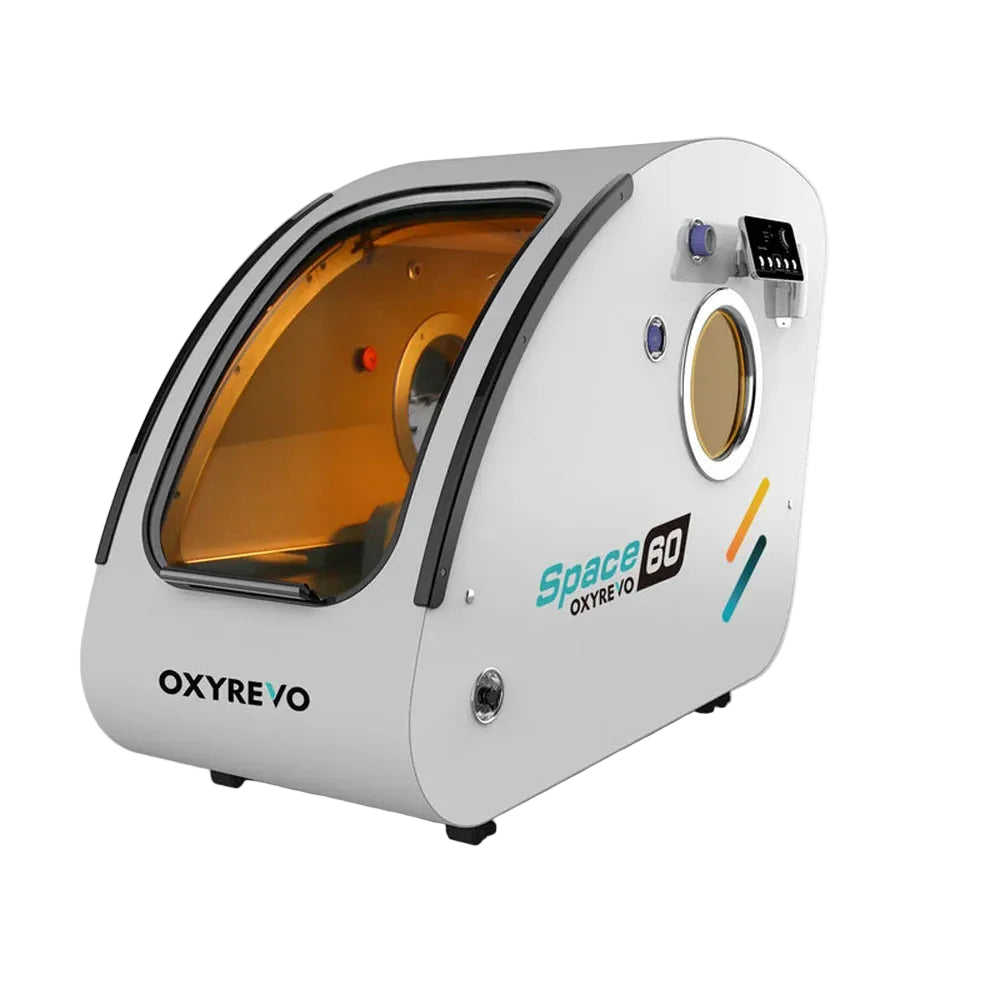

Solid Stainless Steel Build in the OxyRevo Space60 Hard Shell Chamber

The shell is what separates this chamber from a fabric bag. The 1.5/1.6ATA versions are built from Stainless Steel 304 and PC material, while the 2.0ATA versions use thicker materials for the higher working pressure. The complete unit is shown as a pair: the chamber tank in side profile with its external panel and round porthole, alongside the silver all-in-one operating machine on wheels.

• Three-piece welded body using stainless steel of different thicknesses, giving higher strength and pressure resistance with no bending risk over years of use.
• New advanced welding and splicing process that fits metal and polycarbonate together perfectly, reinforced on the outside by an aluminium ring so the body stays firm and won't deform.
• Bayer-brand polycarbonate windows, double-layered aviation-grade material at the head and foot ends for a wide field of view in and out.
• Four solid wheels at the bottom, so 800Kg of chamber still rolls into position.

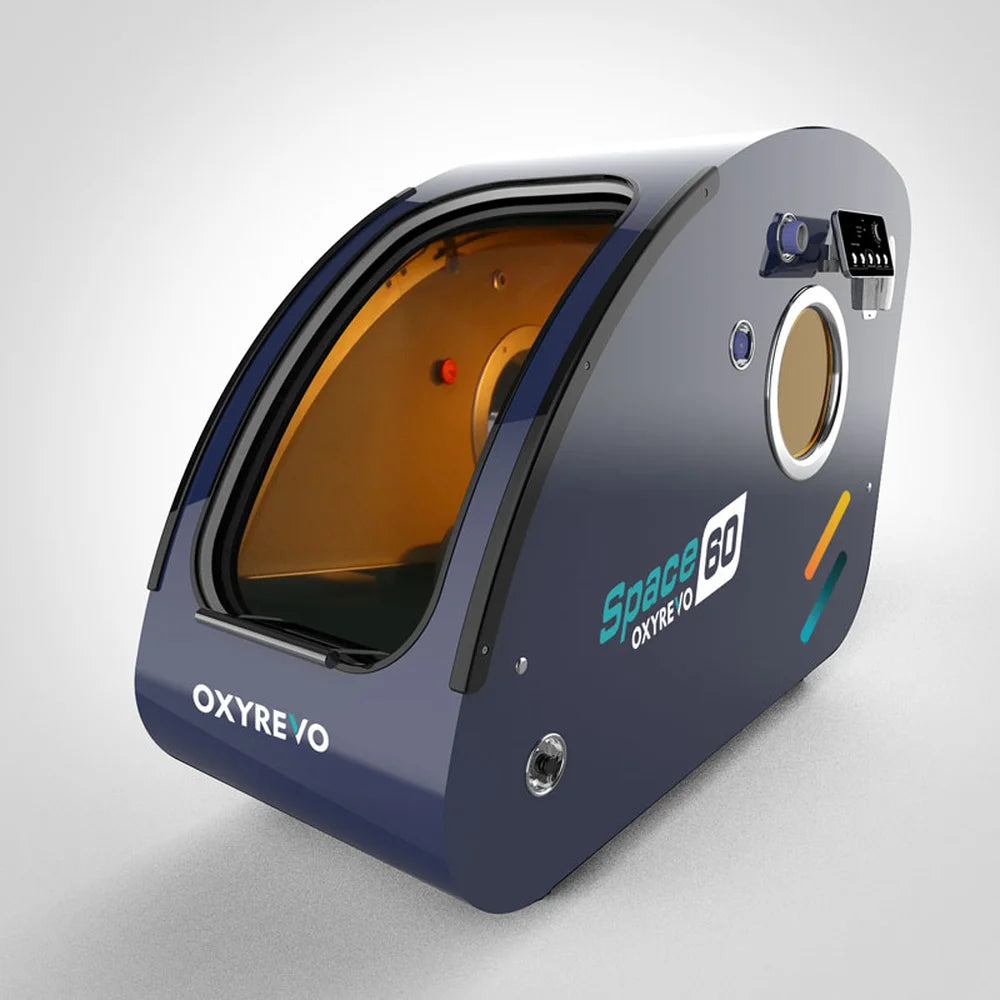

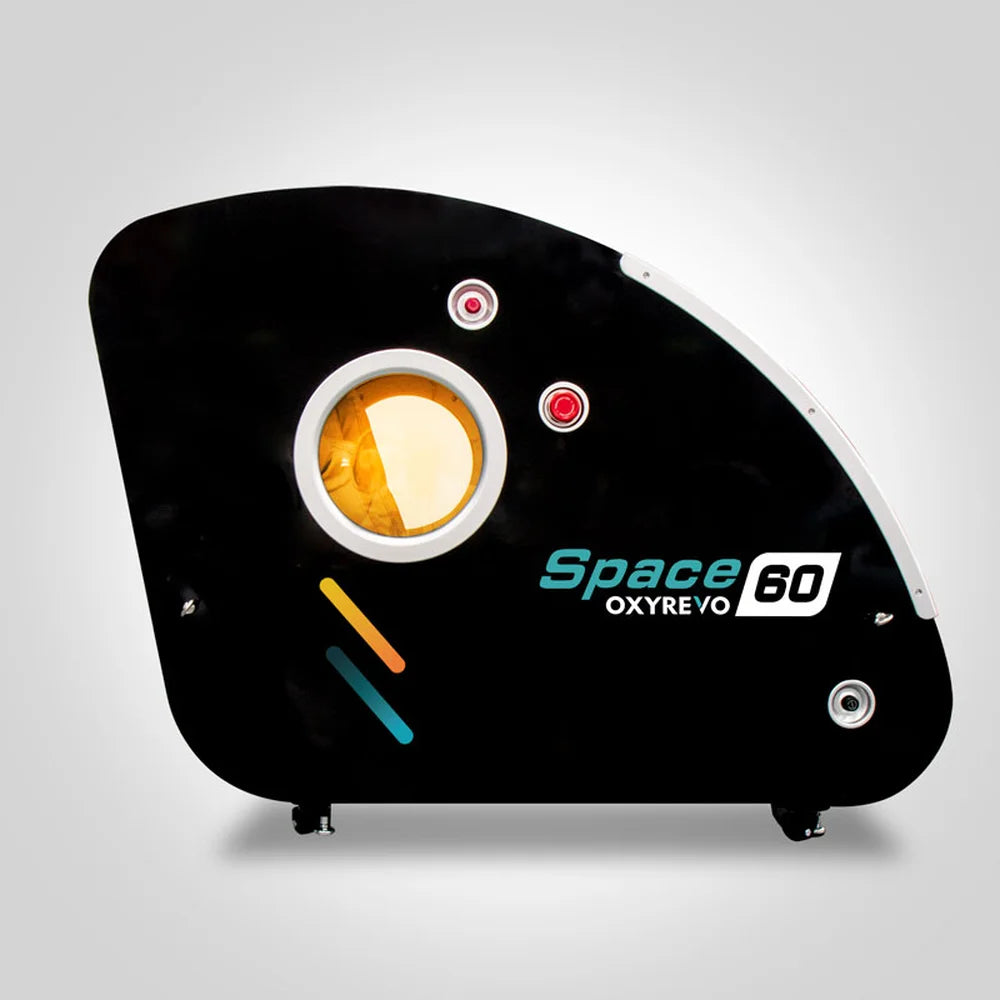

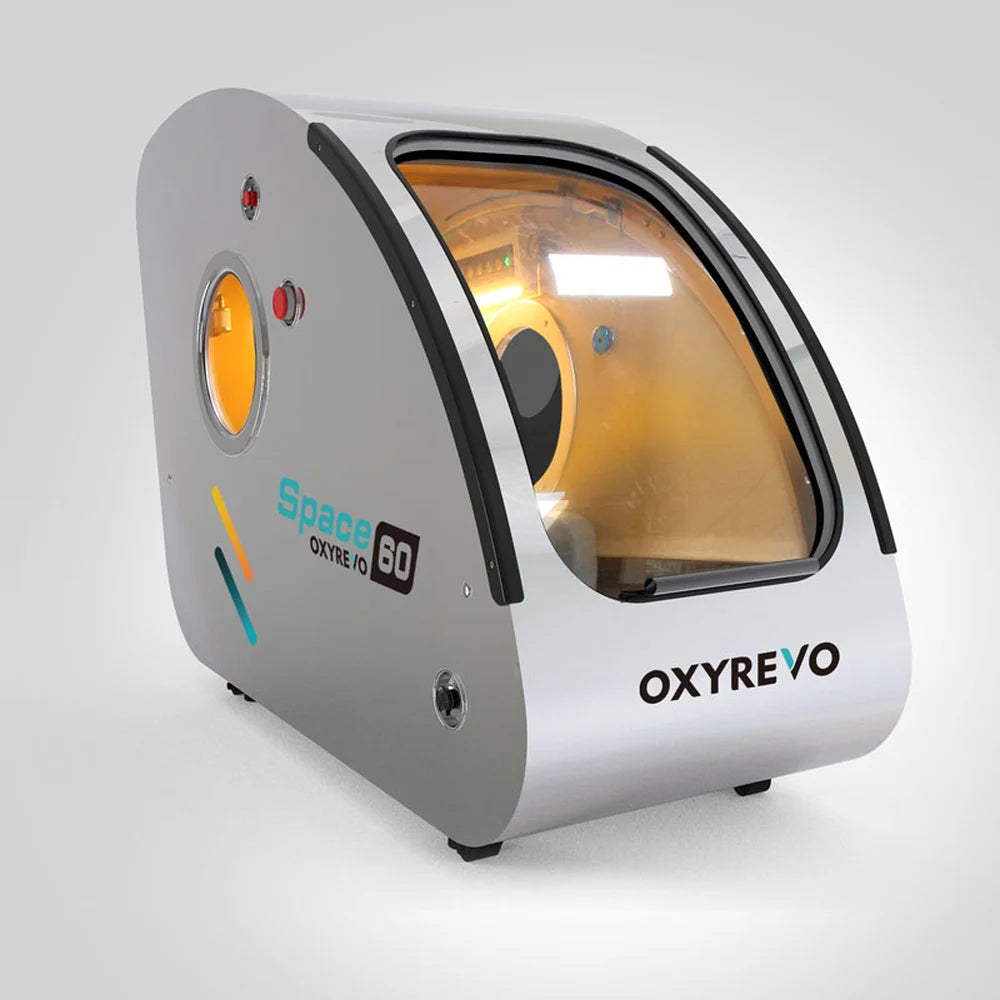

• Choose White, Black, Silver or Blue, with OEM colours available on request.

Run Everything Yourself With the OxyRevo Space60 Hyperbaric Oxygen Chamber Controls

Control panels sit inside and outside, so a single person can start, monitor and end a session without anyone standing by. Both positions have their own digital display and their own pressure gauge.

• Internal panel with indicator lights and labelled buttons for oxygen, anion, dehumidify, refrigerate and lighting, an analogue pressure gauge on the panel and the LED reading light sitting above the inner window.

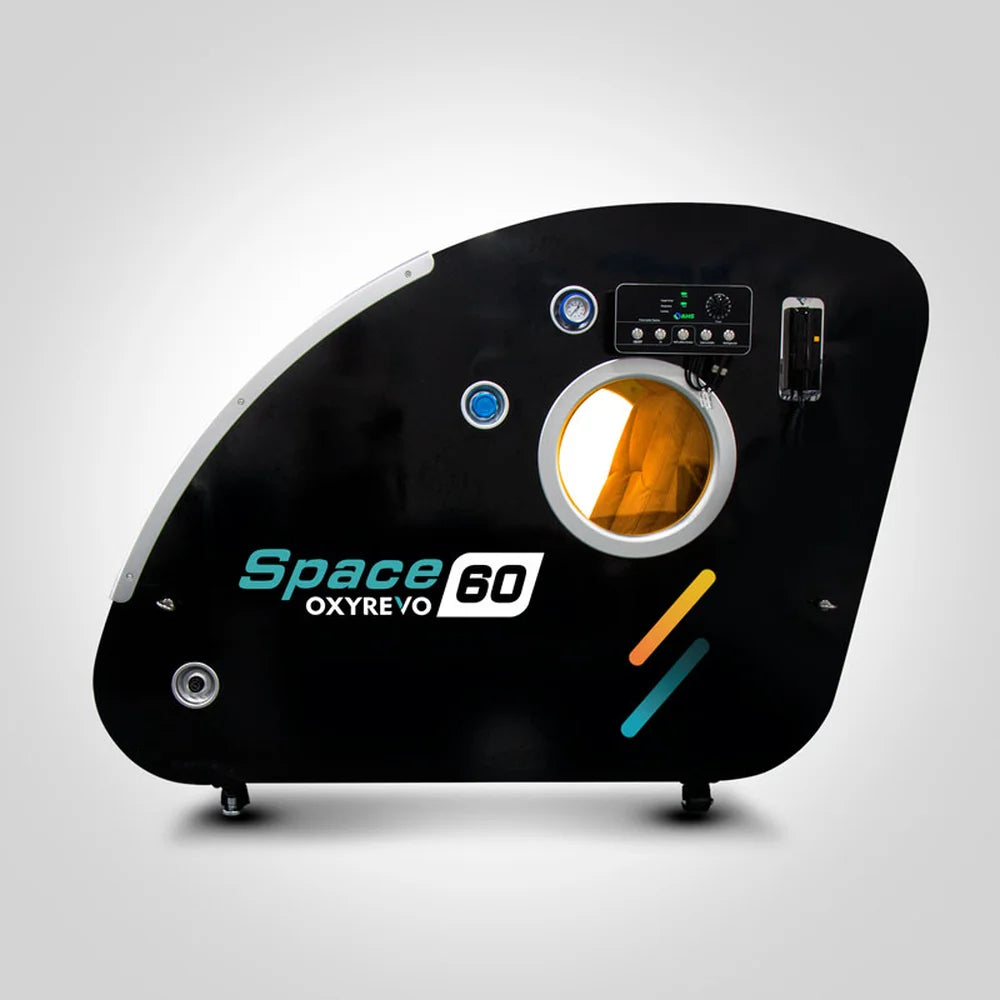

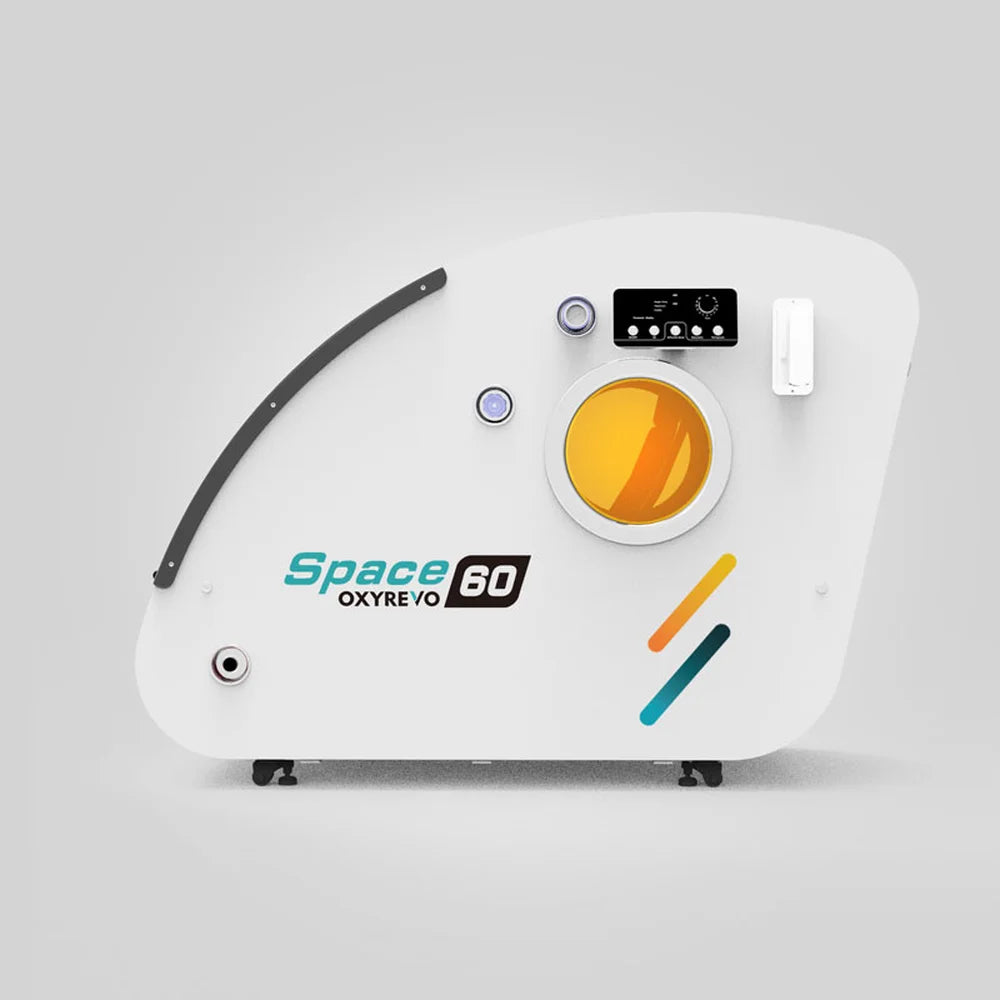

• External panel mounted on the shell with power and door indicator lights, a timer dial and labelled buttons for on/off, O2, anion, dehumidify and refrigerate, with the wall-mounted handset beside it.
• Dual digital screens showing temperature, humidity and oxygen purity inside the chamber, read by a highly precise sensor.
• Dual pressure display, internal and external readings available at any moment.
• Timing system with 0 to 120 minutes of automatic timing.
• Phone and speaker inside and outside for easy two-way communication.
• Eye-protecting LED reading light inside, so a book or tablet is comfortable for the whole session.
• Pressure switch valve with an exclusive design, letting you select 1.3/1.5/1.8/2.0ATA (or any level you prefer) with a simple press, so you can start low and work up through different protocols.

Safety Systems That Watch the Door and the Power Supply on the OxyRevo Space60 Oxygen Therapy Chamber

Pressurised sessions need protection that works even when you are asleep inside. Three systems handle exactly that.

• Power failure safety system, which releases pressure slowly and automatically if the power cuts out suddenly, then drops the door down once pressure is released.
• Smart door sensor, a sensor lock that only allows operation when the door is fully closed, with indicator lights inside and outside confirming the state.

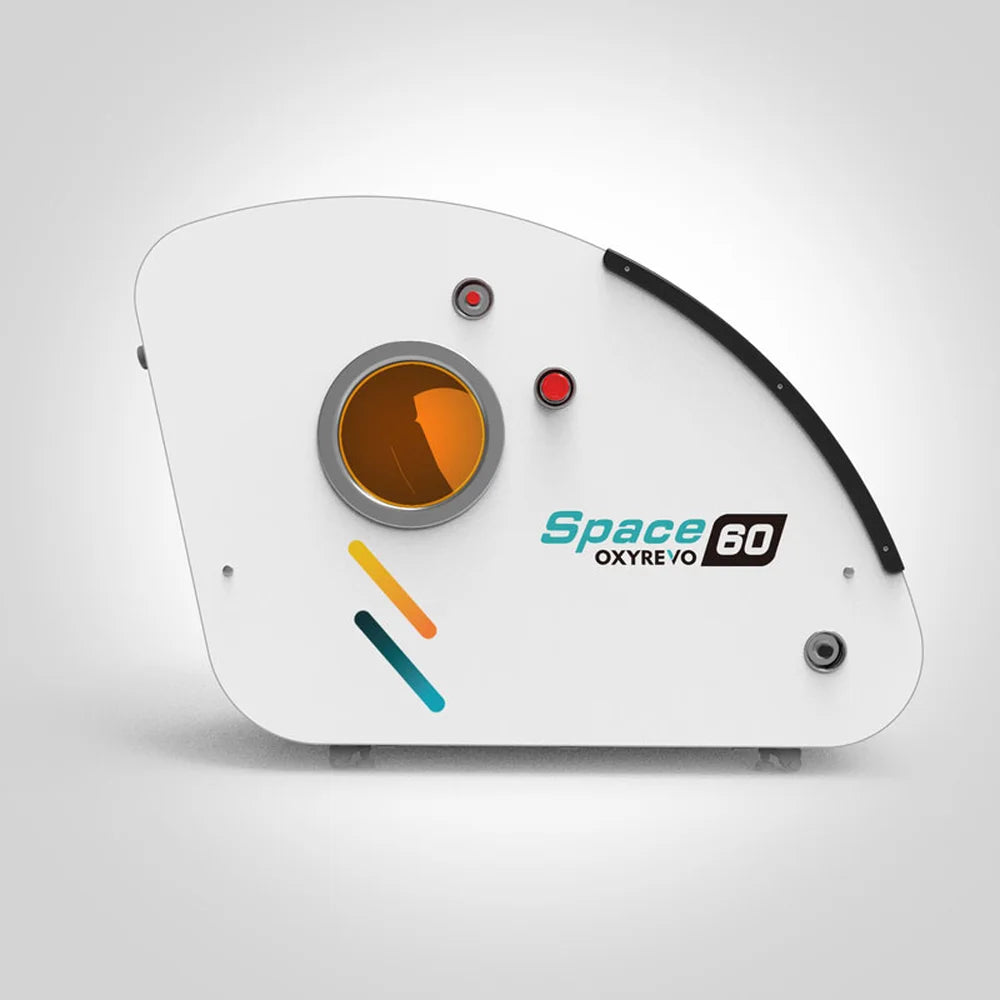

• Emergency valve for quick pressure release in 30 seconds.
• Pressure relief valves and deflate valves built into the chamber body.

Cool, Dry, Purified Air Around You in the OxyRevo Space60 Sitting Hyperbaric Chamber

Sealed chambers get warm and humid fast. The built-in air cooling system pulls humidity out and cools the air, giving dry, clean, comfortable air even in summer. It runs electrically, so there is no ice water, no Freon and zero maintenance, with a humidity water container in the operating unit collecting what it removes: a clear cylindrical bottle with a silver cap and base, seated in its black bracket recess within the all-in-one machine housing.

Air quality gets its own treatment too:

• Anion generator for fresher-feeling air in the cabin.
• Water nano sterilizer to help keep the cabin fresh between sessions.
• Air filter feeding the chamber from the all-in-one unit, a circular blue PE filter port with three curved intake vanes.

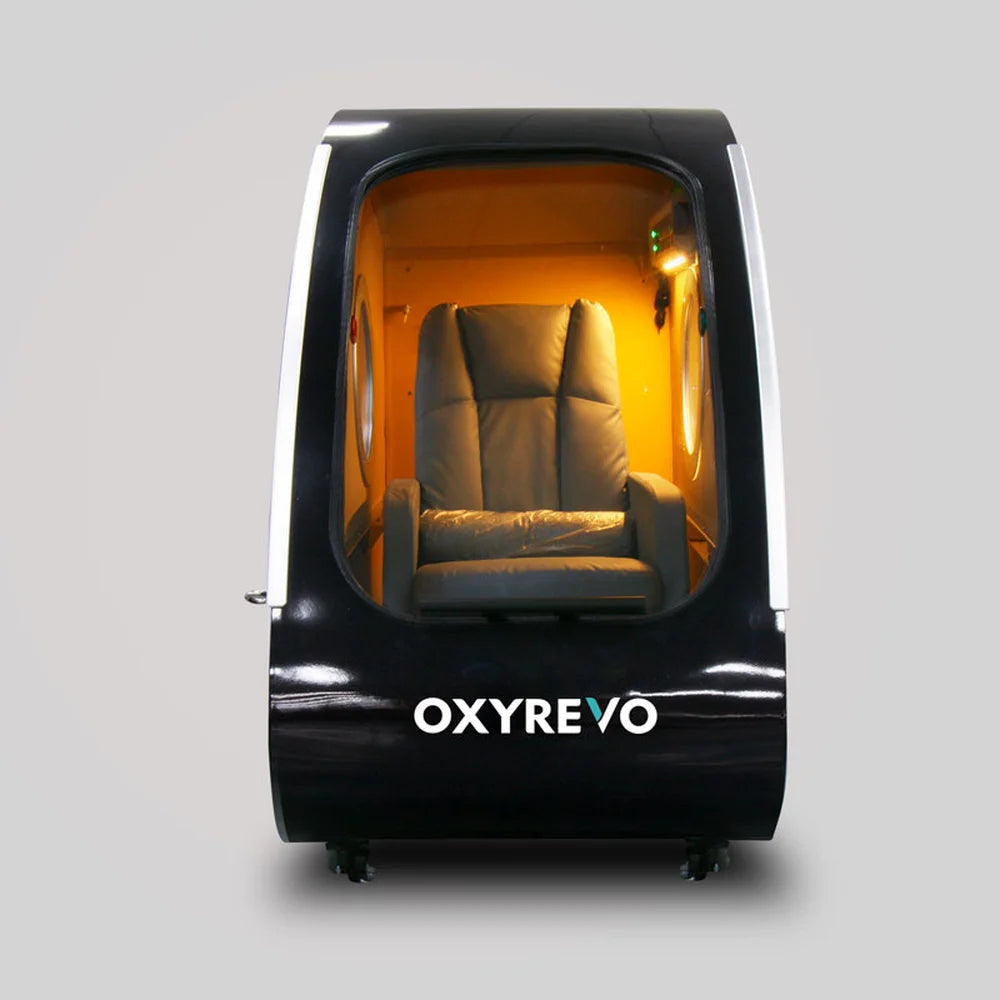

Two Ways to Use the OxyRevo Space60 HBOT Chamber

At 200cm long, 153cm high and 86cm wide (78cm on the Space60 Mini), there is genuine room to move. A premium folding recline chair comes with the chamber, giving you two positions:

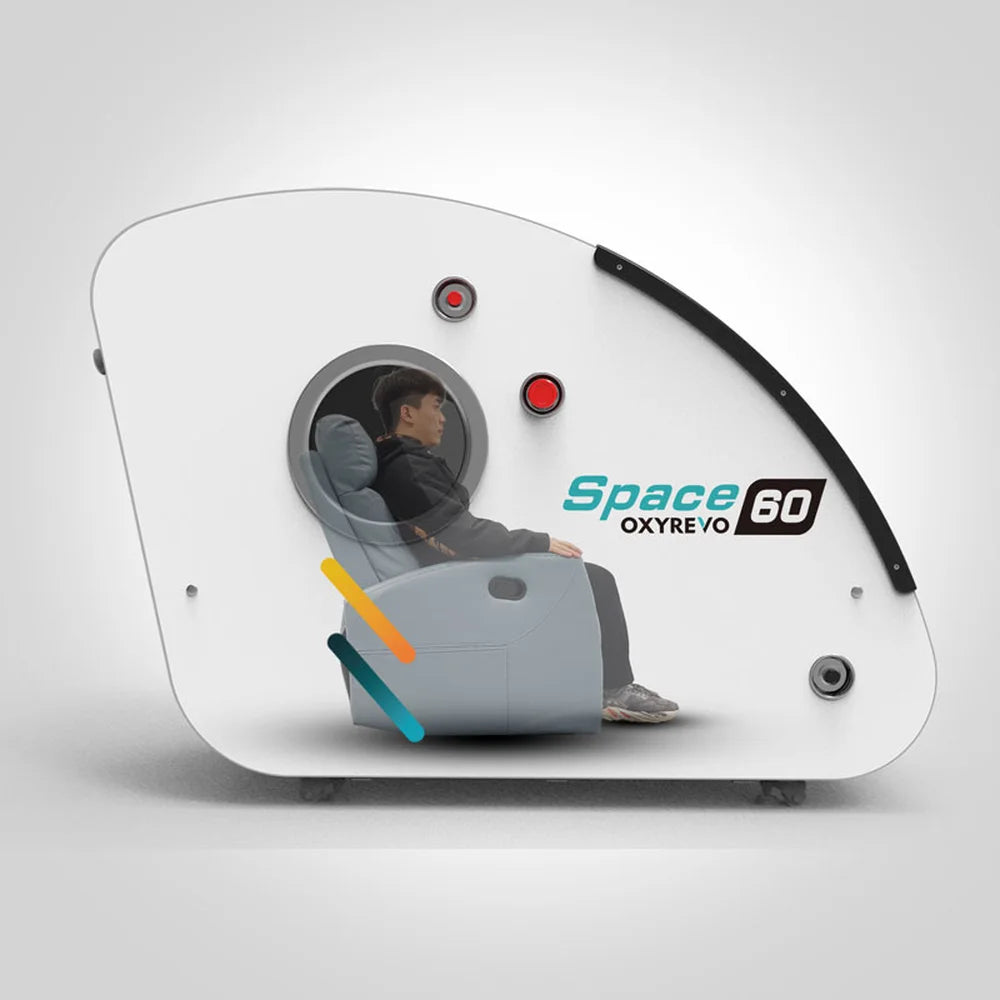

• Sitting mode for reading, working or watching something upright.
• Recline mode for lying back and sleeping through a longer protocol.

Every session also includes the full system: chamber with gauges, valves, panels, screens, communication phone, reading LED and wheels, plus the all-in-one operating machine holding an oil-free air compressor, a 10L oxygen concentrator at 90-97% purity, two cooling machines, the anion purifier, the nano sterilizer, the air filter and the water container. Accessories cover the folding chair, oxygen mask, spare filters, fuses, air and oxygen tubes and the power cable.

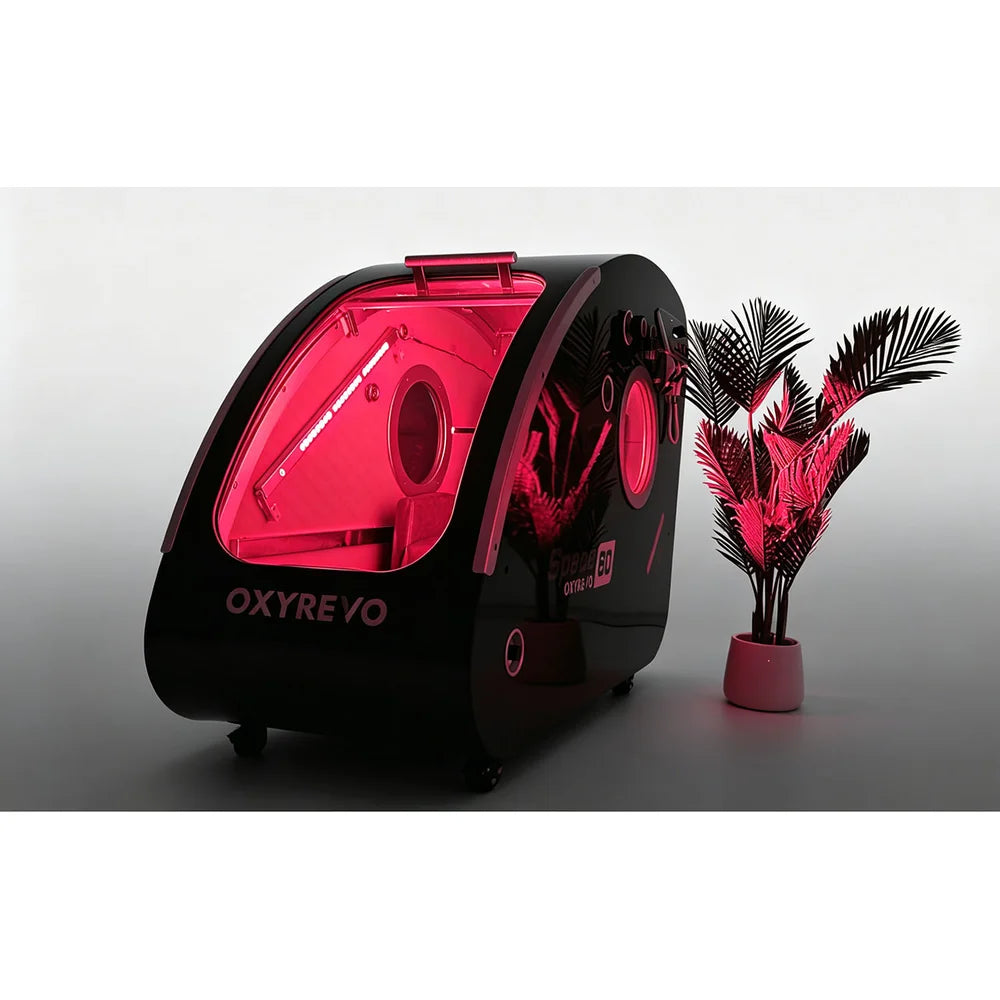

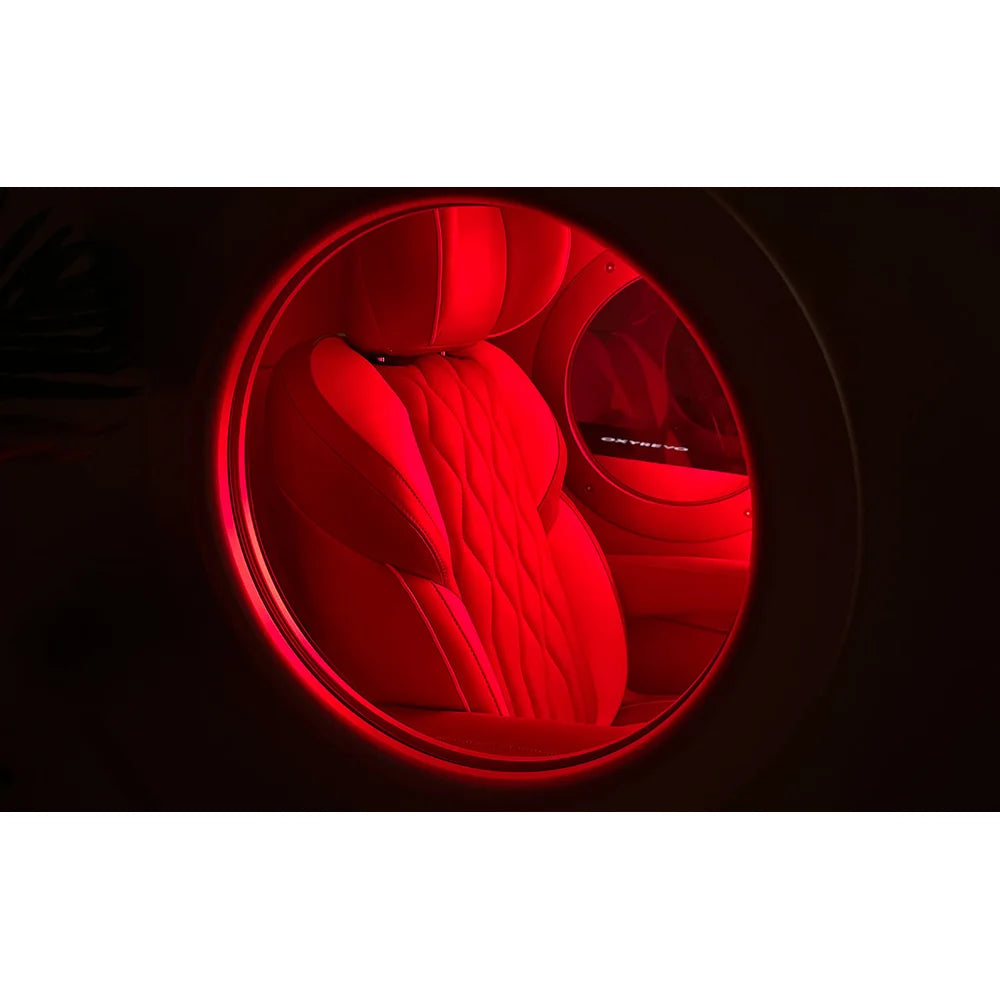

Add Red Light Therapy at 660nm and 850nm Inside the Cabin

An optional Red Light Therapy panel fits inside the chamber, so both therapies run in one session. The strip runs diagonally along the door panel and floods the cabin with red light, seen from outside through the round side porthole falling across the quilted leather seat and headrest. You get pressurized oxygen and red light at 660nm and near infrared at 850nm in the same session.

• Two sessions in one — pressurized oxygen and red light at the same time
• Post-workout recovery, since both therapies fit naturally into one recovery session.
• Gentle red glow — the panel adds warm red light while you rest under pressure
• Skin-care routine — red light for skin care, oxygen for your recovery routine
• Low voltage DC 24V with internal control safety, the power source staying outside and only shielded cabling entering through a specialised airtight porthole.

Water Chiller Air Conditioner for Serious Summer Comfort

For hot rooms and humid climates, the optional water chiller AC unit circulates chilled water through a heat exchanger and pushes consistent, refreshing airflow into the chamber. It stands alongside the chamber and its all-in-one operating unit as a compact white cabinet.

• Adjustable temperature range of -10°C to 20°C for precise cooling.
• R134A refrigerant, high-stability and eco-engineered with zero ozone depletion and lower energy consumption.
• Smart over-loading protection covering overcurrent, thermal and overvoltage, plus an intelligent time-delay mechanism that guards against power fluctuations.
• 110V/220V, whisper-quiet, low maintenance, plug-and-play operation with a press of a button.
• Compatible with all OXYREVO soft and hard hyperbaric oxygen chambers.

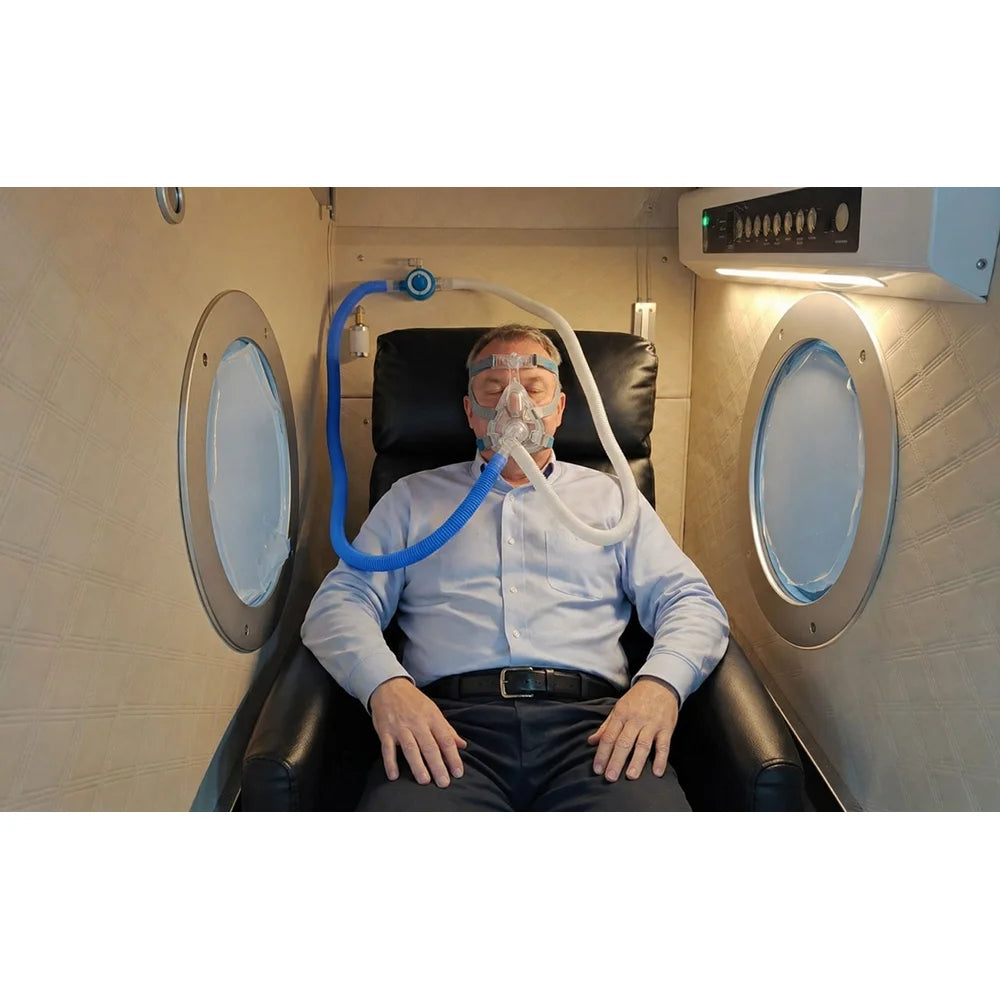

OmniBreath Dual-Logic BIBS Mask System With Two Breathing Modes

Users normally have to pick a breathing system before the session starts. The OmniBreath valve moves that choice inside, switching between two positions without disconnecting anything or pausing therapy. The valve mounts on the quilted white chamber wall with a blue rotary selector, a white corrugated hose, a silver filter canister, a transparent oxygen mask and a blue exhaust hose.

• Position A, Standard Mode, optimised for regular masks and suited to anyone who finds a fully sealed BIBS mask restrictive but still wants supplemental oxygen.
• Position B, BIBS Mode, engaging the professional BIBS system for maximum oxygen purity and efficient CO2 exhaust during intensive protocols.
• 90%-98% pure oxygen breathed directly, with exhaled CO2 expelled.
• Supplied with a 20L flow meter, water collector and medical PE filter.

If you add OmniBreath, we strongly recommend pairing it with the 20L oxygen concentrator all-in-one machine for more efficient, more comfortable breathing.

Upgrade to the 20L Oxygen Concentrator All-in-One Machine

Built specifically for this chamber, the 20L integrated concentrator delivers a larger, higher-purity oxygen supply while keeping everything in a single cabinet, so installation and daily operation stay simple. The OXYREVO-branded silver and black machine rolls on four caster wheels, with the flow meter and water collecting bottle on the front panel.

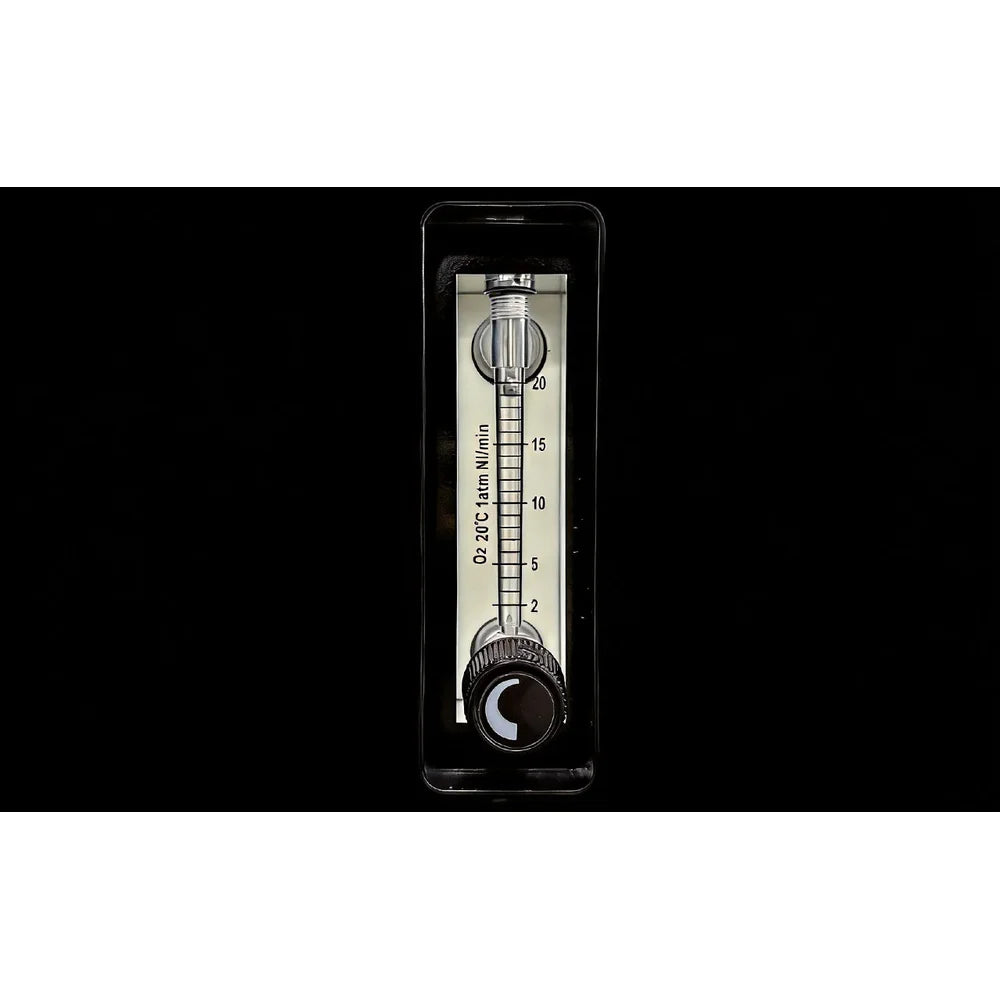

• 1-20L adjustable oxygen flow at 90%-98% purity, read on a clear tube flow meter scaled 2 to 20 Nl/min and labelled O2 20°C 1atm, with a silver adjustment knob at the base.
• Oxygen Boosting System holding a stable supply, where units without boosting drop around 50% of their flow once the chamber reaches full pressure at 2.0ATA.

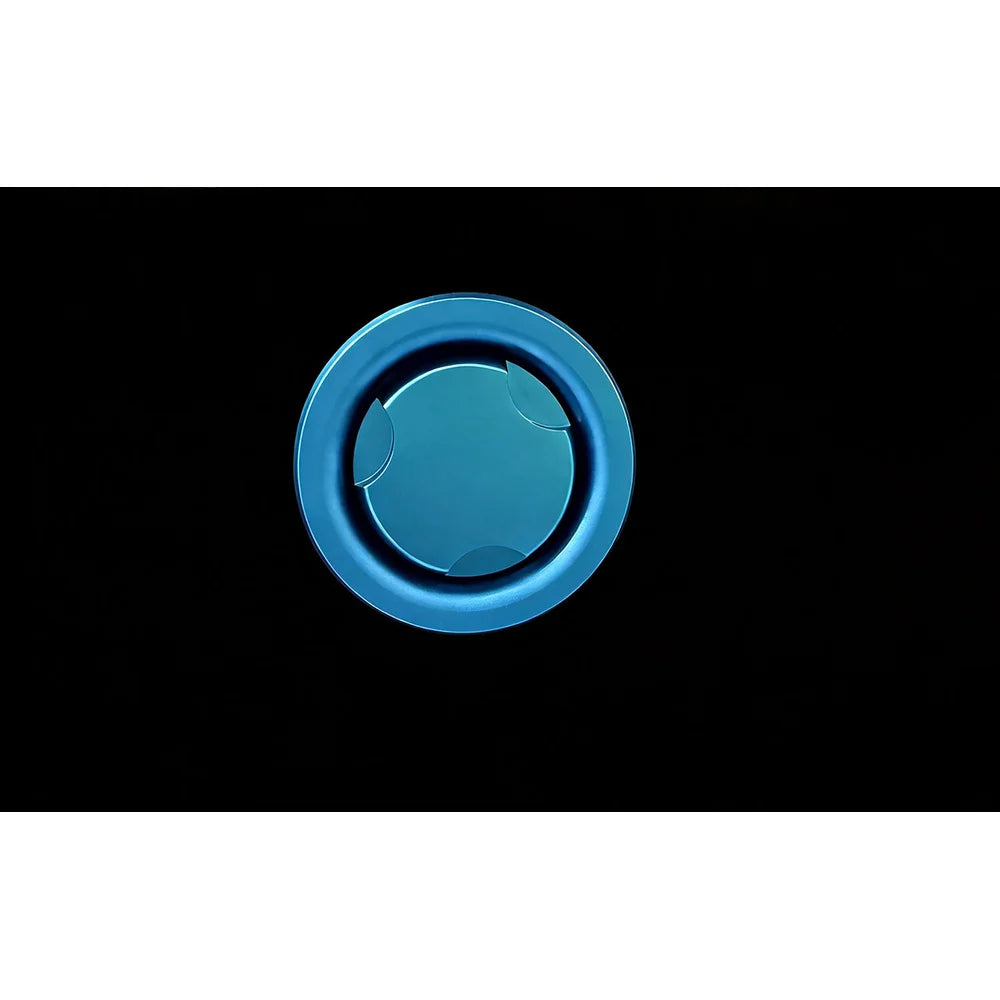

• PE Filter supporting cleaner air filtration, stable performance and longer system life, set in a circular blue port with three curved intake vanes.
• 110V/220V house power supply directly, with every machine you need to run the chamber housed in one all-in-one design.

TV Holder and Bluetooth Speaker Turn Sessions Into Downtime

Watch films, stream video, listen to music or follow guided meditation while you are pressurised. The entertainment kit keeps all of it safe and simple.

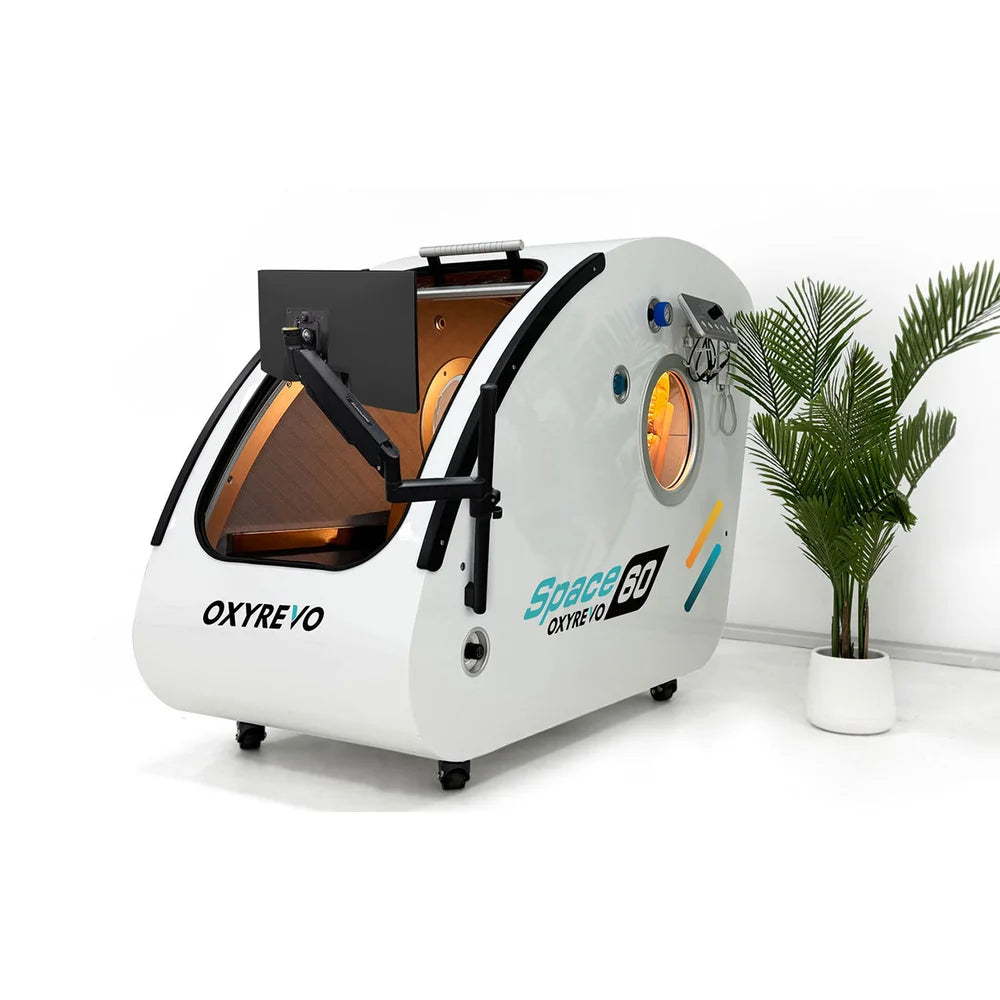

• Adjustable TV holder in solid aluminium, a stable and durable mounting structure that fits 20-28inch TVs and positions the screen at your ideal viewing angle.
• No alternating current inside, because the television and its AC components stay outside the shell rather than being placed in the chamber.

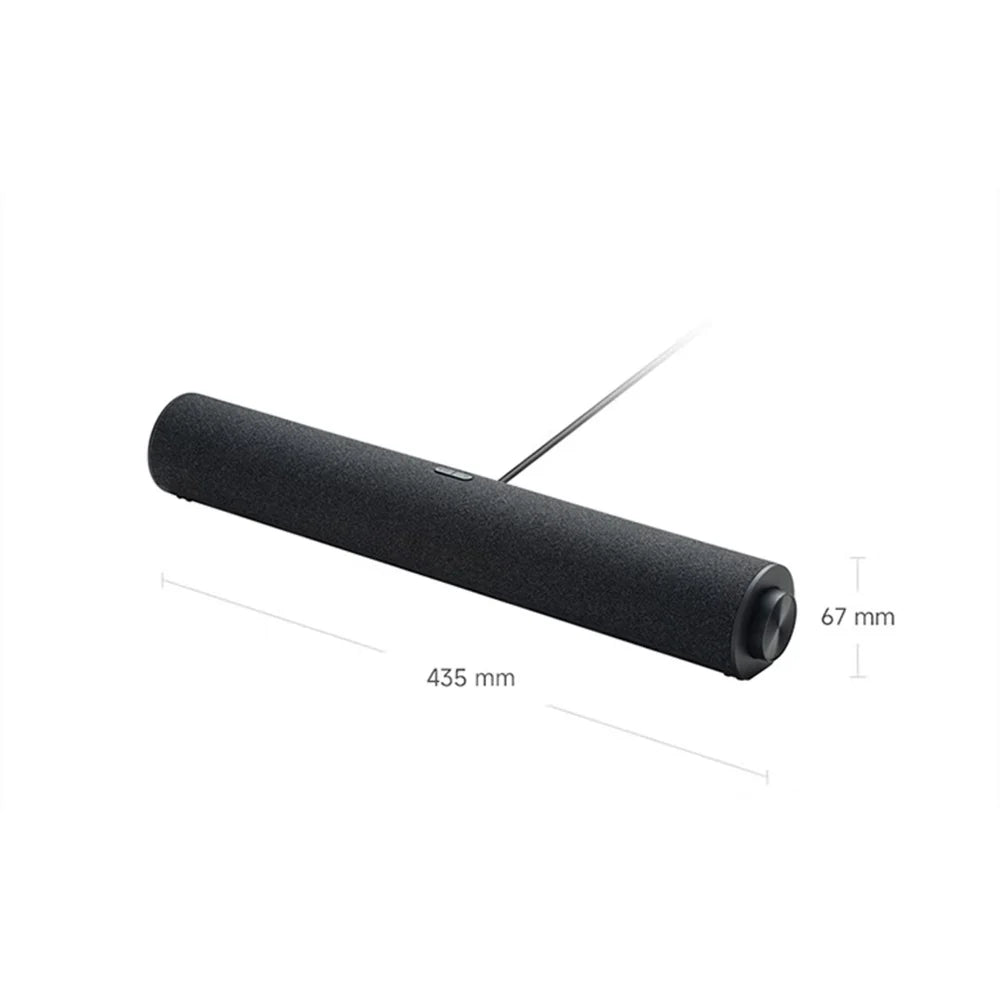

• USB-powered Bluetooth speaker with clear, immersive sound, wireless pairing to your phone or TV outside and colourful ambient lighting, a black fabric-covered bar measuring 435 mm long and 67 mm tall with an attached USB cable.
• Speaker mounting on the interior side rail beside the burgundy leather seat, next to the round window and fold-out tray, with the cabin lit in pink and red.
• No battery inside, avoiding rechargeable lithium cells in an oxygen-rich environment while giving continuous audio for the whole session.

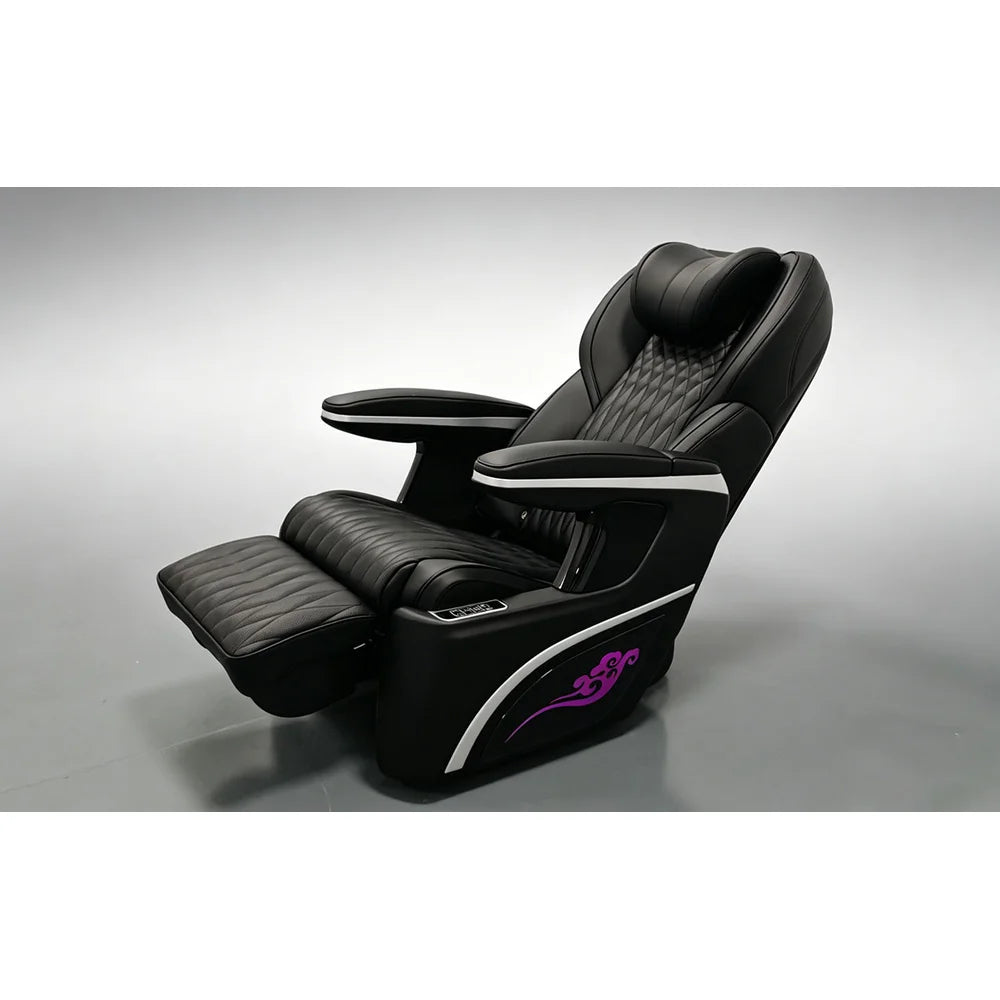

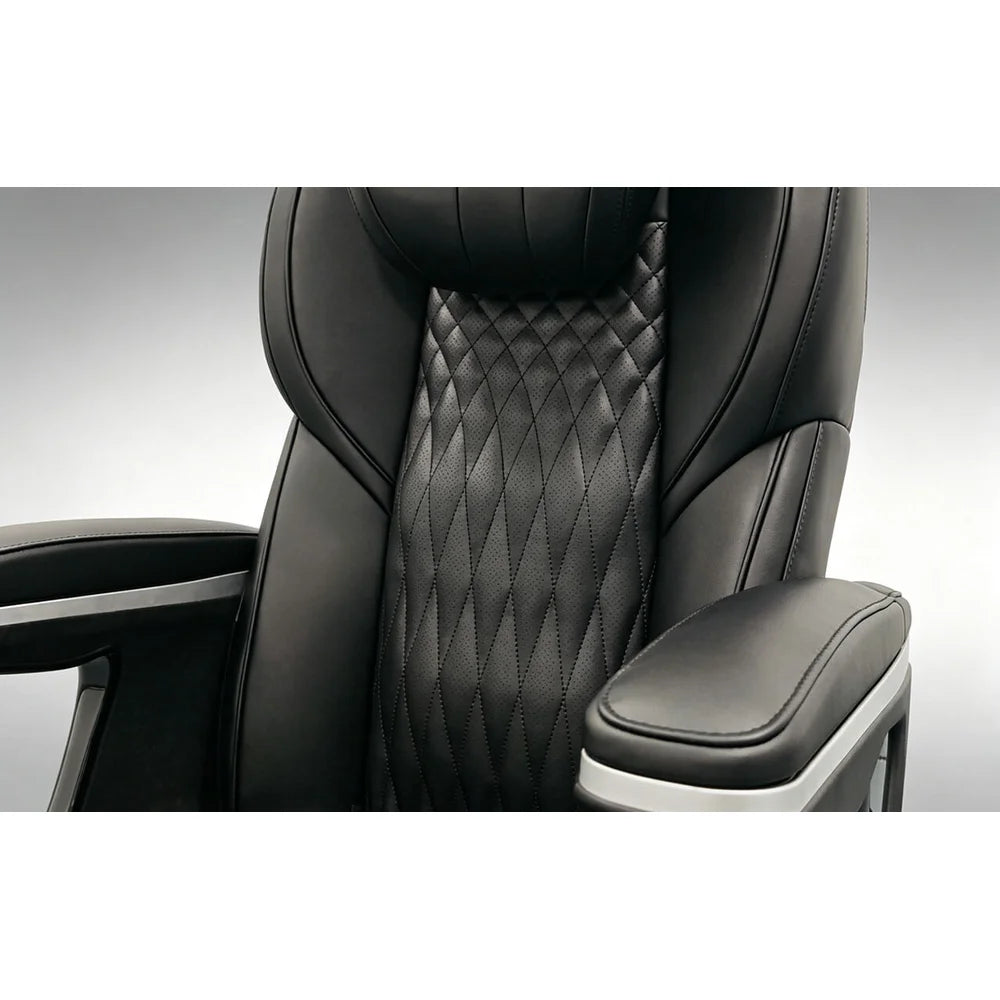

Luxury Multi-Function Power Chair With Massage, Heating and Ventilation

Swap the folding chair for a Nappa leather power chair built specifically for this chamber, running on a 12V power supply with an intelligent control panel and easy in-and-out handling. The black leather build shows a perforated diamond-quilted massage panel in the backrest, stitched headrest detail and padded armrests, a coloured side emblem in purple or green, and its control keypad set at the chair base.

• Seat and backrest adjustable through multiple seating angles, plus an adjustable headrest, so you can settle into your own relaxation position, right through to a fully reclined zero gravity mode with the leg support extended.
• Smooth forward and backward movement inside the chamber, making entry and exit far easier for elderly users or anyone with limited mobility.
• Advanced back massage with built-in intelligent massage functions for added comfort and relaxation during your session.
• 3 levels of seat ventilation and heating to stay comfortable in any climate.

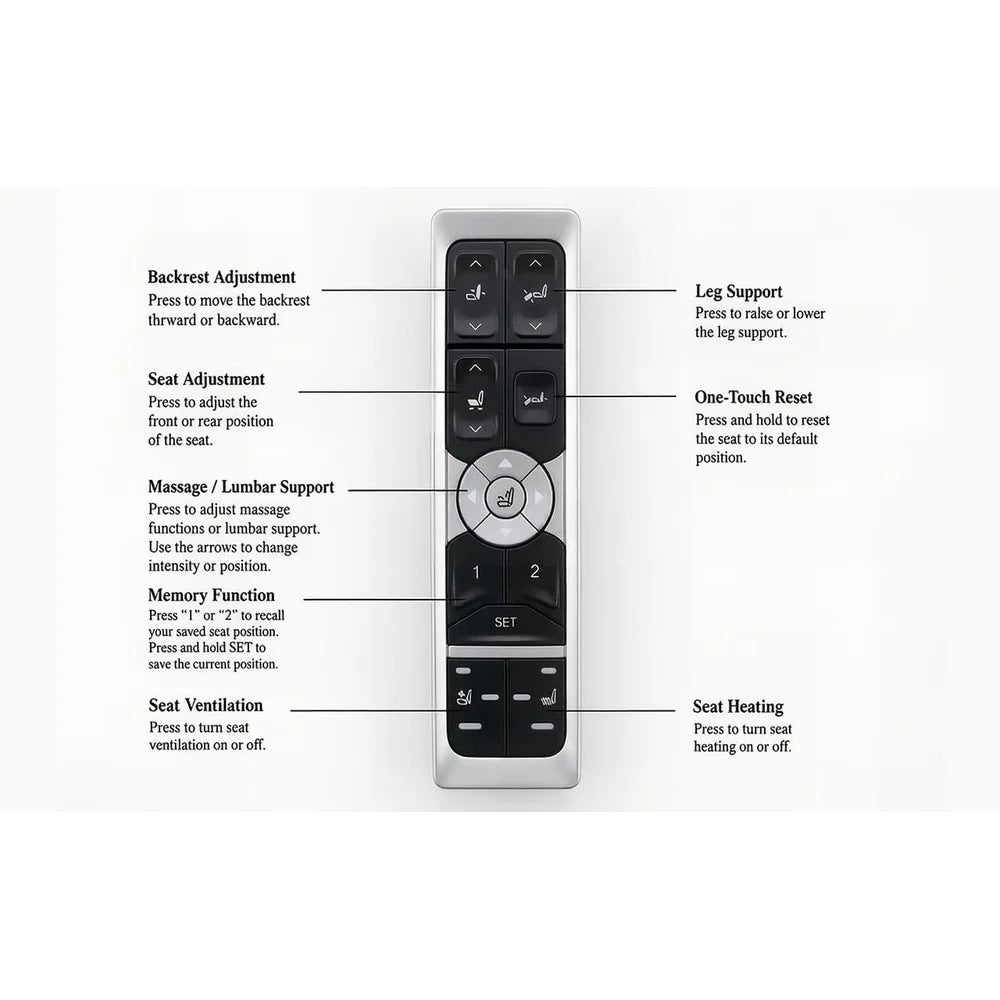

• Ambient LED lighting and a keypad covering adjustment, massage, ventilation, heating, one-touch reset, lumbar support and memory function.

Commercial Placement

Clinics, therapy centres and recovery studios get a chamber a client can operate with minimal staff attention, freshen the cabin between bookings with the nano sterilizer, and dress in a colour that matches the room, with interior power chair upholstery shown in Beige, White and Black.

Planning for Commercial Use

Every facility is different. Session pricing, client volume, staffing, and operating costs all vary, so we don't publish revenue or payback estimates. If you're adding this equipment to a clinic, studio, spa, or gym, call us at (855) 975-6272 and we'll help you plan space, power, installation, and support.
