OxyRevo Space60 Pro Hyperbaric Chamber 2.0 ATA Hard Shell Sitting

Sit Up, Stretch Out, and Breathe Easy in the OXYREVO Space60 Pro Hyperbaric Oxygen Chamber

The OxyRevo Space60 Pro is a 2.0 ATA hard shell sitting hyperbaric chamber with a stainless steel cabin. Tired of lying flat in a cramped tube, squinting at a tiny window while you wait out your session? Sit upright or recline inside a hard stainless steel cabin with 2.0 ATA working pressure, oversized transparent windows at both ends, and a big clear door that puts an end to that boxed-in feeling. You control everything from the touch screen inside or outside, breathe 90-97% pure oxygen from the built-in 10L concentrator, and step out feeling like you spent the hour in a lounge chair instead of a capsule. Home wellness room or busy commercial HBOT center, this one is built for daily use.

• Sitting or reclining posture: a hard stainless steel cabin lets you sit upright or recline with a premium folding chair, no more lying flat in a cramped tube.
• Higher pressure: 2.0 ATA working pressure, adjustable across 10 steps from 1.1 to 2.0ATA for gradual acclimation or varied protocols.
• Open, airy visibility: oversized transparent windows at both ends plus a big clear door remove the boxed-in feeling common in soft chambers.
• Durable build: Stainless Steel 304 shell welded from three thicknesses, reinforced with an aluminum ring, resistant to bending over years of use.
• Self-operated control: touch screen panels inside and outside display temperature, humidity, oxygen purity, and dual pressure readings, so no assistant is required.
• Pure oxygen supply: 90-97% pure oxygen from the built-in 10L concentrator, with an optional 20L system for higher flow at full pressure.
• Sleep-safe protection: a power failure system releases pressure automatically and drops the door if power cuts out, plus a smart door sensor lock and a 30 second emergency valve.
• Clean, comfortable air: an electric cooling system removes humidity with zero maintenance, alongside an anion generator and nano water sterilizer.
• Complete system included: chamber, all-in-one operating unit, folding chair, mask, filters, fuses, tubes, and power cable, ready to connect with no special installation process.
• Optional upgrades available: Red Light Therapy, water chiller air conditioning, the OmniBreath dual-mask system, a 20L concentrator, TV and Bluetooth entertainment, and a luxury power chair, so the setup fits your needs.
• Color and finish choices: chamber finishes and chair upholstery come in multiple options, including OEM custom painting on request.

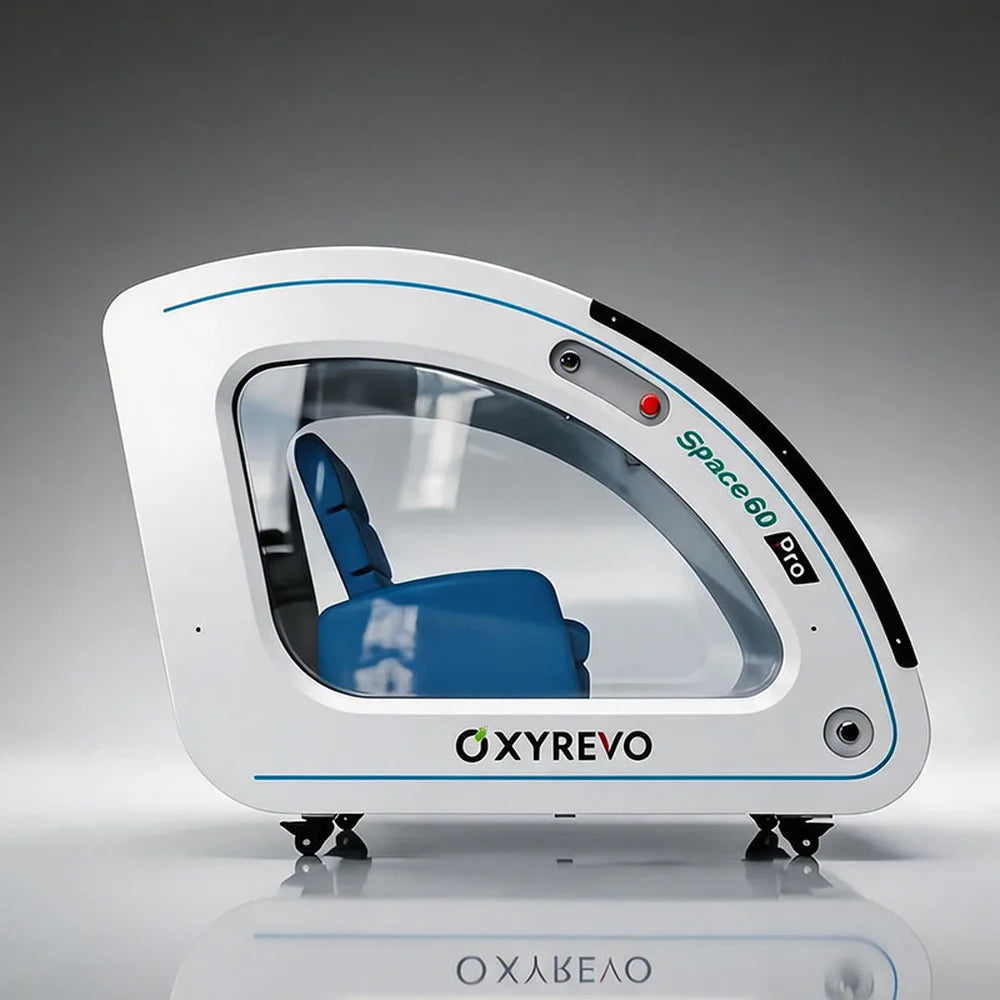

Hard Stainless Steel Shell Engineered for 2.0 ATA Sessions

Pressure performance starts with the tank itself. The chamber body is welded from three pieces of stainless steel 304 in different thicknesses, giving higher strength where the structure needs it most and reducing bending risk over years of pressure cycles.

• 2.0 ATA working pressure, adjustable in 10 steps
• Stainless Steel 304 chamber construction, solid and durable
• Polycarbonate windows from Bayer, aviation-grade and double-layered
• New advanced welding and splicing process that mates metal to polycarbonate precisely
• Aluminum reinforcement ring on the outside so the shell stays firm, clean-looking, and free from deformation
• 4 solid wheels at the bottom to reposition the 800Kg/1760Lbs tank

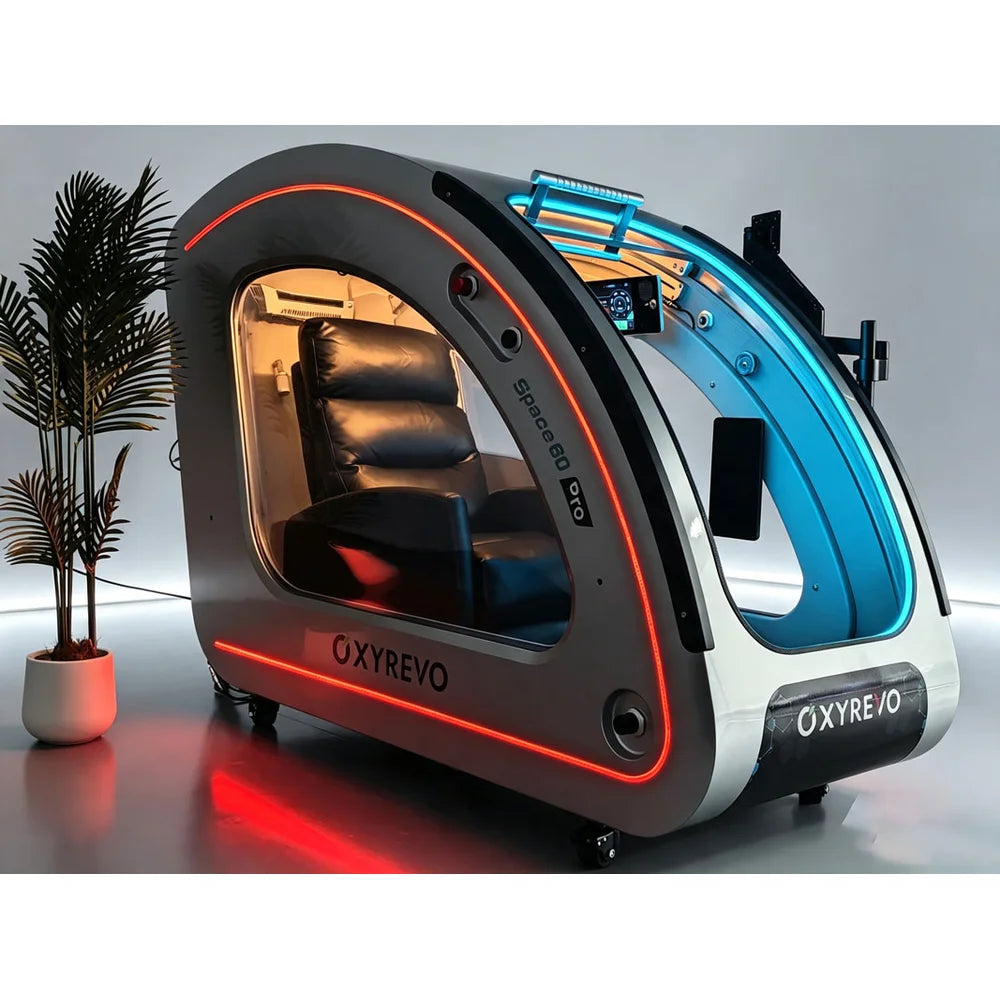

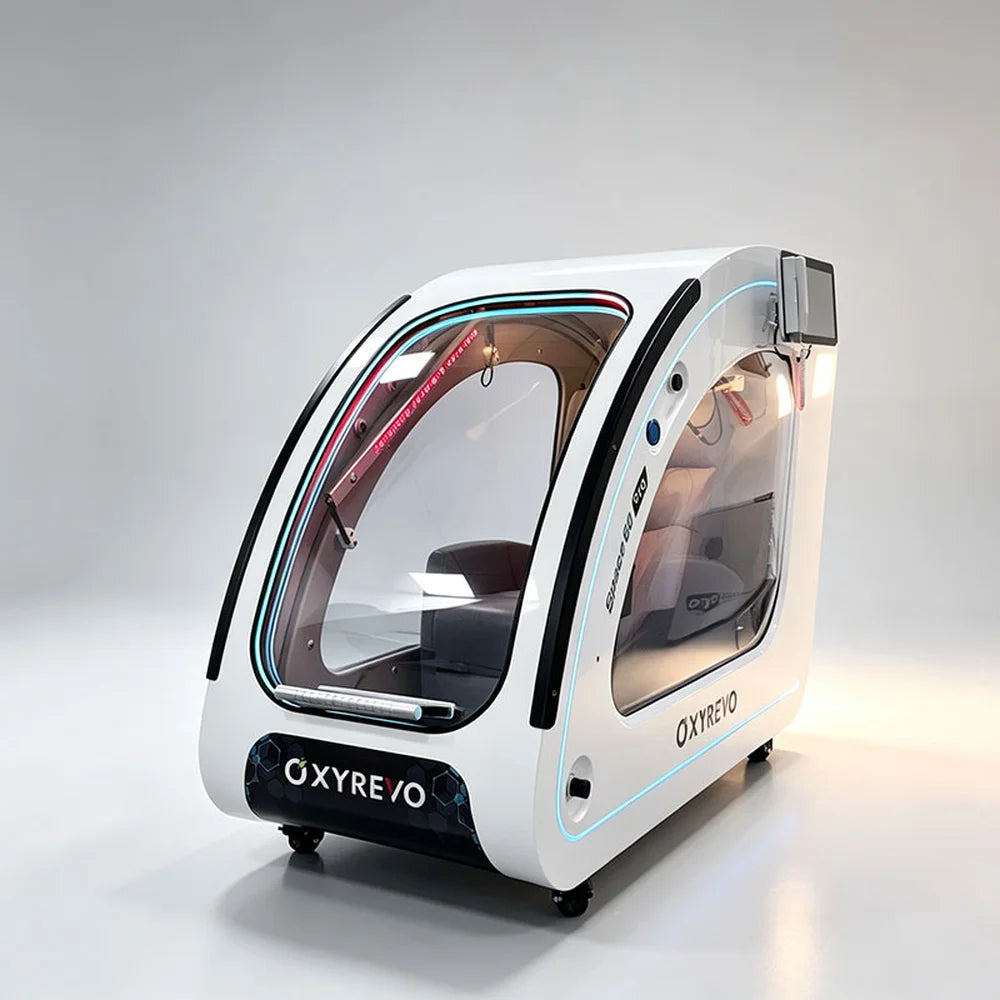

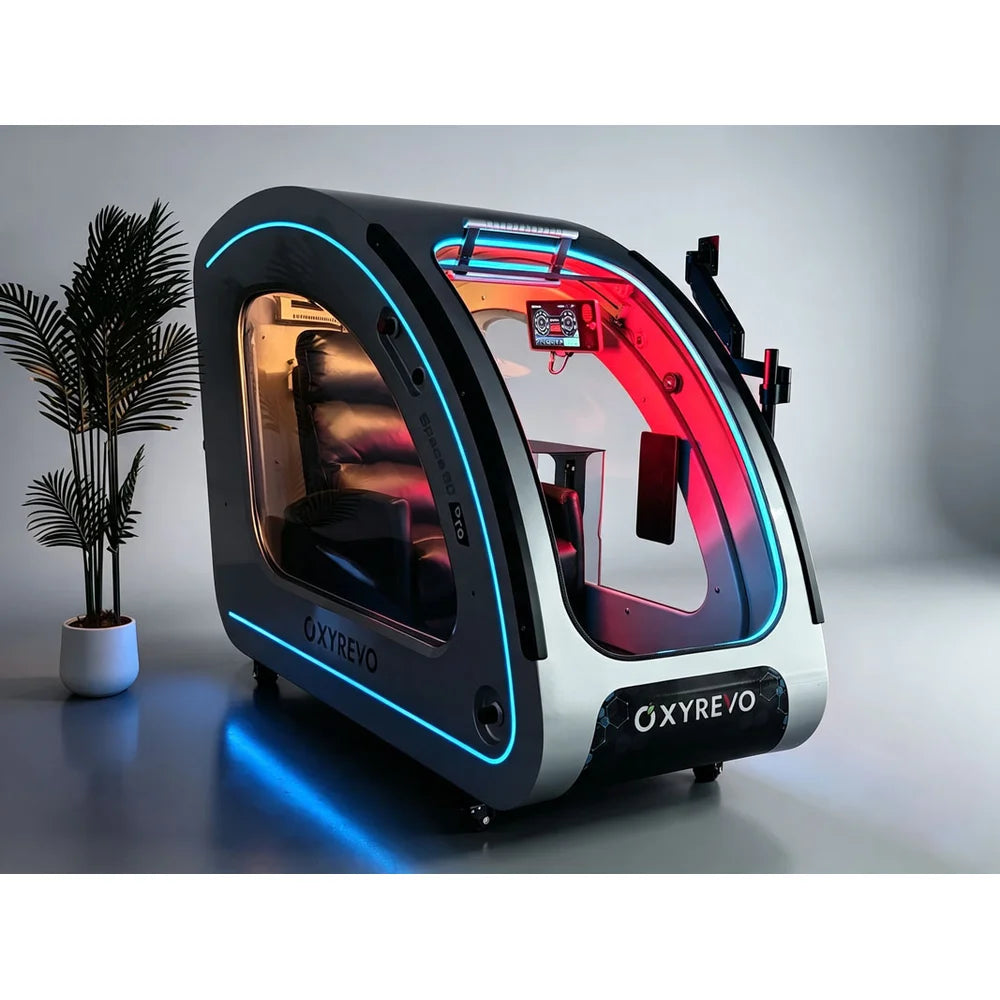

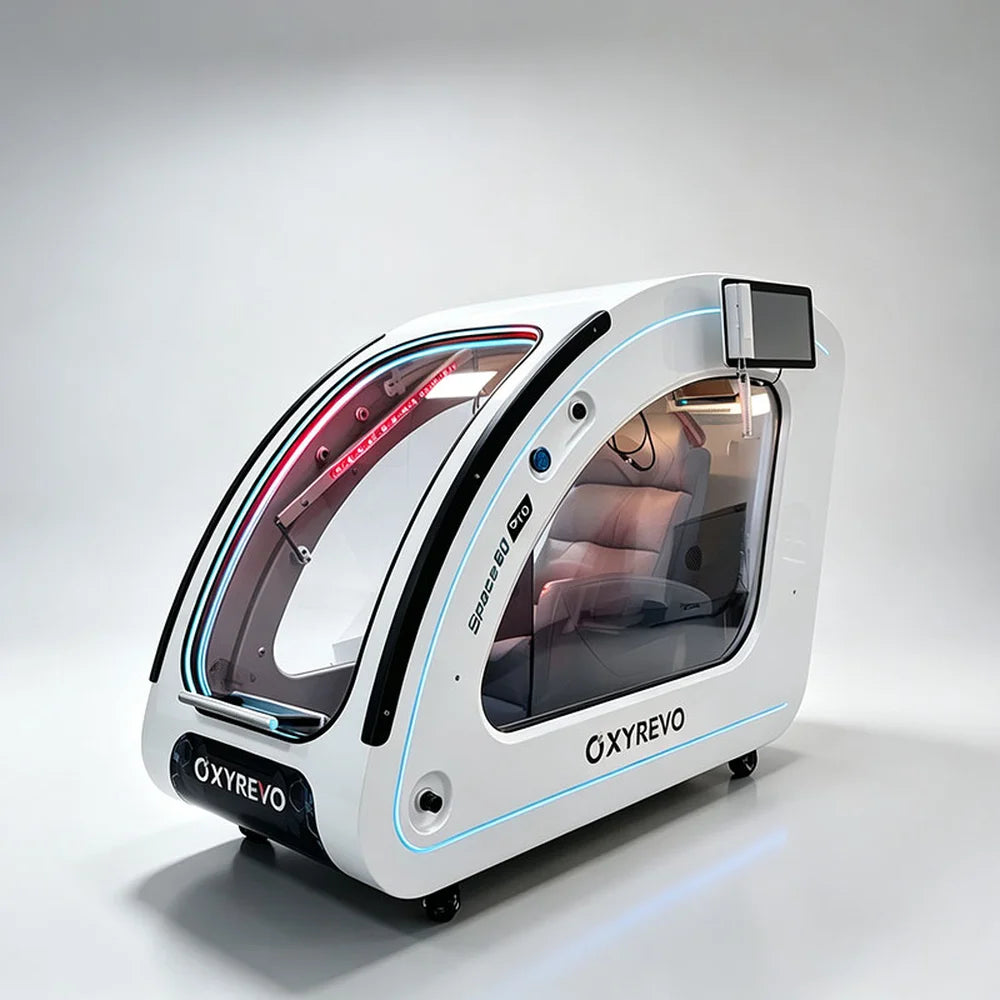

Two Large Transparent Windows for a More Open Feel

Two big transparent windows sit at the head and foot ends, and the door itself is transparent. The field of view opens up in both directions, so you can see out and your attendant can see in. Round portholes and cyan door seal lighting framing the opening finish the look, and with the recliner's quilted upholstery inside the cabin reads more lounge than laboratory. For anyone who has abandoned a session in a narrow soft chamber, that visibility changes the whole experience.

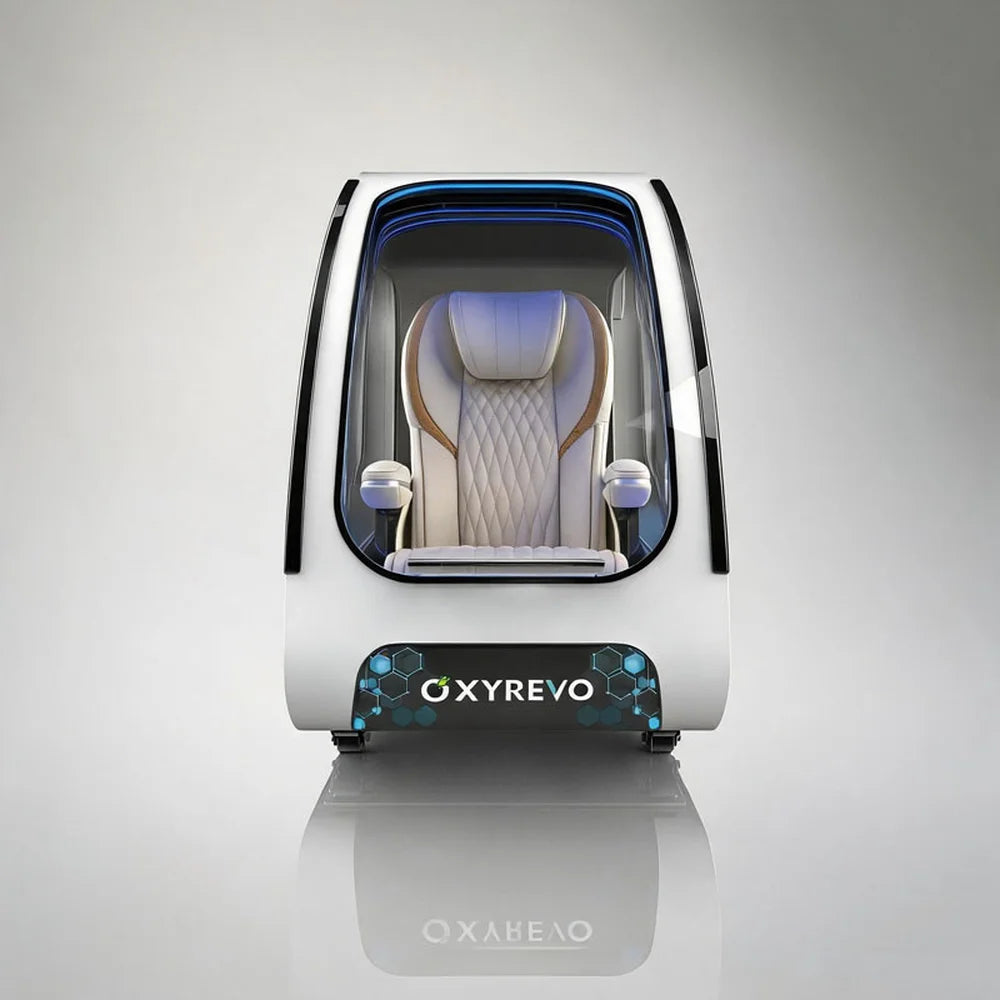

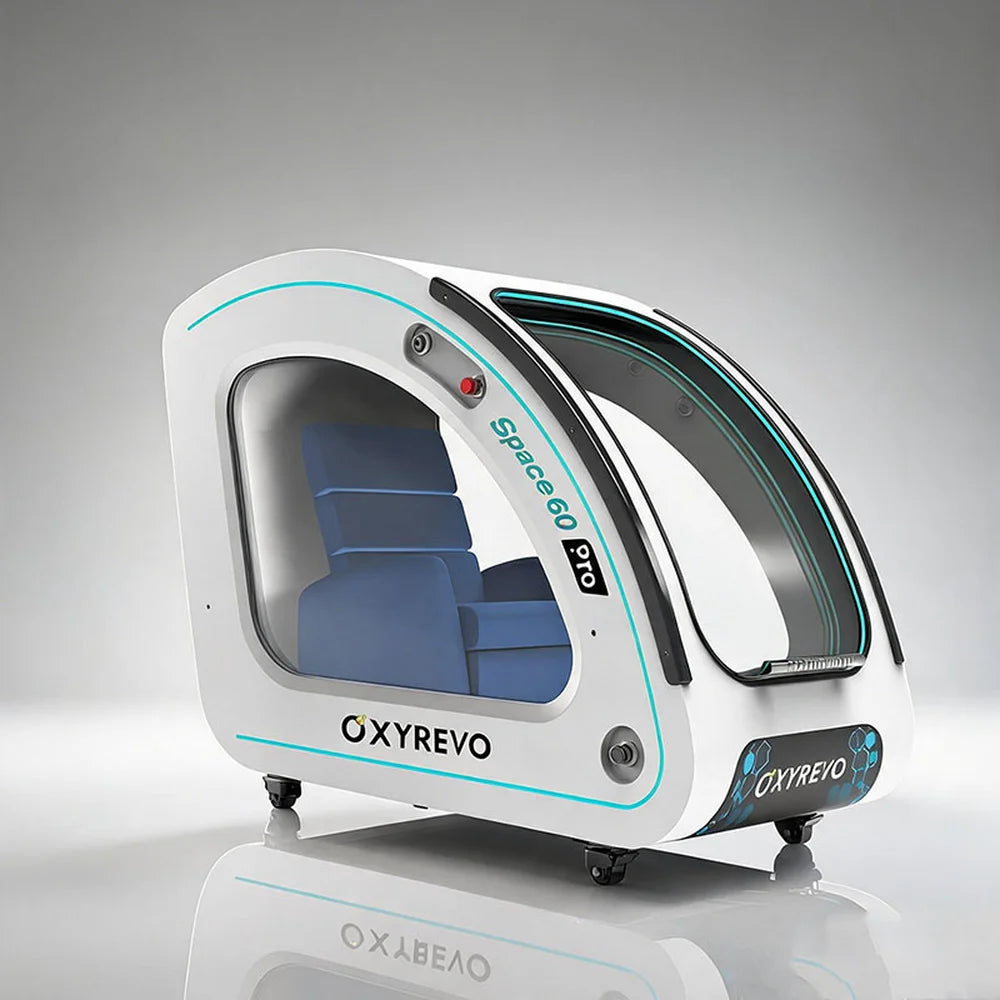

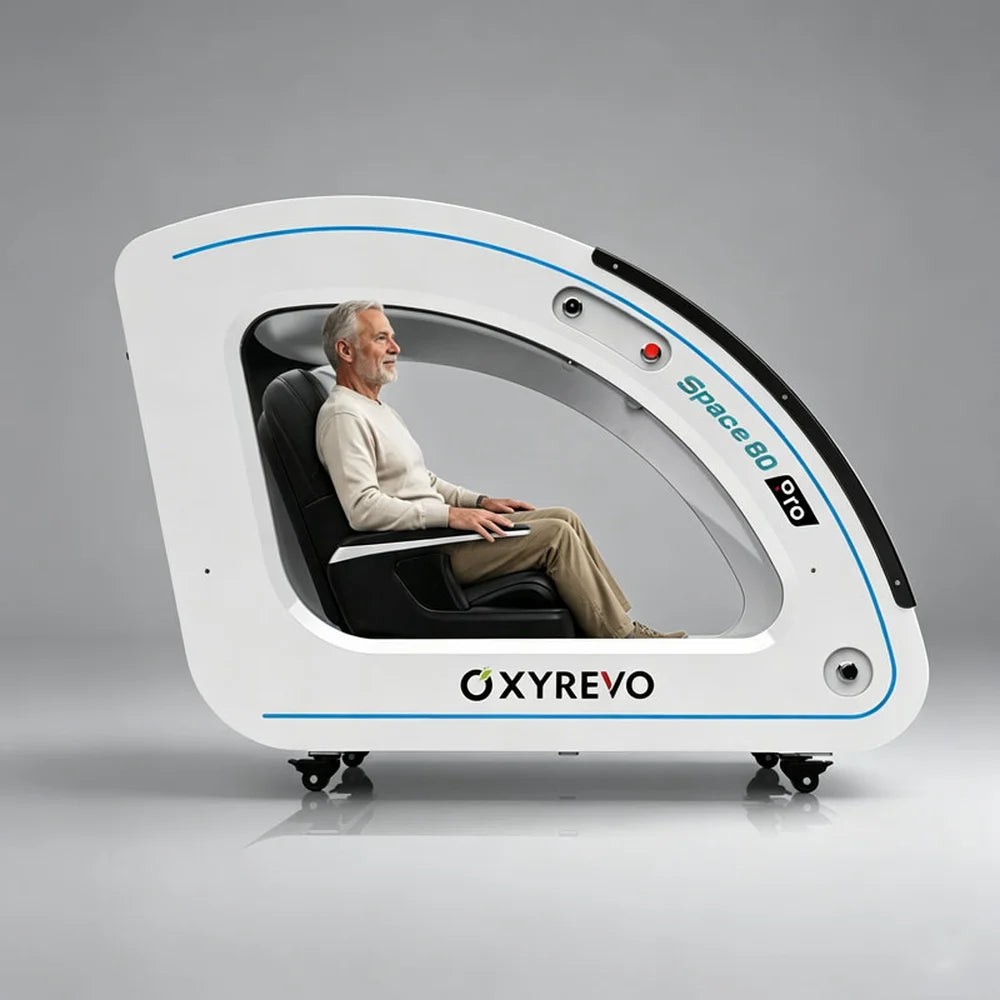

Sitting Mode and Recline Mode in One Cabin

A premium folding chair comes with the chamber, and it gives you two genuine postures rather than one compromise. Sit upright to read or work through your session, or drop into recline mode with your legs extended out along the footrest when you would rather nap. A swing-out tray inside the cabin keeps a drink or a tablet within reach. The cabin measures 210cm/83inches long and 153cm/60inches high, so there is real headroom above you either way.

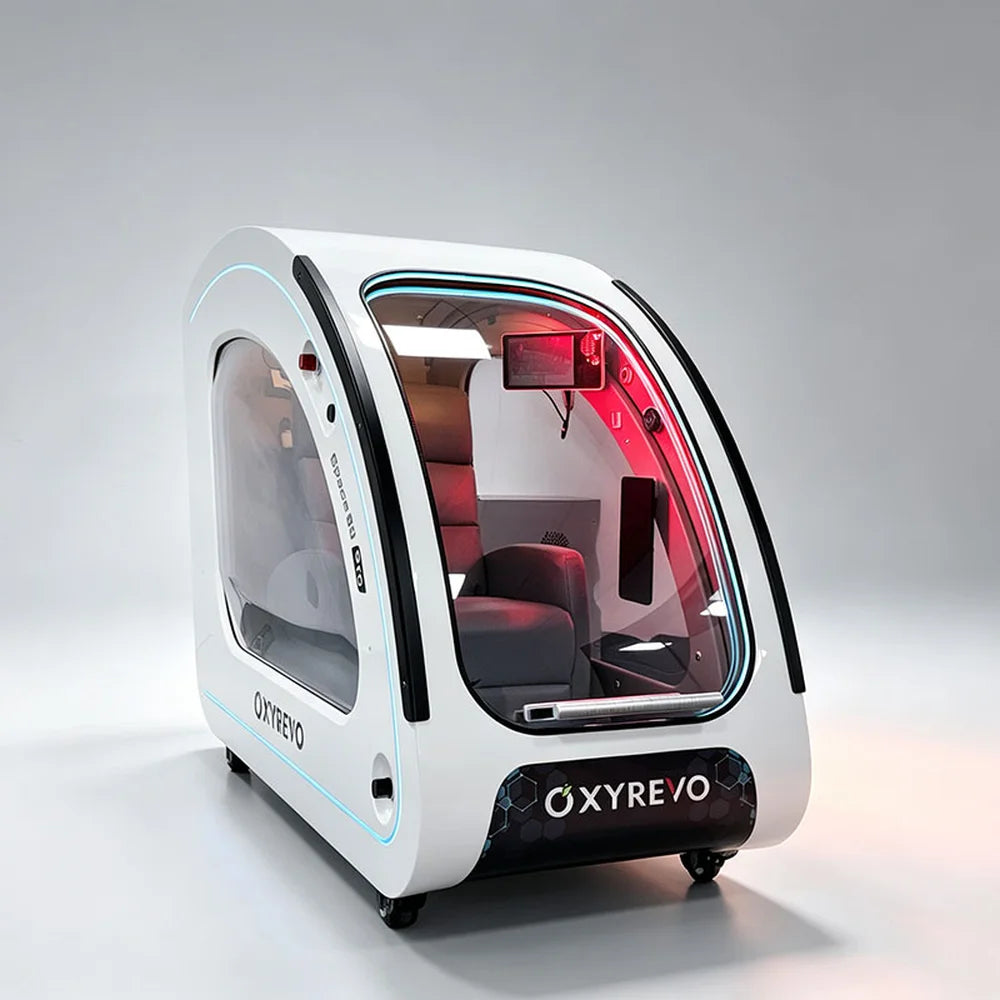

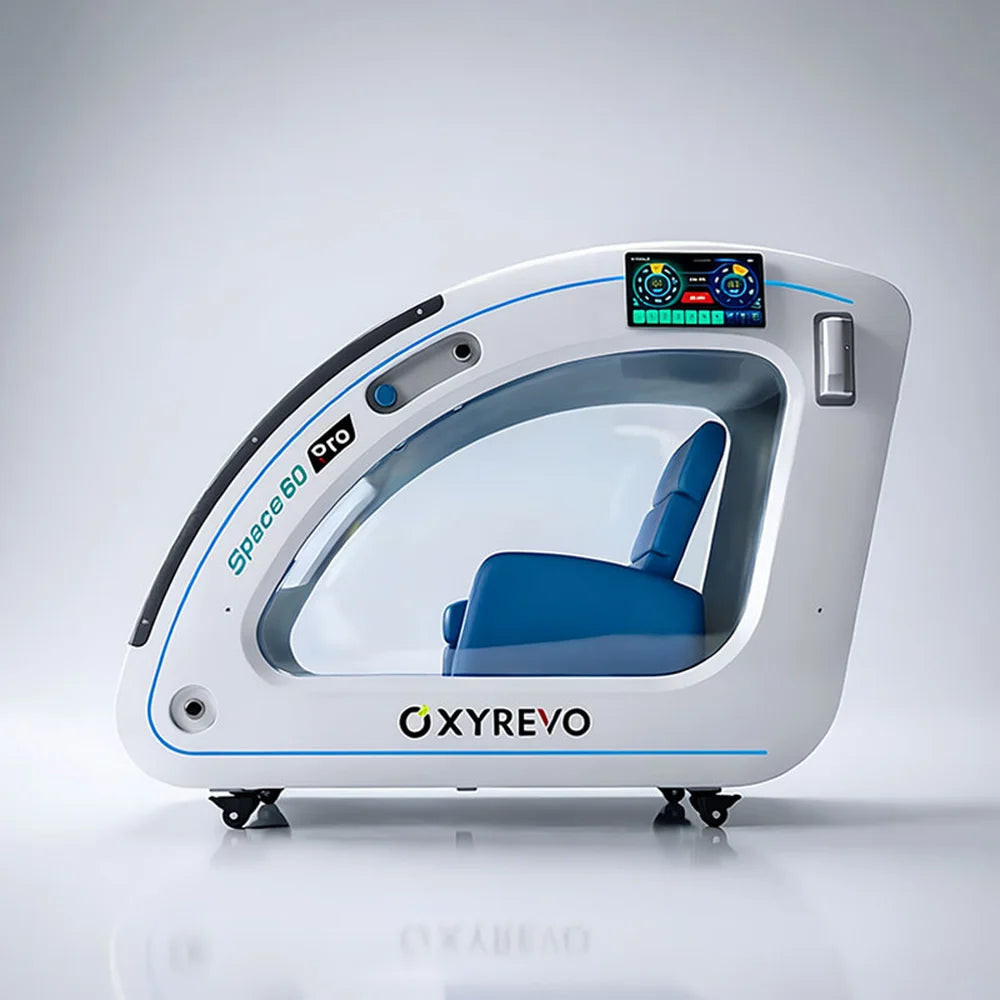

Touch Screen Control Inside and Outside

Every hard chamber in the range carries two control panels, one inside and one outside, which means you can run a session completely on your own. The external touch screen sits on its own arm mounted to the all-in-one operating machine, at standing height right beside the chamber. No helper standing by, no guessing.

• Dual digital display screens showing temperature, humidity, and oxygen purity from a high-precision sensor
• Dual pressure display with internal and external gauges readable at any moment
• Inside and outside deflate valves plus pressure relief valves
• 0-120 minute automatic timing system
• Phone and speaker communication inside and outside, with a handset phone mounted on the side of the shell for easy conversation
• LED reading light designed to be easy on the eyes

Ten Pressure Steps From 1.1 to 2.0 ATA

The touch screen lets you select working pressure across 10 settings with one press: 1.1/1.2/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0ATA. New users can begin low and climb gradually as they acclimate, and clinics can match different protocols per client without fighting the equipment.

Safety Systems That Work When You Are Asleep

Fall asleep at pressure and nothing goes wrong. The power failure safety system releases pressure automatically and slowly if the power cuts out, then the door drops down on its own once pressure has equalized.

• Smart door sensor lock that blocks operation unless the door is fully closed, with indicator lights inside and outside
• Emergency valve for quick pressure release in 30 seconds
• Pressure relief valves as standard

Cooling, Purification, and Sterilization Built Into the OXYREVO Space60 Pro Oxygen Chamber

Pressurized cabins get warm and humid. The efficient air cooling system pulls humidity out and cools the air, delivering dry, clean, comfortable air through summer sessions. It runs electrically, so there is no ice water, no Freon, and zero maintenance.

Air quality gets the same attention. An anion generator and a water nano sterilizer help keep the cabin air fresh, which matters for studios running back-to-back clients.

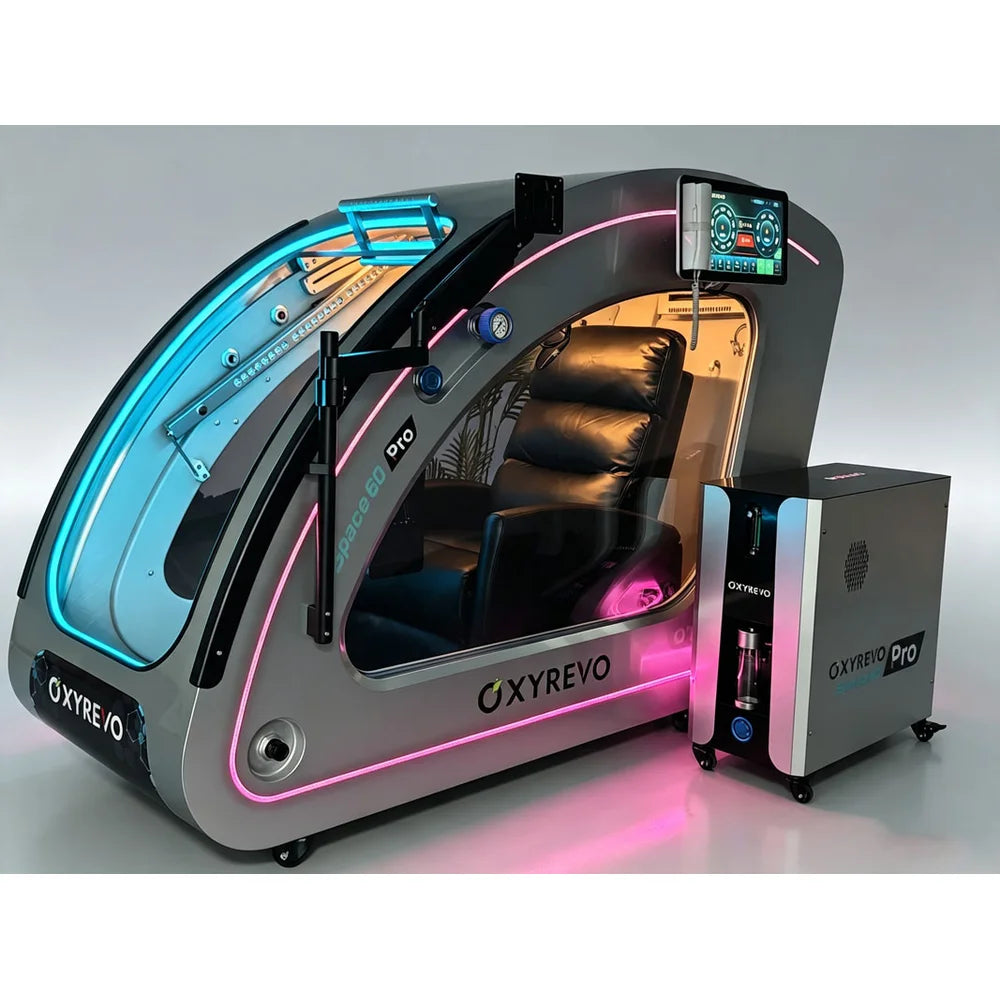

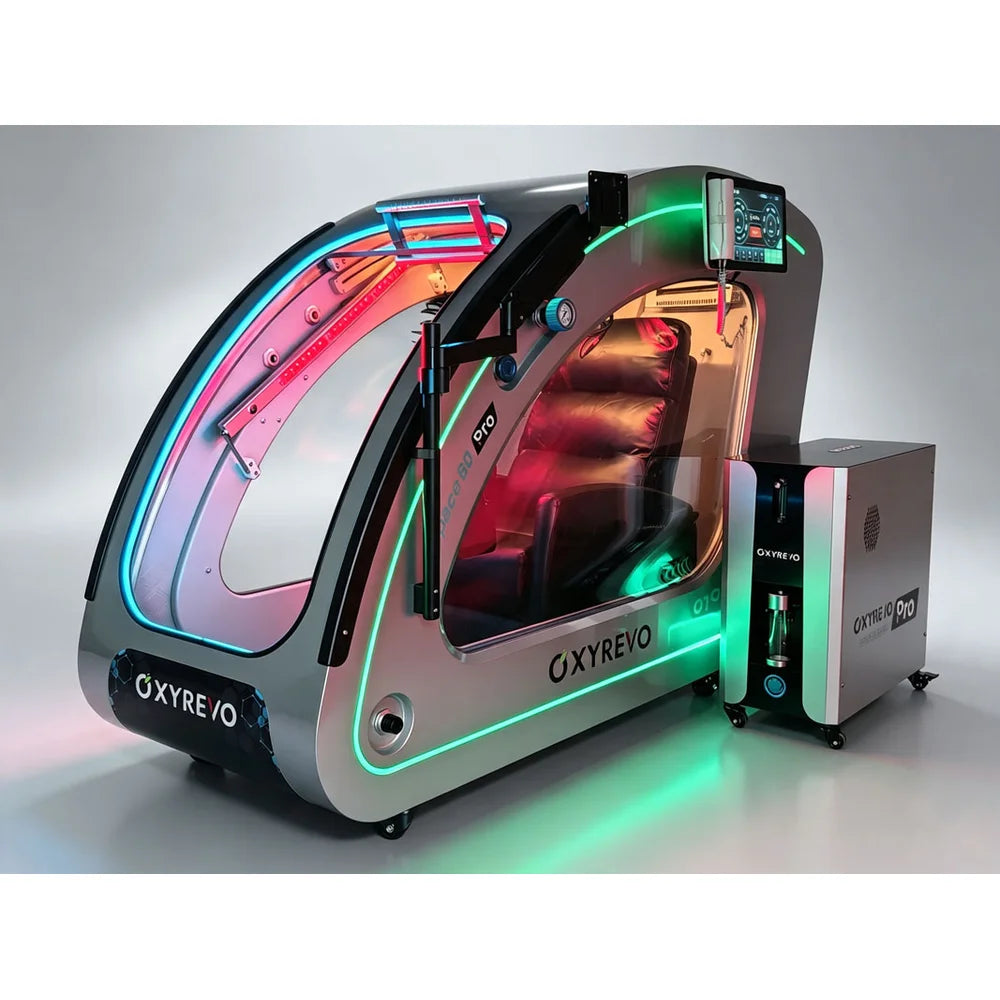

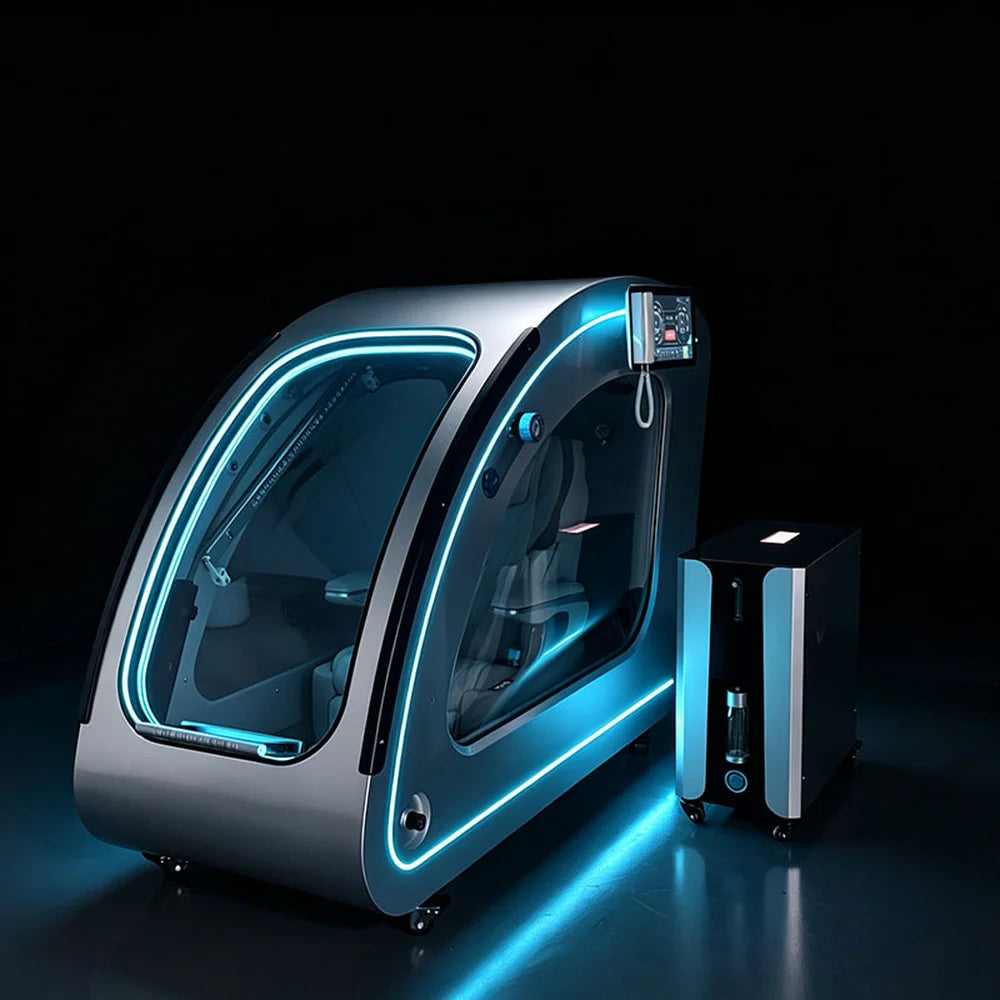

Everything in the Complete OXYREVO Space60 Pro 2.0 ATA Hyperbaric Chamber System

One delivery, one setup, nothing else to source. The all-in-one operating unit machine houses the whole support system in a single wheeled cabinet:

• 1x oil-free air compressor
• 1x 10L oxygen concentrator delivering 90-97% pure oxygen
• 2x cooling machines
• Anion air purifier
• Nano air sterilizer

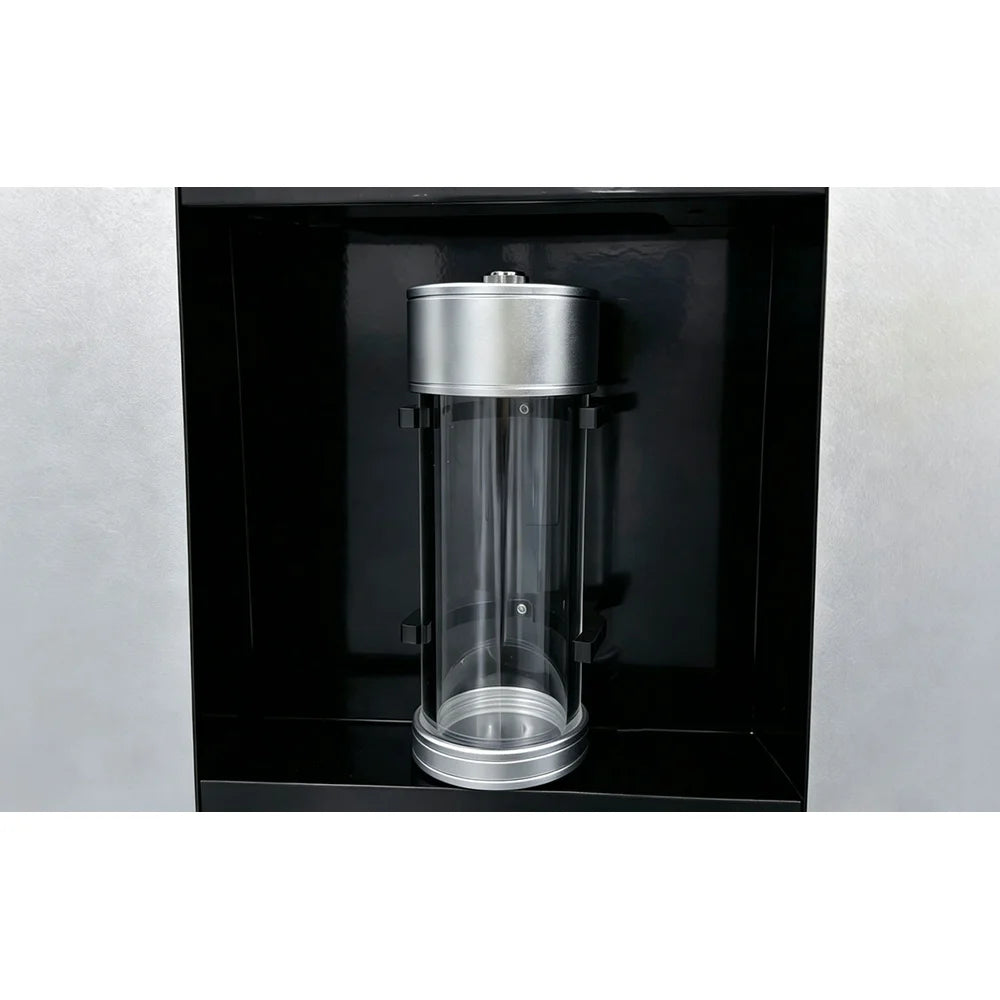

• Air filter and humidity water container, a transparent cylindrical bottle with silver end caps seated in its own black bay in the machine for easy checking and emptying
• Illuminated oxygen flow meter on the front column, a glass rotameter tube scaled from 2 to 20 NL/min with the adjustment knob below it

Accessories in the box: the premium folding chair for sitting or reclining, an oxygen mask, spare filters and fuses, plus air and oxygen tubes and a power cable. Installation is a matter of connecting the wires and tubes from the operating unit to the chamber tank, with no special process required.

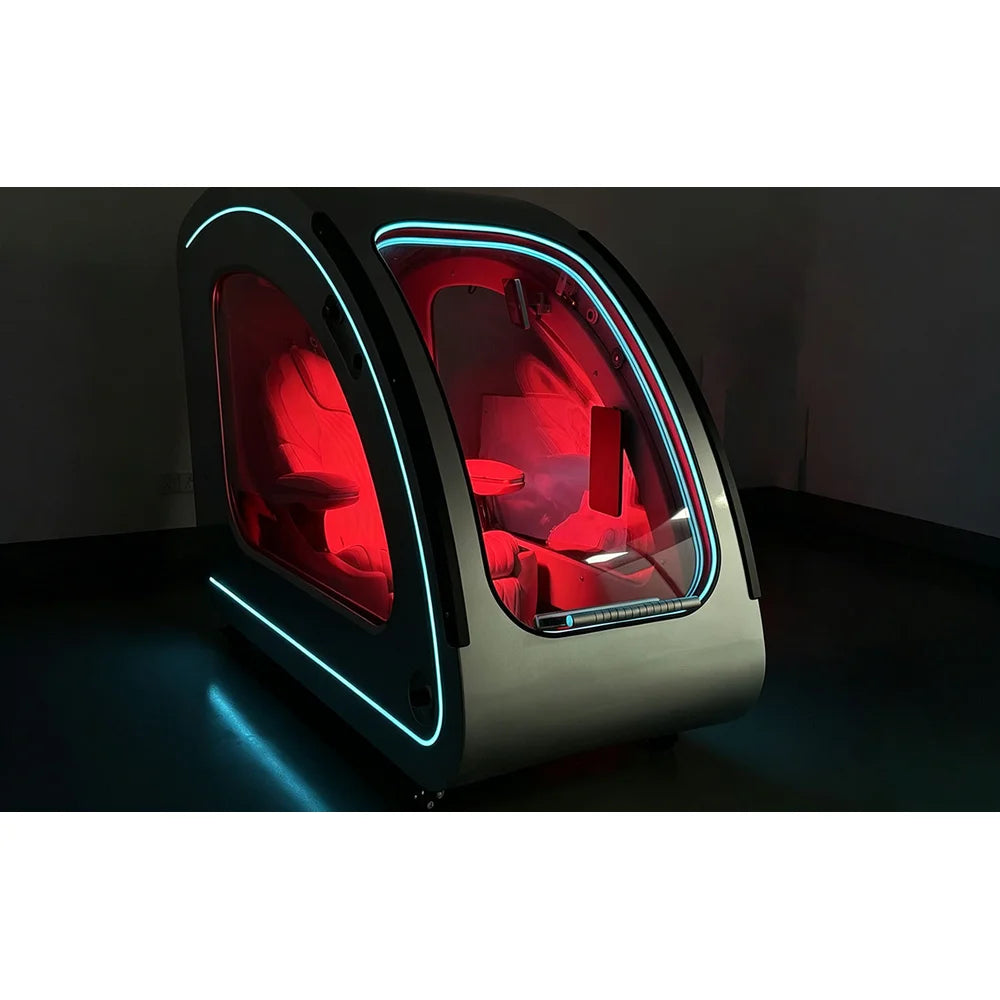

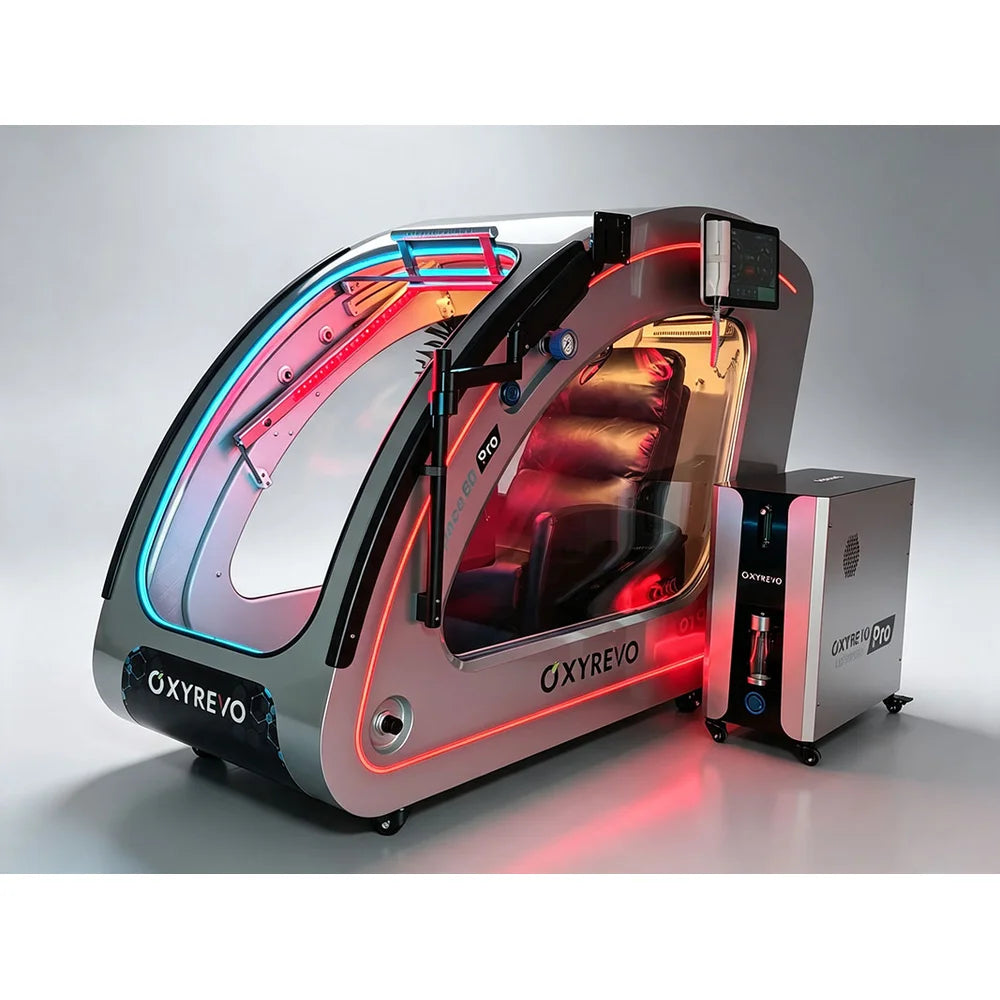

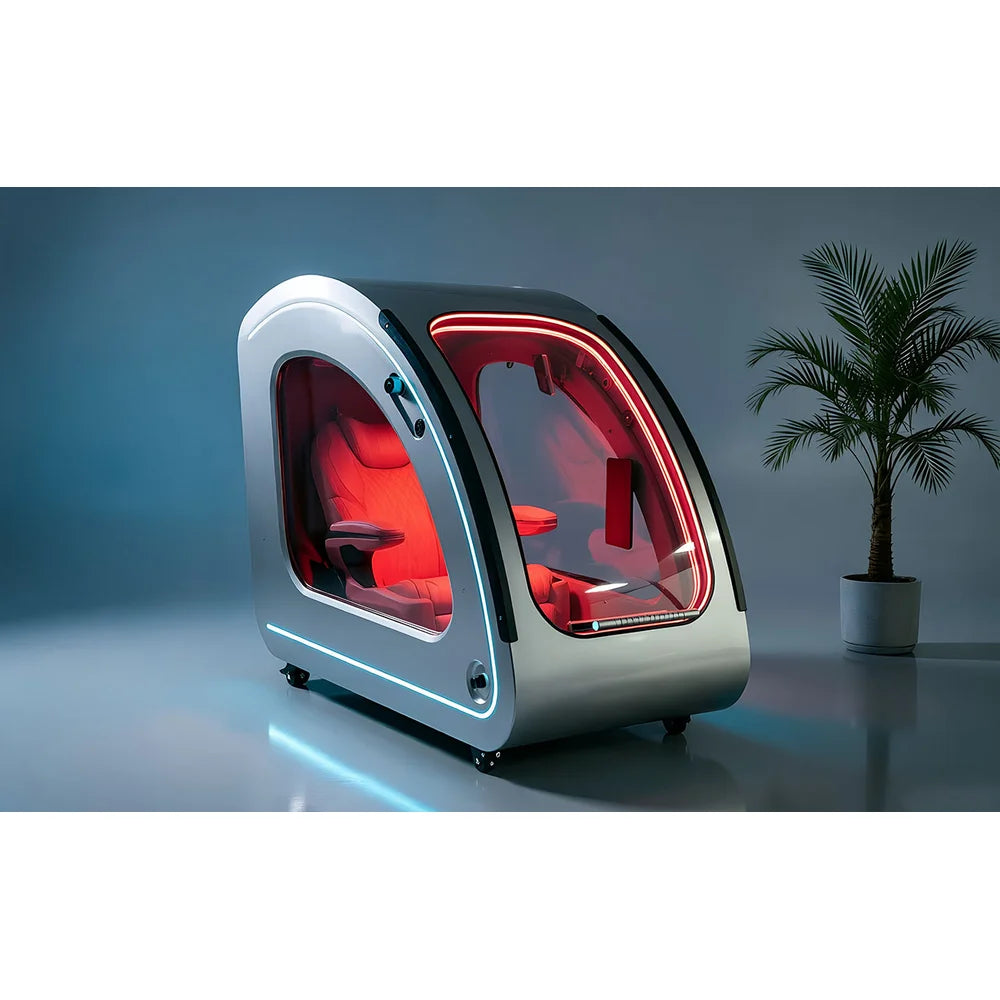

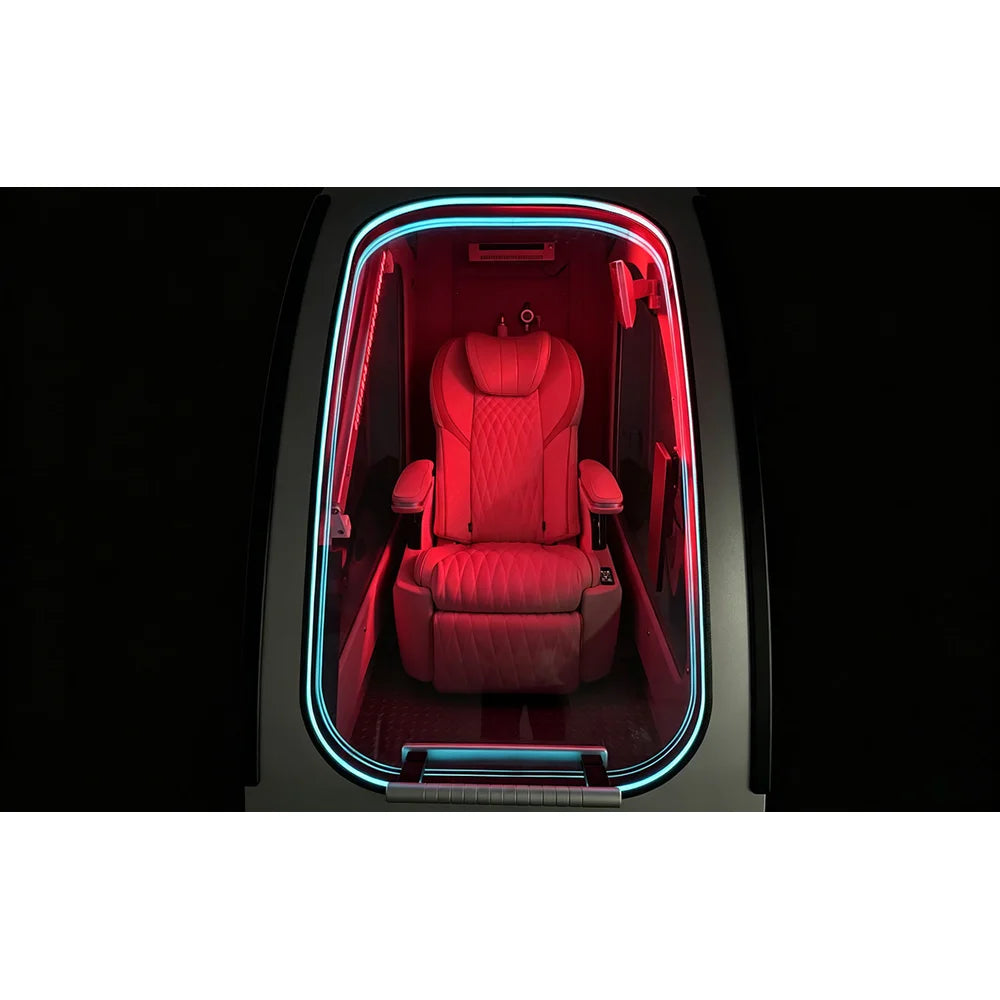

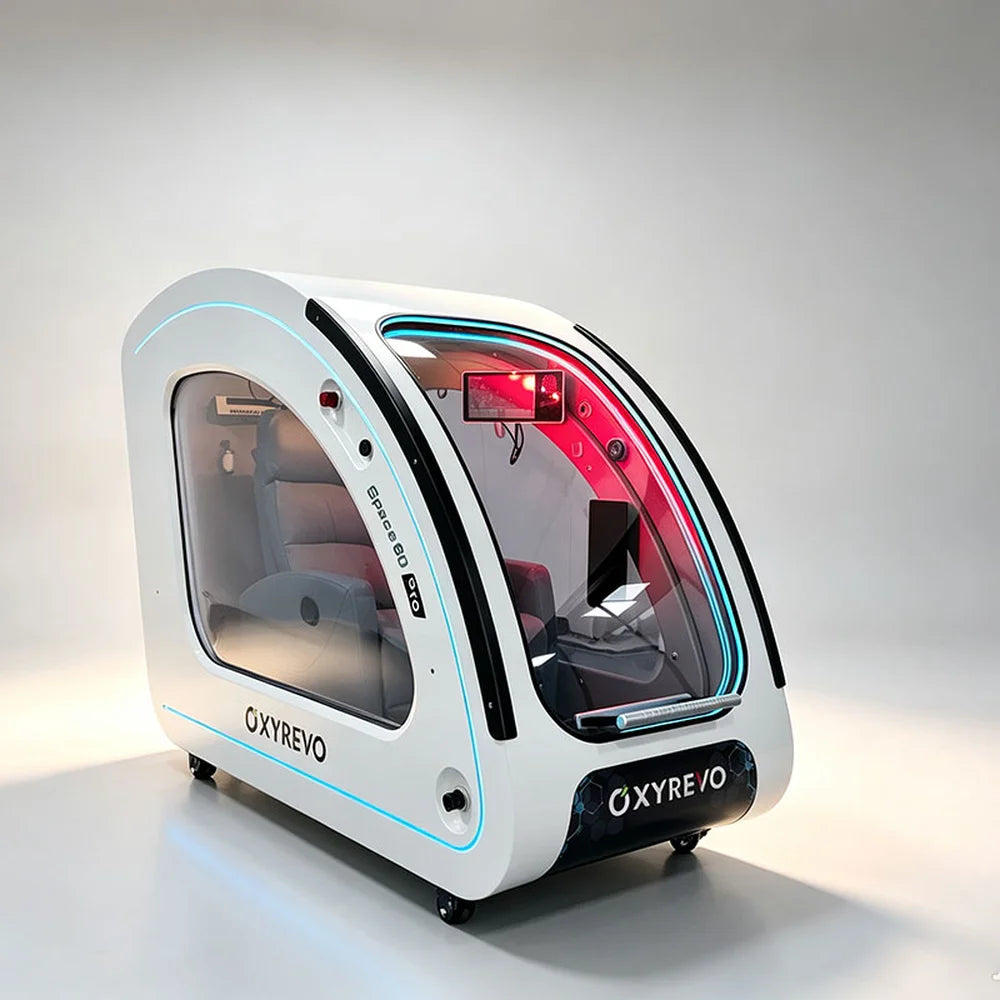

Add Red Light Therapy Inside the Chamber

An optional Red Light Therapy panel mounts inside the cabin as a curved LED strip set above the seat, so both therapies run in the same session and the light washes down over you. You get pressurized oxygen and red light at 660nm and near-infrared at 850nm in the same session.

• Two sessions in one — pressurized oxygen and red light at the same time
• One routine, with both running in the same session
• Gentle red glow — the panel adds warm red light while you rest under pressure
• Skin-care routine — red light for skin care, oxygen for your wellness routine
• Low voltage DC 24V with internal control safety, the power source stays outside the chamber and only shielded cabling passes through a dedicated airtight porthole

Recommended session length is 10 to 20 minutes.

Water Chiller Air Conditioner for Serious Summer Comfort

In humid climates or peak summer, add the optional water chiller AC system. Chilled water circulates through a heat exchanger to push consistent, refreshing airflow into the pressurized cabin. The unit is a compact white cabinet, noticeably smaller than the tall oxygen concentrator cabinet it stands beside, and it links to the chamber with a pair of hoses.

• Adjustable temperature range of -10°C to 20°C
• 110V/220V operation, push-and-plug installation
• R134A refrigerant for high cooling efficiency, lower energy consumption, and zero ozone depletion
• Smart over-loading protection against overcurrent, thermal, and overvoltage events, with intelligent time-delay protection
• Whisper-quiet operation and low maintenance

It is plug-and-play compatible with all OXYREVO soft and hard hyperbaric oxygen chambers.

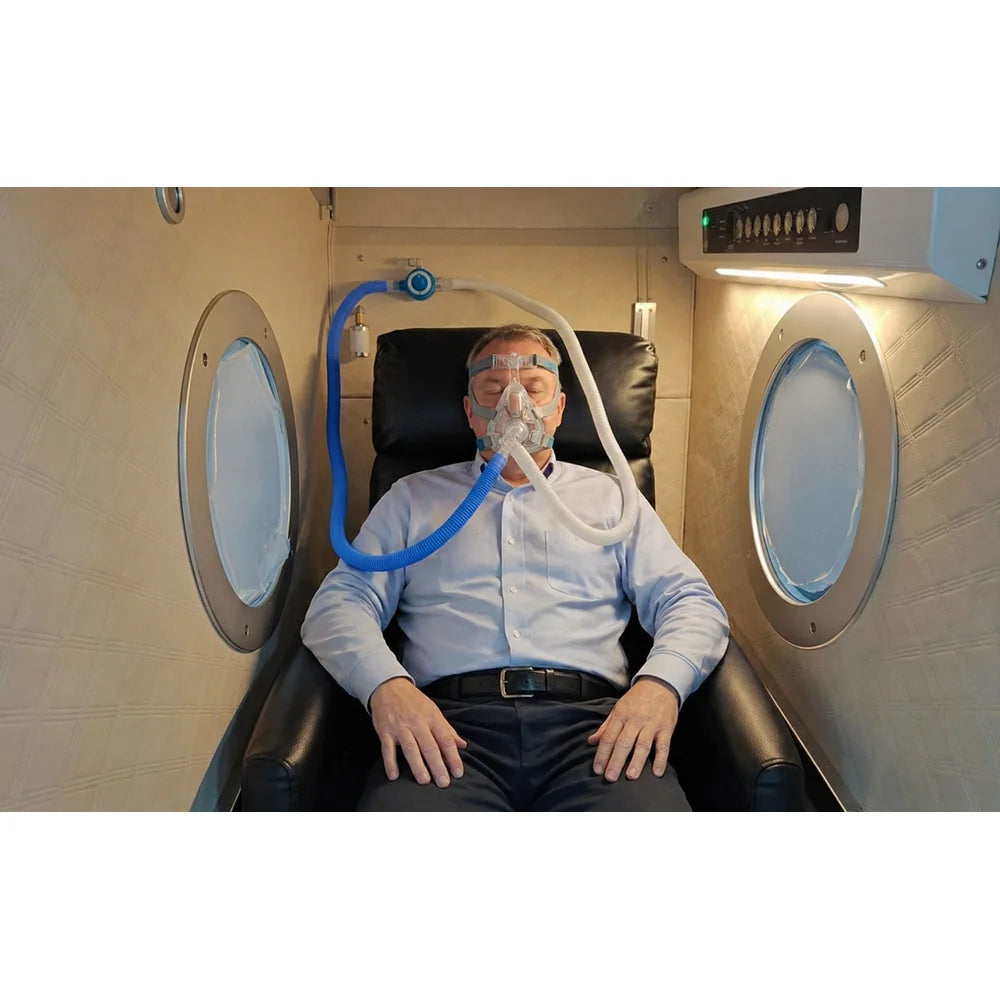

OmniBreath Dual-Logic BIBS Mask System

Previously you had to commit to one breathing method before the door closed. The proprietary OmniBreath Valve hands that choice back to you mid-session, no disconnecting and no interruption. The assembly mounts on the quilted cabin wall: a blue A/B selector dial, a white corrugated supply hose, a silver filter canister, a blue exhaust hose, and a clear oxygen mask on its own tubing.

• Position A, Standard Mode, optimized for regular masks and ideal if a fully sealed BIBS mask feels confining or you prefer an open-air breathing sensation with supplemental oxygen
• Position B, BIBS Mode, engaging the professional built-in breathing system for higher oxygen purity and efficient CO2 expulsion
• Breathe 90%-98% pure oxygen directly
• Includes a 20L flow meter, water collector, and medical PE filter

If you order the OmniBreath system, we strongly recommend pairing it with the 20L oxygen concentrator below for the most efficient and comfortable breathing.

Step Up to the 20L Oxygen Concentrator All-in-One Machine

Want more oxygen behind every breath? The integrated 20L oxygen concentrator replaces the standard unit while keeping the same all-in-one cabinet design, so installation and daily operation stay just as simple. It arrives as a silver and black cabinet on casters, and can be finished to match a silver chamber for a matched pairing in the room.

• 1-20L adjustable oxygen flow at 90%-98% purity
• Runs on 110V/220V household power directly
• Oxygen Boosting System that holds flow steady at full 2.0ATA pressure, where units without boosting lose around 50% of their flow

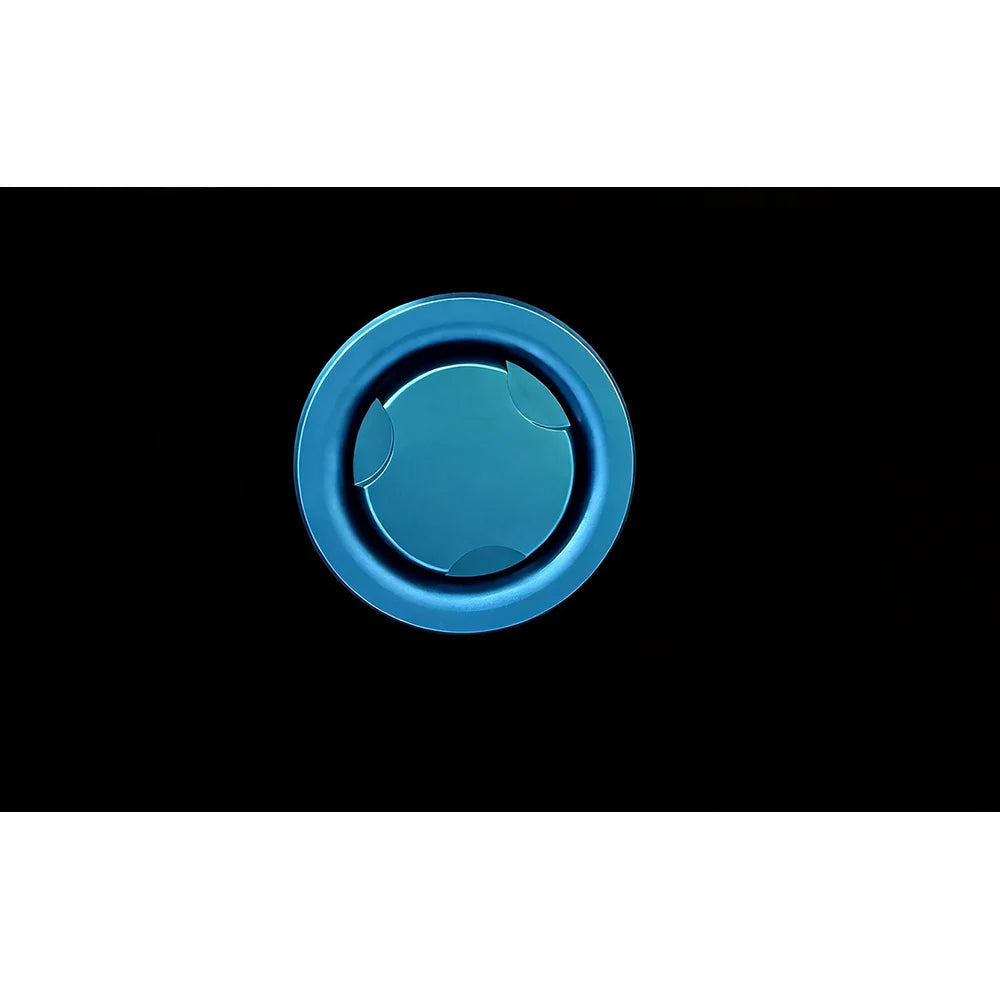

• PE filter for cleaner air filtration, stable performance, and longer system life, accessed through a blue anodized filter port on the front of the cabinet
• Every machine needed to run the chamber housed in one cabinet, no separate concentrator to place and plumb

TV Holder and Bluetooth Speaker Entertainment Kit

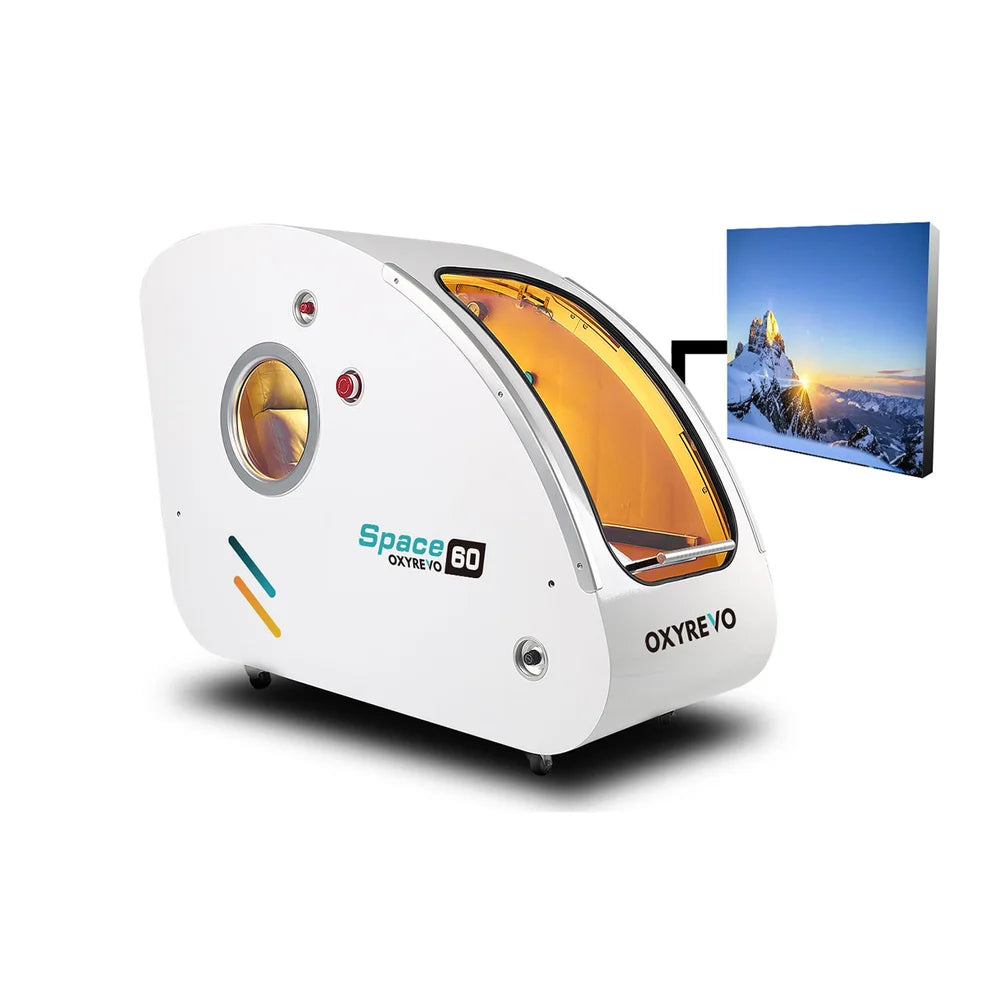

Turn an hour-long session into an hour of movies, music, or guided meditation. The entertainment kit keeps the electronics where they belong, outside the oxygen-rich cabin.

• Adjustable TV holder in solid aluminum, an articulated arm that mounts to the chamber shell as a stable and durable mounting structure, fits 20-28inch TVs, and angles the screen to your seated eye line
• Bluetooth speaker with clear, immersive sound, wireless pairing to your phone or the flat screen mounted outside for films, scenery, or streaming, plus colorful ambient lights

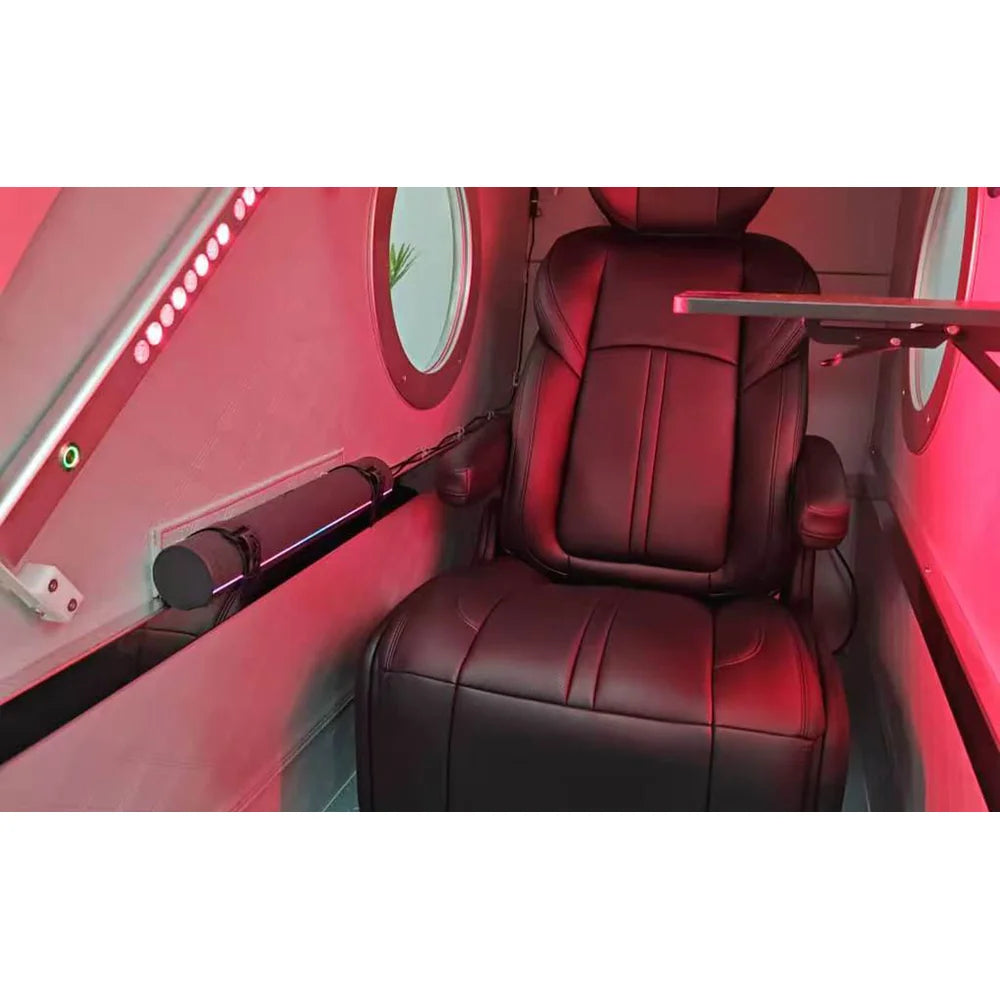

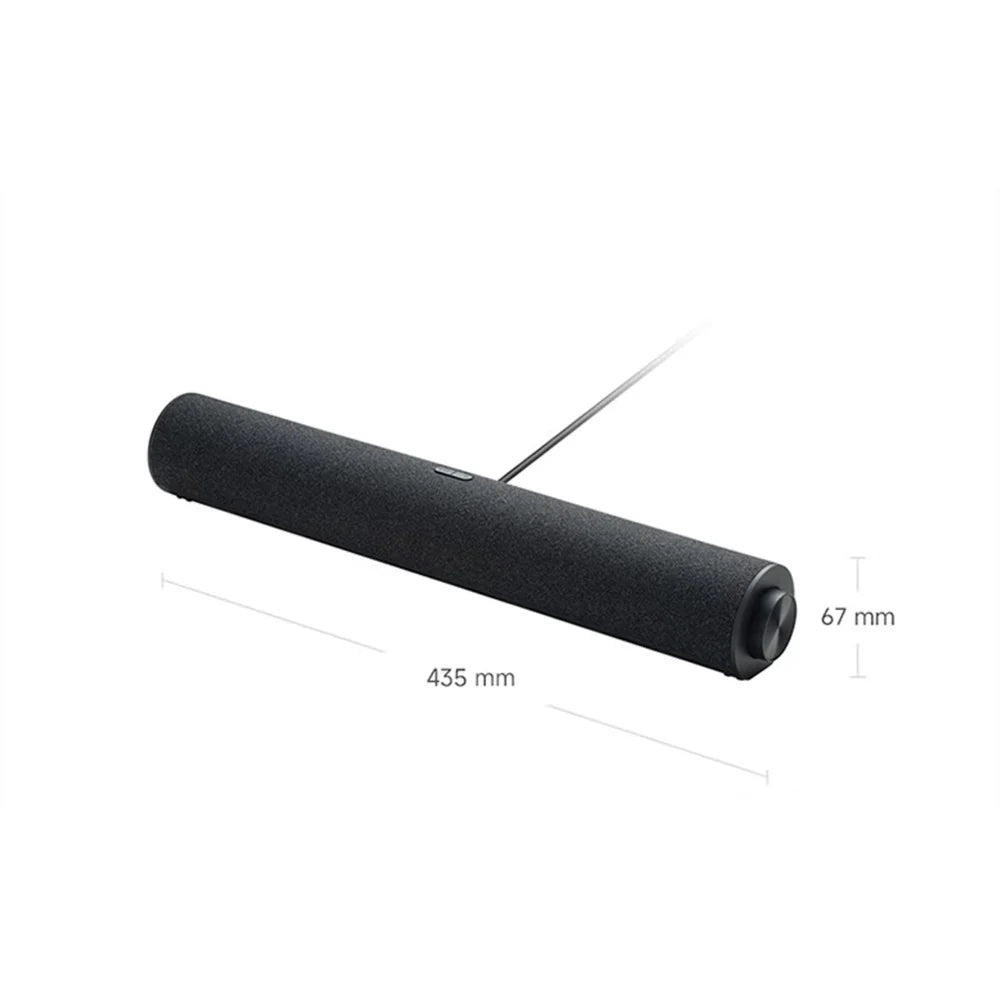

• Cylindrical speaker bar measuring 435 mm long and 67 mm in diameter, clipping neatly to the side rail inside the cabin beside the seat
• No alternating current inside, the television and AC components stay external for a cleaner, safer internal environment
• No battery inside, the speaker runs on USB power instead of an internal lithium battery, avoiding rechargeable cells in an oxygen-rich space while playing continuously through the whole session

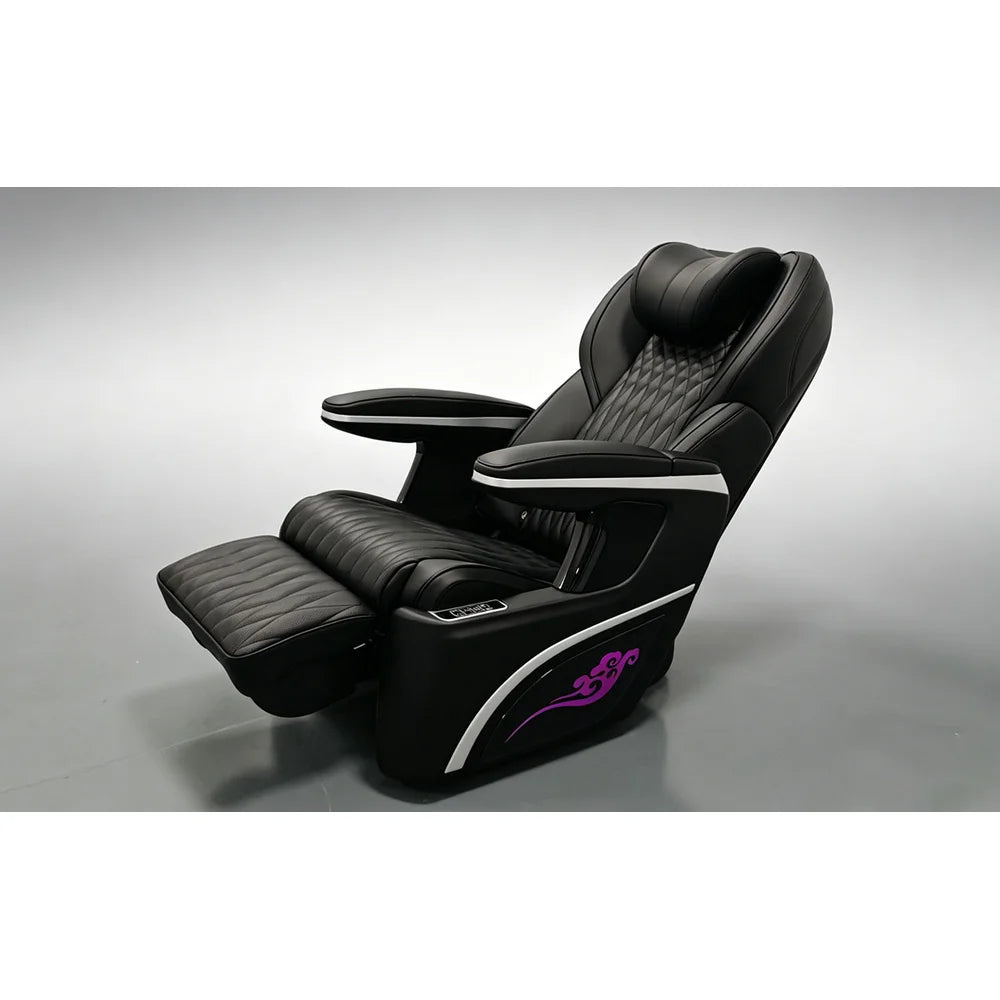

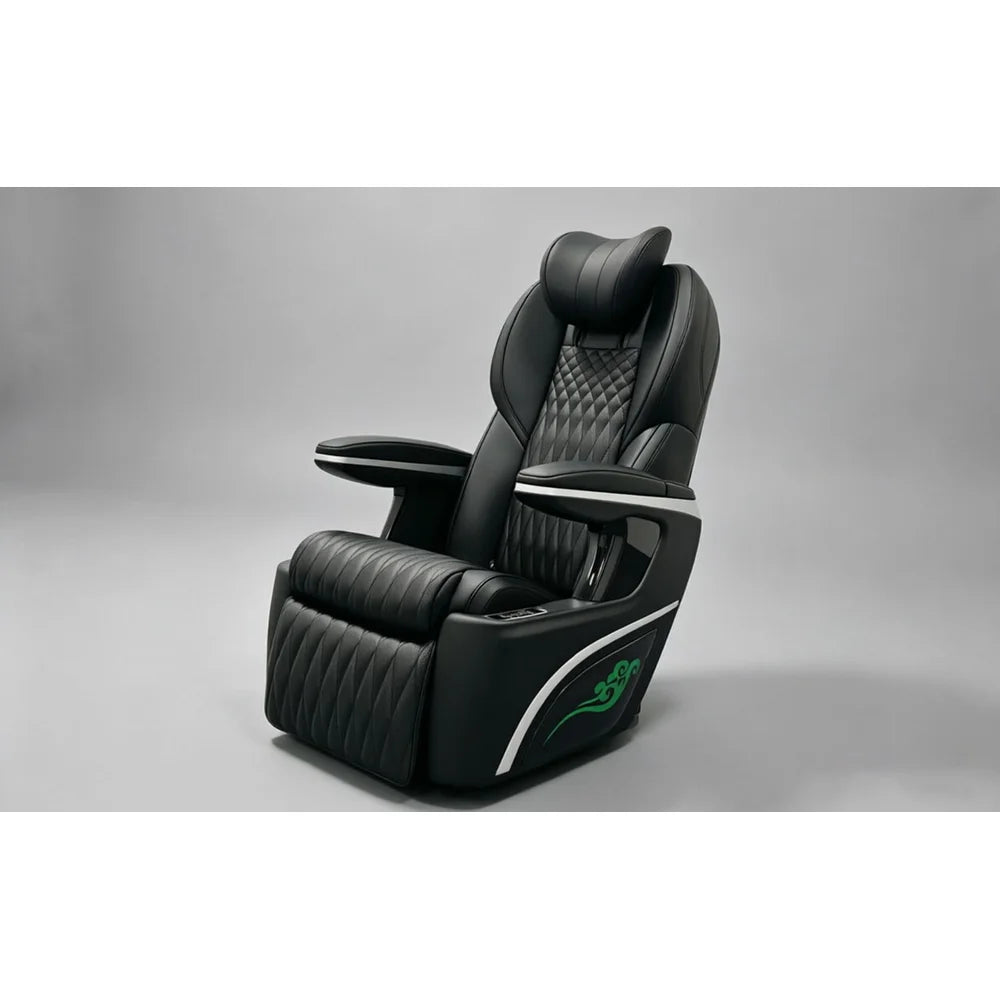

Luxury Multi-Function Power Chair Upgrade

Built specifically for the Space60, this Nappa leather power chair turns the cabin into a first-class seat. The backrest carries a perforated diamond-quilted massage panel, topped by an adjustable headrest that raises to suit your height, with wide padded armrests either side and a coloured graphic on the side shroud. It runs on a 12V power supply, carries an intelligent control panel, and lifts in and out easily.

• Seat and backrest adjustable through multiple angles to find your relaxation position
• Smooth forward and backward movement inside the chamber, easing entry and exit for elderly users or anyone with limited mobility
• Advanced back massage with built-in intelligent massage functions for added comfort and relaxation during your session
• 3 levels of seat ventilation and seat heating to stay comfortable in any climate
• Extending leg support and footrest for a fully reclined position, with control buttons on the chair base

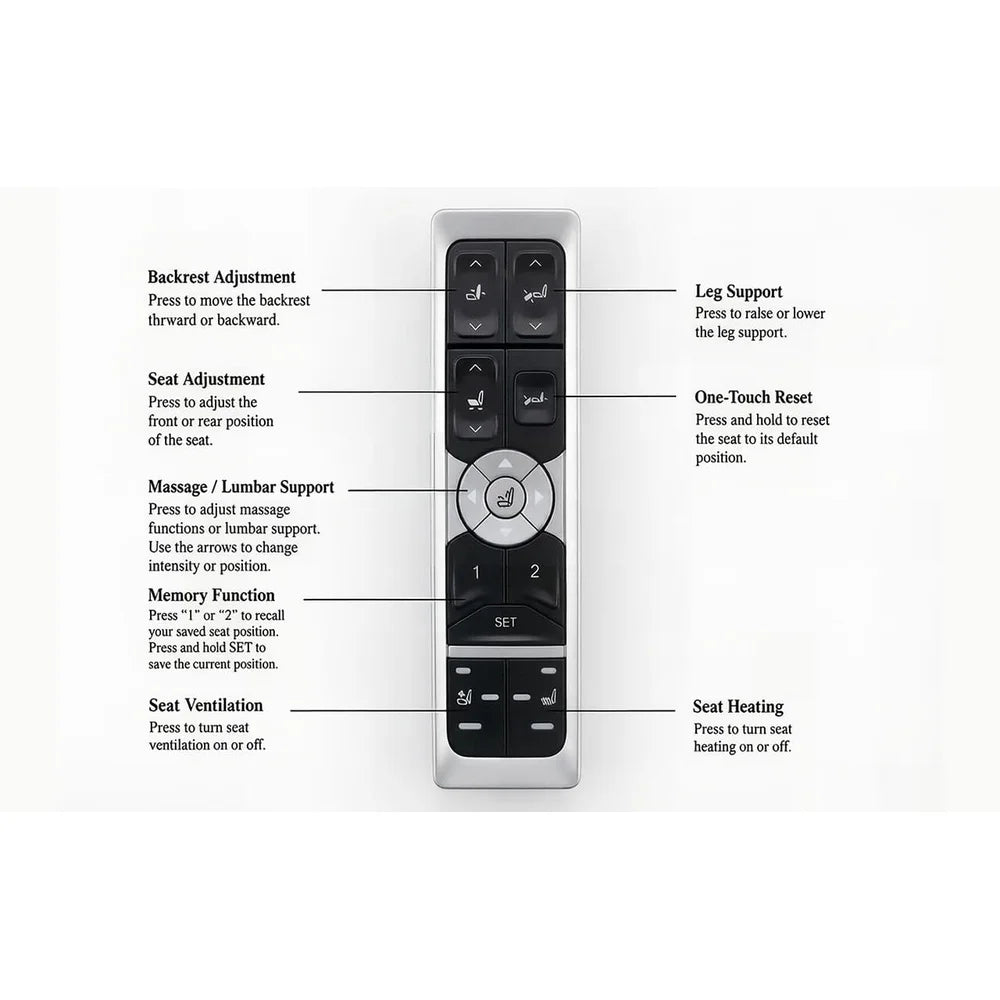

• Silver handheld control panel with dedicated buttons for backrest adjustment, leg support, seat adjustment, one-touch reset, massage and lumbar support, memory function, seat ventilation, and seat heating
• Ambient LED lighting and a memory function on the controller

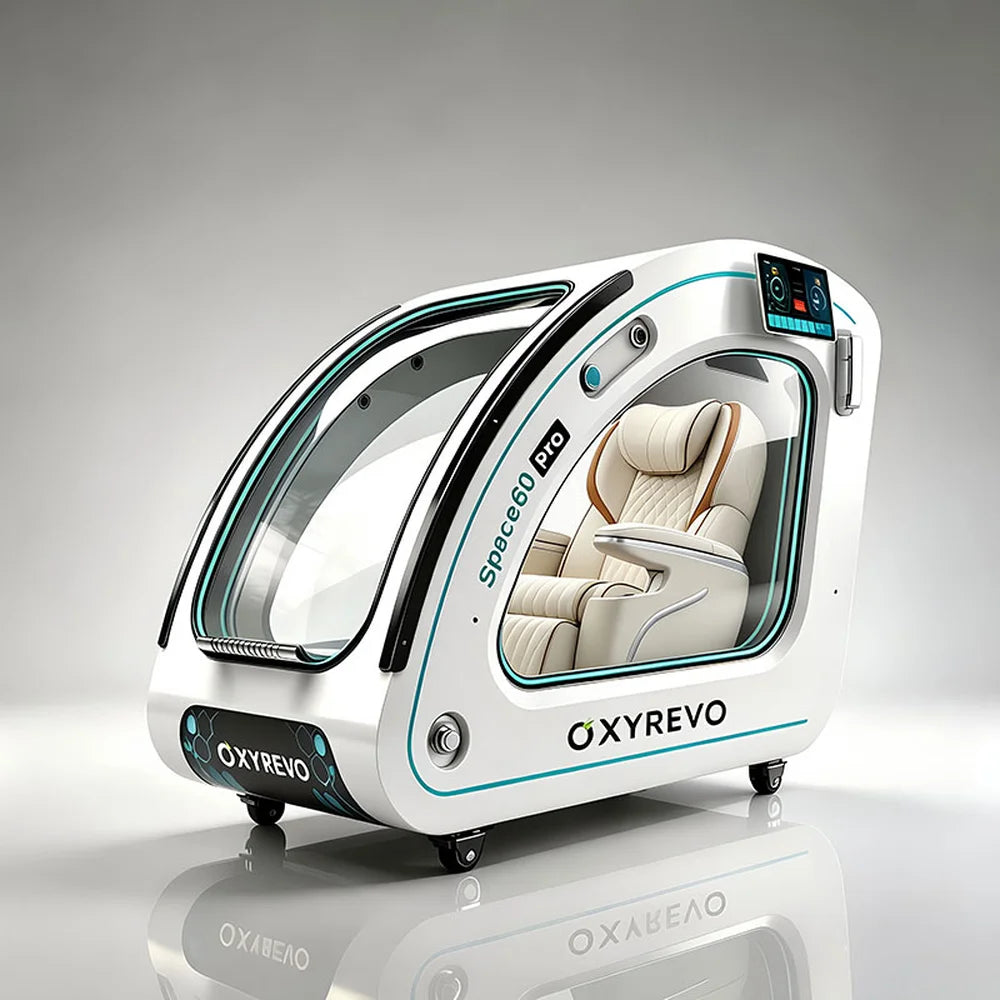

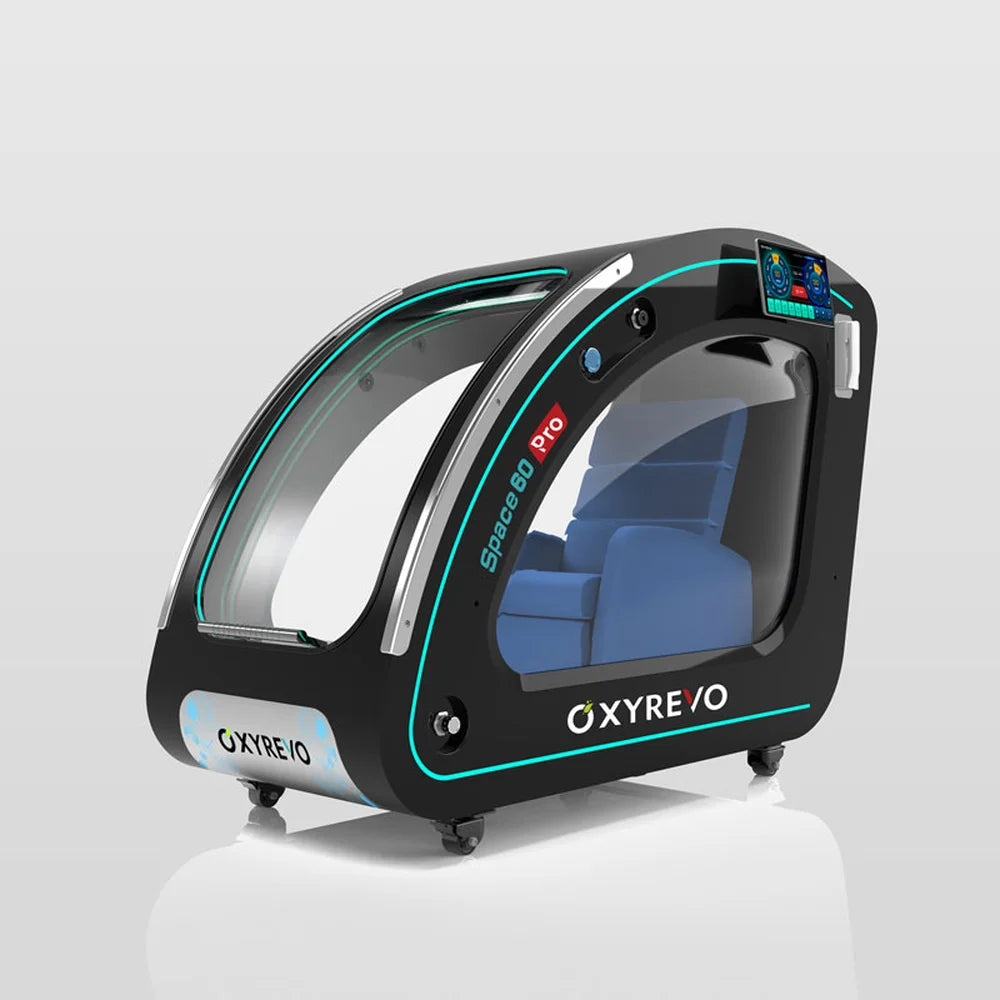

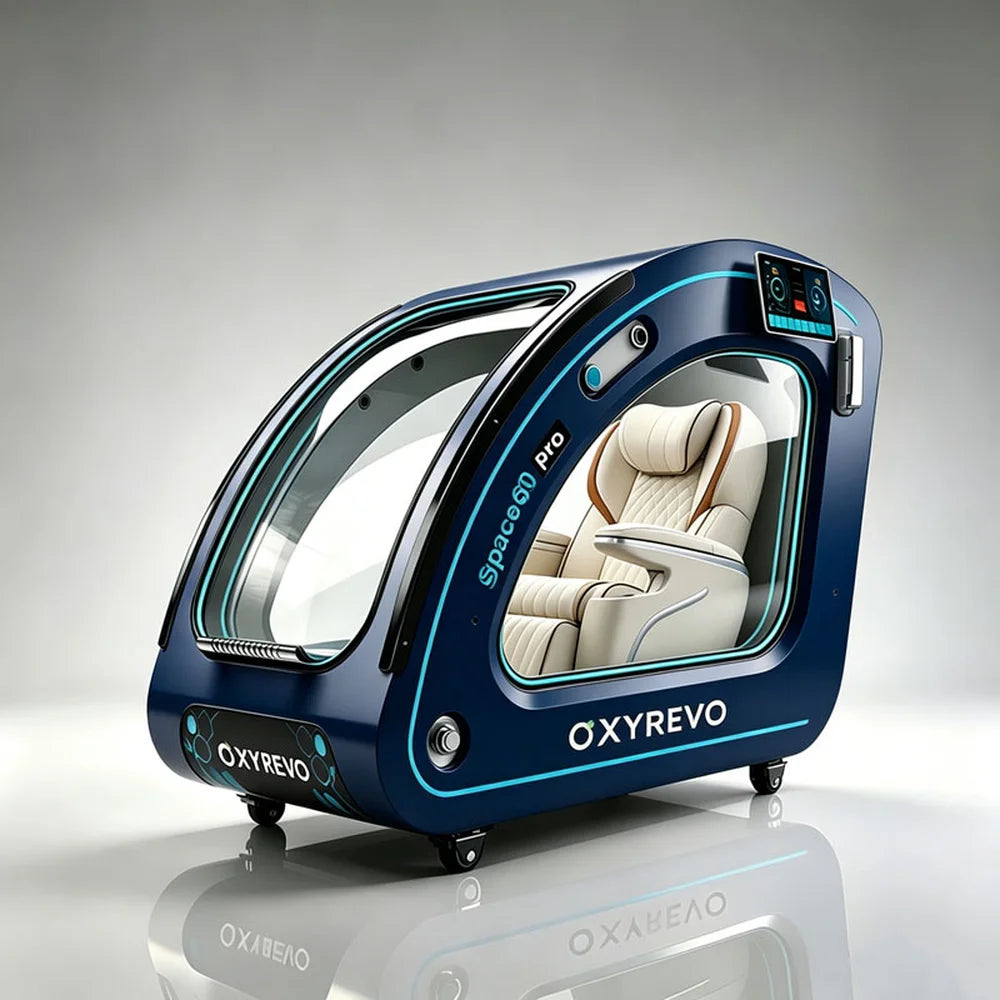

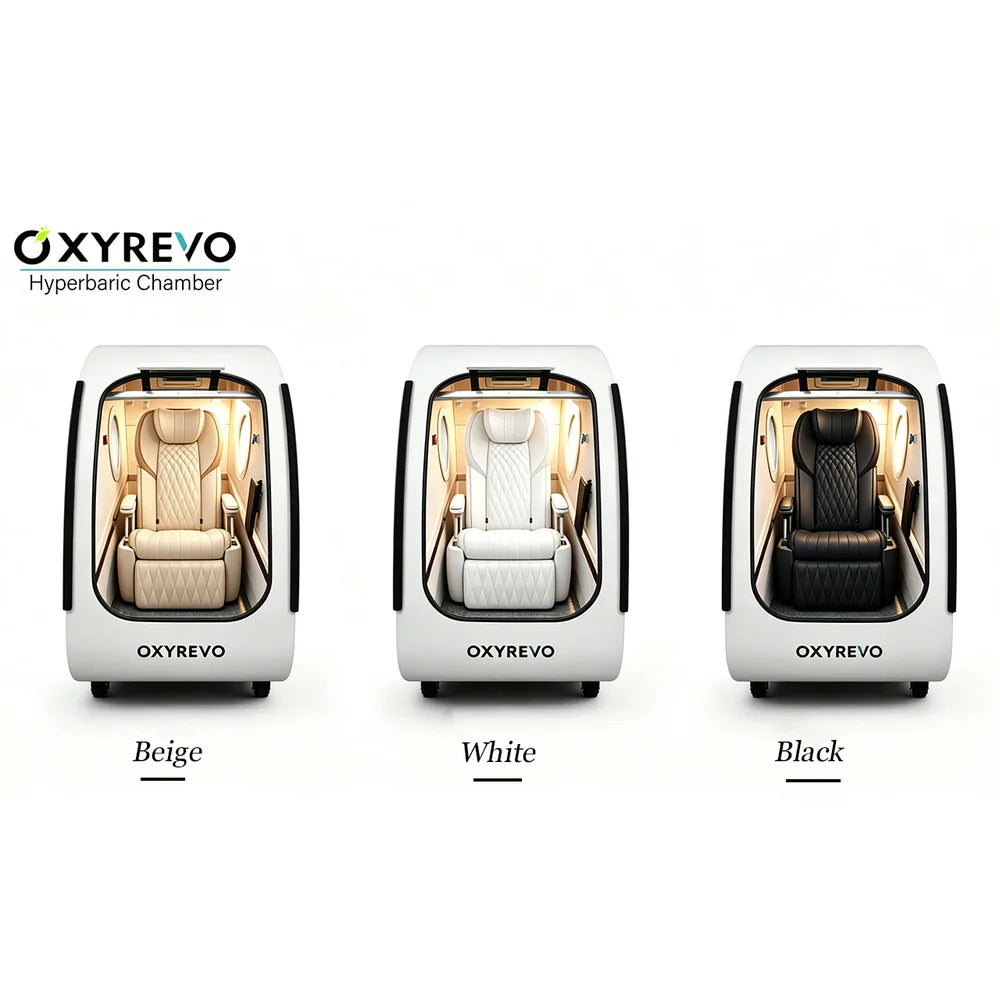

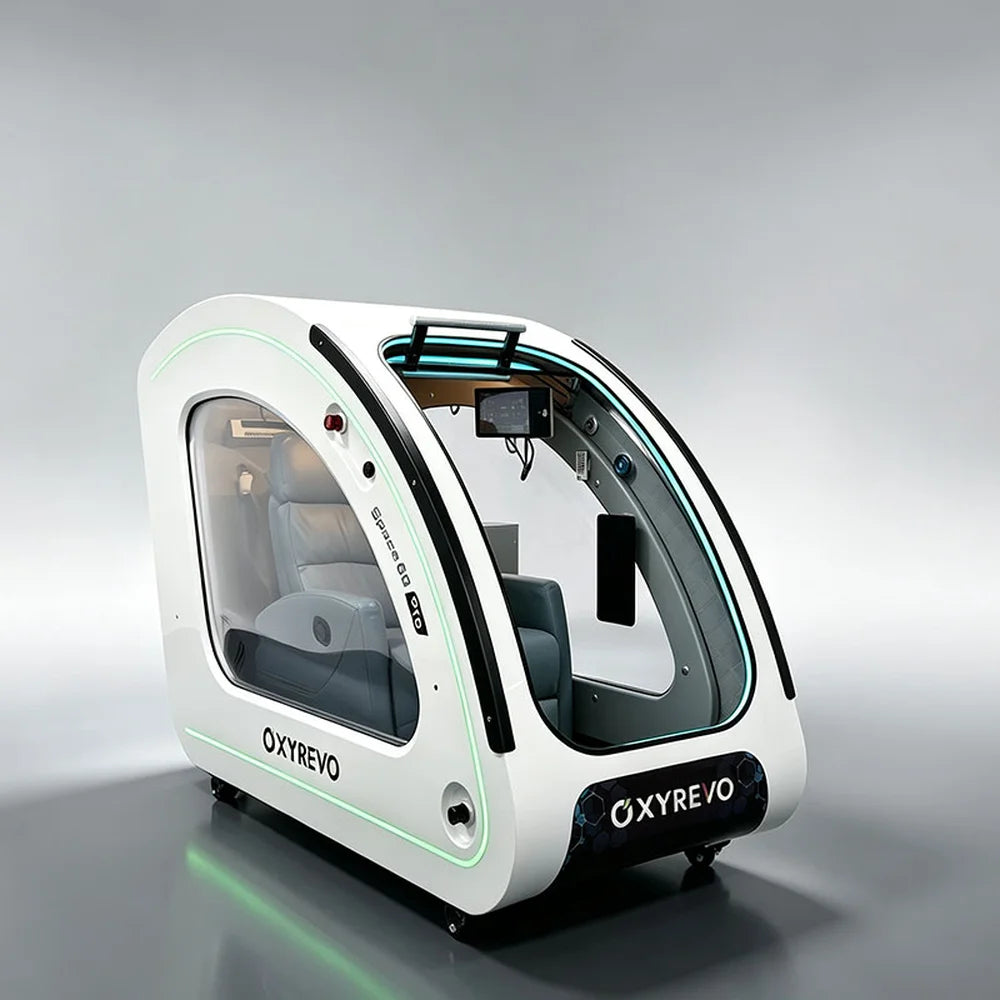

Finish Options Available for the OXYREVO Space60 Pro

Pick the look that suits the room. Standard finishes include Shining Pearl White, Premium Starship Silver, Black, and Blue, with OEM custom painting available on request. Chair upholstery comes in Beige, White, or Black, and the comparison graphic shows the white chamber side by side with each of those three upholstery choices so you can judge the pairing before you order.

Planning for Commercial Use

Every facility is different. Session pricing, client volume, staffing, and operating costs all vary, so we don't publish revenue or payback estimates. If you're adding this equipment to a clinic, studio, spa, or gym, call us at (855) 975-6272 and we'll help you plan space, power, installation, and support.
