RevitalCore X-Ascend Red Light Panel 576 LED 8 Wavelengths

Full-Body Light Coverage With the RevitalCore X-Ascend Light Therapy Panel

The RevitalCore X-Ascend is a full-body red light therapy panel with 576 LEDs and eight wavelengths. Tired of moving a small panel around your body just to cover one area at a time? Stand in front of this 1820 mm vertical panel and let 576 dual-chip LEDs do the work across your whole treatment surface at once. Eight wavelengths, individually tunable pulse and brightness, and a touchscreen you actually want to use. No enclosed bed, no oversized footprint, just a tall slim panel you can mount, stand or wheel wherever you need it.

• Coverage: 576 dual-chip LEDs span a 1820 mm vertical surface for full-body illumination in one session.
• Wavelengths: eight total, 630, 650, 660, 670, 810, 830, 850 and 1060 nm, spanning red and near-infrared bands.
• Per-wavelength control: pulse (1 to 9,999 Hz) and dimming (1 to 100%) are independently adjustable for each wavelength.
• Lens options: 30° for focused output, 60° for broader spread.
• Controls: onboard touchscreen, included 2.4 GHz remote, and Bluetooth connectivity.
• Finish: available in Black or White at the same price per stand.
• Footprint: just 300 mm wide and 65 mm deep, far less floor space than an enclosed bed.
• Power: 960W ±10% draw, accepts 100 to 240V AC at 50/60 Hz for near-worldwide use.
• Certifications: Health Canada Certified, FDA, TGA, MDL, CE EMC & LVD, FCC, and RoHS.
• In the box: panel, power cord with plug, remote controller, protective glasses, and user manual.
• Commercial fit: one panel with eight wavelengths and flexible stand options can replace multiple fixed-output devices.
• Made for you: each panel is custom built after your order, with production of about 30 calendar days plus free U.S. shipping.

Variant comparison

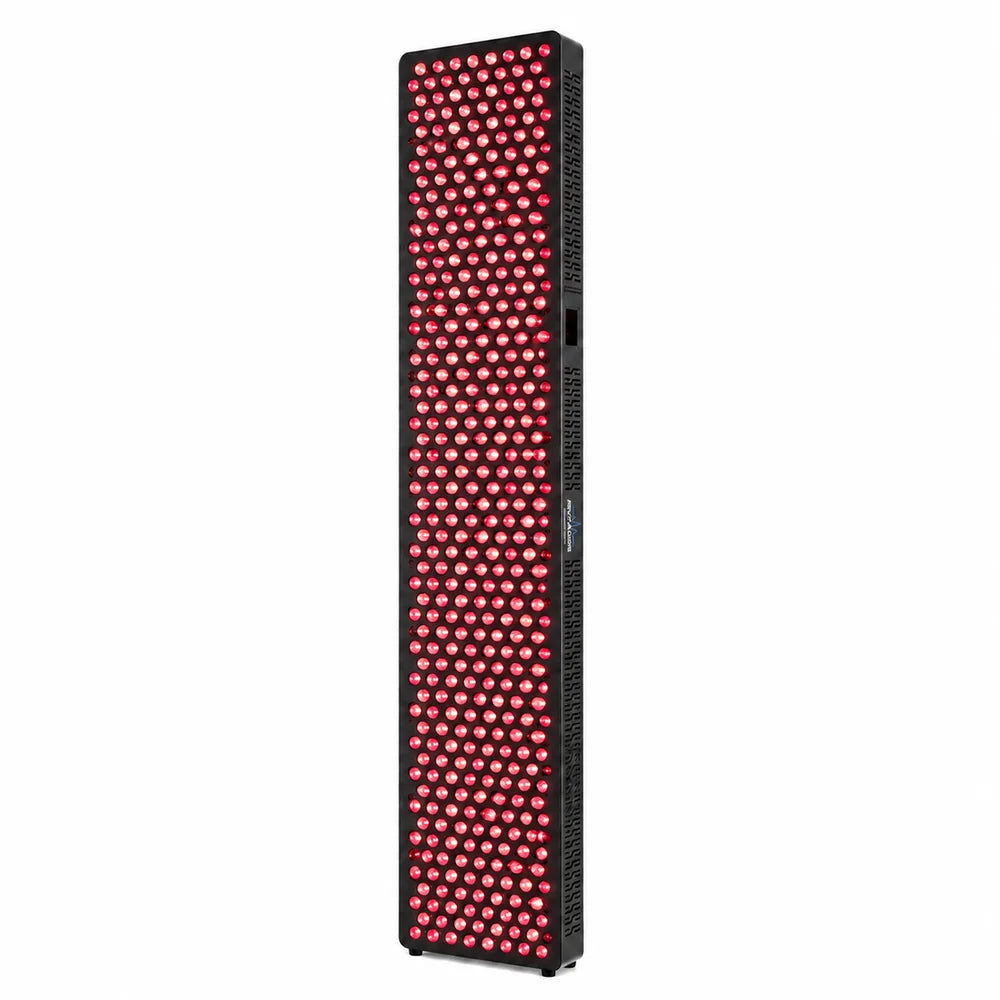

576 Dual-Chip LEDs Spread Light Across Your Entire Body

Small panels force you to treat one zone, reposition, then treat the next. That is time you probably do not have. The tall vertical array here changes the math.

• 576 dual-chip LEDs packed across a 1820 mm treatment surface for broad, consistent illumination
• Light density at 6 in of ≥1400 W/m² across all wavelengths combined
• Red output ≥150 W/m² and near-infrared ≥1200 W/m² at the same distance
• 960W ±10% actual power draw behind the array

Dual-chip construction means each LED position carries more emitters, so you get output density without stretching the panel wider than your room allows. At just 300 mm wide and 65 mm deep, it takes up a fraction of the floor space a bed would.

Eight Wavelengths in One RevitalCore X-Ascend Panel

Most panels give you two or three wavelengths and call it a day. This one runs eight across the red and near-infrared bands.

• Red: 630, 650, 660 and 670 nm
• Near-infrared: 810, 830, 850 and 1060 nm

Red wavelengths sit at the surface end of the spectrum while near-infrared reaches deeper. Having four of each means you are not locked into a single narrow band, and the inclusion of 1060 nm extends the panel's near-infrared range further than the more common 850 nm ceiling.

Tune Every Wavelength Independently With Pulse and Dimming Control

This is where the panel separates itself from fixed-output units. Each of the eight wavelengths is independently adjustable, not bundled together under one master dial.

• Pulse frequency from 1 to 9,999 Hz, set separately for each wavelength
• Dimming from 1 to 100%, also set separately for each wavelength
• Build a session that runs red at one intensity and near-infrared at another, simultaneously

For a clinic running different protocols back to back, that flexibility is the difference between one panel and three. Everything is reached through the onboard touchscreen interface, which puts session and output controls directly under your fingertips instead of buried in a menu system.

Dual-Angle Lenses and Wireless Control on the RevitalCore X-Ascend Red Light Therapy Device

Two lens angles are built into the panel so you can aim light where it needs to go.

• 30° lenses concentrate output for focused, higher-intensity delivery on a target area
• 60° lenses widen the spread for broader coverage across a larger surface

Control happens hands-free too. A 2.4 GHz remote controller ships in the box so you can start, stop and adjust a session without stepping away from the panel, and Bluetooth connectivity supports compatible wireless operation on top of that.

Four Stand Configurations to Match Your Space

Pick the mounting setup that fits how you actually use the panel. The choice applies to both the Black and White finishes at the same price point per stand.

• No Stand ($2,499.00) for wall-mounted or existing-rig installations
• Floor Stand for a straightforward freestanding vertical setup
• Pneumatic Horizontal/Vertical Stand to switch the panel between upright and lying-down orientation
• Large Motorized Stand for powered height and position adjustment

The panel itself weighs 21 kg ±0.5 kg gross with an iron shell, so the stand you choose matters for how easily you reposition it day to day.

Planning for Commercial Use

Every facility is different. Session pricing, client volume, staffing, and operating costs all vary, so we don't publish revenue or payback estimates. If you're adding this equipment to a clinic, studio, spa, or gym, call us at (855) 975-6272 and we'll help you plan space, power, installation, and support.

Certified, Powered and Ready Worldwide

Plug it in almost anywhere. The panel accepts 100 to 240V AC at 50/60 Hz, drawing 8.0A ±5% at 220V or 13.2A ±5% at 110V.

Compliance is documented across the major markets:

• Health Canada Certified
• FDA
• TGA and MDL
• CE EMC & LVD
• FCC
• RoHS

Built to Order, Just for You

Your panel is not pulled off a warehouse shelf. Every LED panel we offer is custom built after you order, assembled to your chosen finish and stand configuration rather than mass-stocked and hoping someone wants it.

• Production takes approximately 30 calendar days from order confirmation
• Shipping and transit time are additional and vary by destination
• Free U.S. shipping is included with every LED panel order
• Customs duties, taxes and import charges are not included unless stated otherwise

The wait buys you a unit made to your spec. Have a question about timing for your address? Contact Us and we will walk you through it.

What Arrives in the Box

• X-Ascend Panel
• Power cord with plug
• Remote controller
• Protective glasses
• User manual

Eye protection is included from the start, so you are not chasing accessories before your first session.
