TSB 360 TwinForce 2.0 ATA Multi-Person Hard Shell Hyperbaric Chamber with Red Light

Two People, One Session With the TwinForce 2.0 ATA Hyperbaric Chamber with Red Light Therapy

The TSB 360 TwinForce is a 2.0 ATA multi-person hard shell hyperbaric chamber with built-in red light therapy. You're booking one client at a time, watching the calendar fill up faster than your recovery room can handle. What if two people could pressurize together in the same hard-shell chamber, breathing pure oxygen at 2.0 ATA while red light works alongside it? That's the whole idea here. It's built from aerospace-grade aluminum alloy with a 40mm door, dual oxygen concentrators, and a full entertainment package.

• Dual Occupancy: Two people pressurize together at up to 2.0 ATA, each with an individual BIBS mask holding steady 90±3% oxygen.
• Combined Therapy: Red light therapy runs alongside the hyperbaric session, delivering two modalities in one booking.
• Shell Construction: Aerospace-grade Almag aluminum magnesium alloy with a 40mm door for repeated daily pressure cycling.
• Comfort Features: Cream leather zero-gravity recliners, quilted cream padded interior walls, grey floor mat, large viewing window, intercom system, and a 43-inch Android smart TV entertainment package.
• Climate Control: 420 m³/hour air conditioning unit keeps temperature comfortable throughout the pressure cycle, with PCO air purification cleaning the cabin air.
• Oxygen Supply: Dual oxygen concentrator system built around two 20L/min oxygen generators, delivering 40L total flow across both users.
• Pressurization: Greater than 300KPa air compressor module with integrated water cooling for back-to-back sessions.
• Smart Controls: Interior and exterior touchscreen panels with pressure curve monitoring, protocol presets, fault alerts, and E-Stop.
• Safety Systems: SMC oxygen filtration, five-level pressure control protection, and low-voltage DC wiring with anti-static measures.
• Wellness Use: Used in recovery and relaxation routines.
• Installation: Free delivery and setup completed in a single 2 to 3 hour visit, with white-glove service available in most metros.
• Site Requirements: Dedicated 50A circuit at 220 to 240V, 7ft wide entrance, no special ventilation needed.
• Warranty Coverage: 2-year limited warranty included, with extended coverage options available.

Why Sessions in the TwinForce 2.0 ATA Red Light HBOT Chamber Feel Different

Two people, one session, each with their own oxygen mask.

• Shared sessions: partners, teammates or family members can book together.
• Recovery routine: a calm, quiet session that fits into busy schedules and hard training blocks.
• Wind-down time: relaxing seats and red light make the session easy to enjoy.

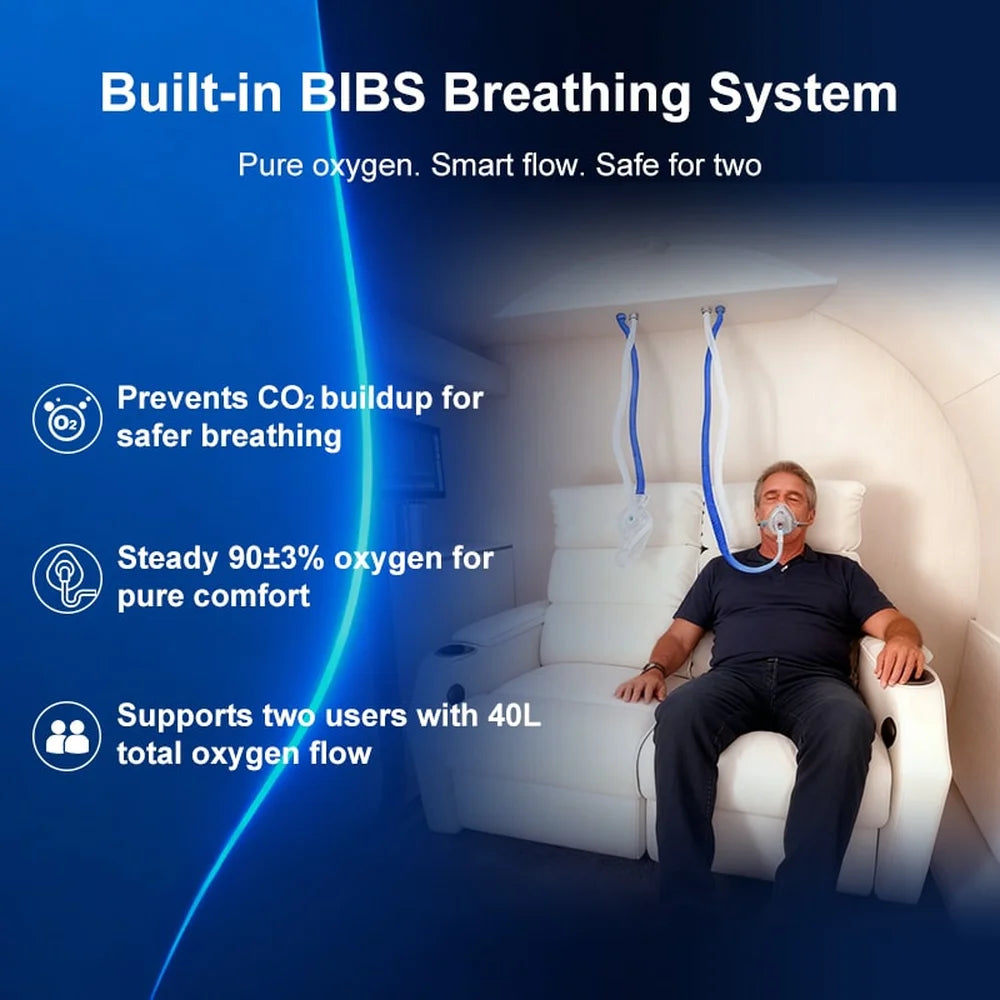

The Built-In Breathing System (BIBS) is what makes this work for two occupants at once. Individual masks prevent CO2 buildup inside the shell, hold a steady 90±3% oxygen concentration, and deliver 40L total oxygen flow across both users, fed by two 20L/min oxygen generators.

Inside the TwinForce 2.0 ATA Red Light Hyperbaric Chamber

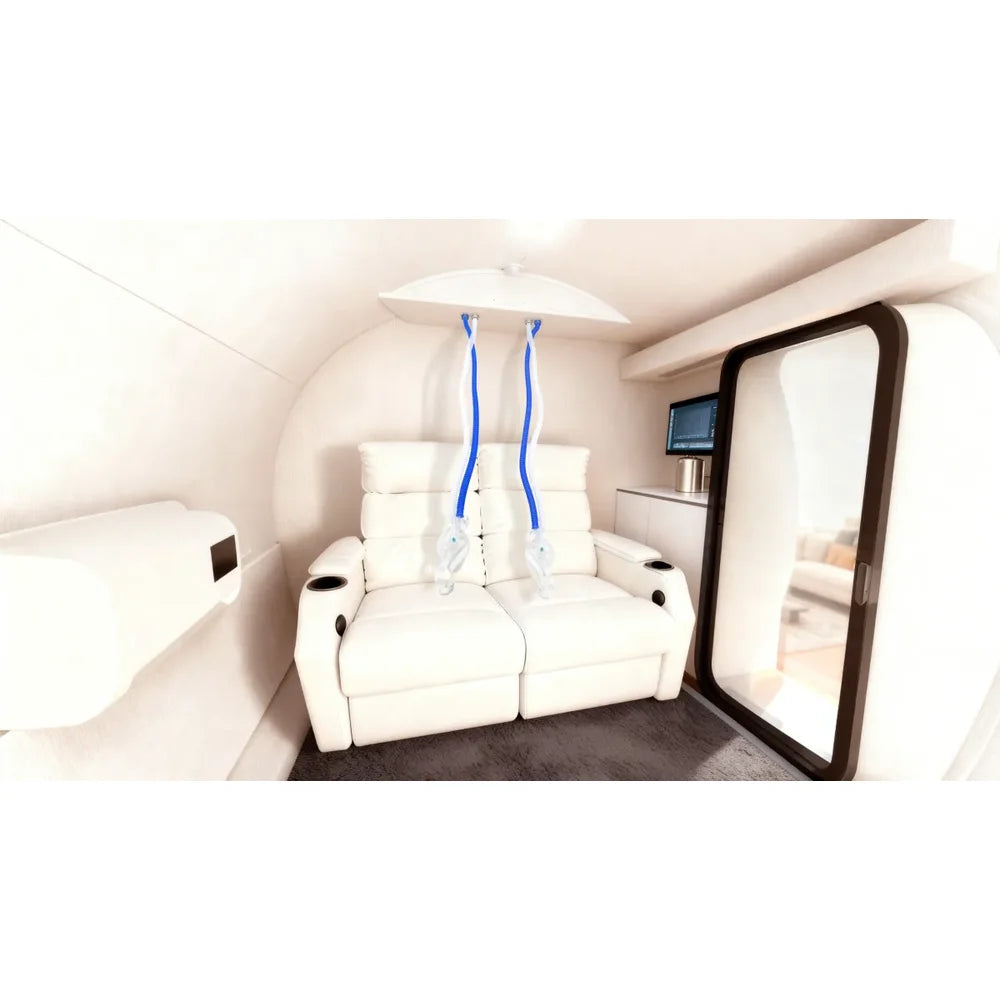

Sixty to ninety minutes in a pressure vessel can feel long. Not here. Two cream leather zero-gravity recliners with cup holders sit side by side beneath an overhead canopy where the blue BIBS hoses hang within easy reach, surrounded by quilted cream padded walls and a grey floor mat underfoot.

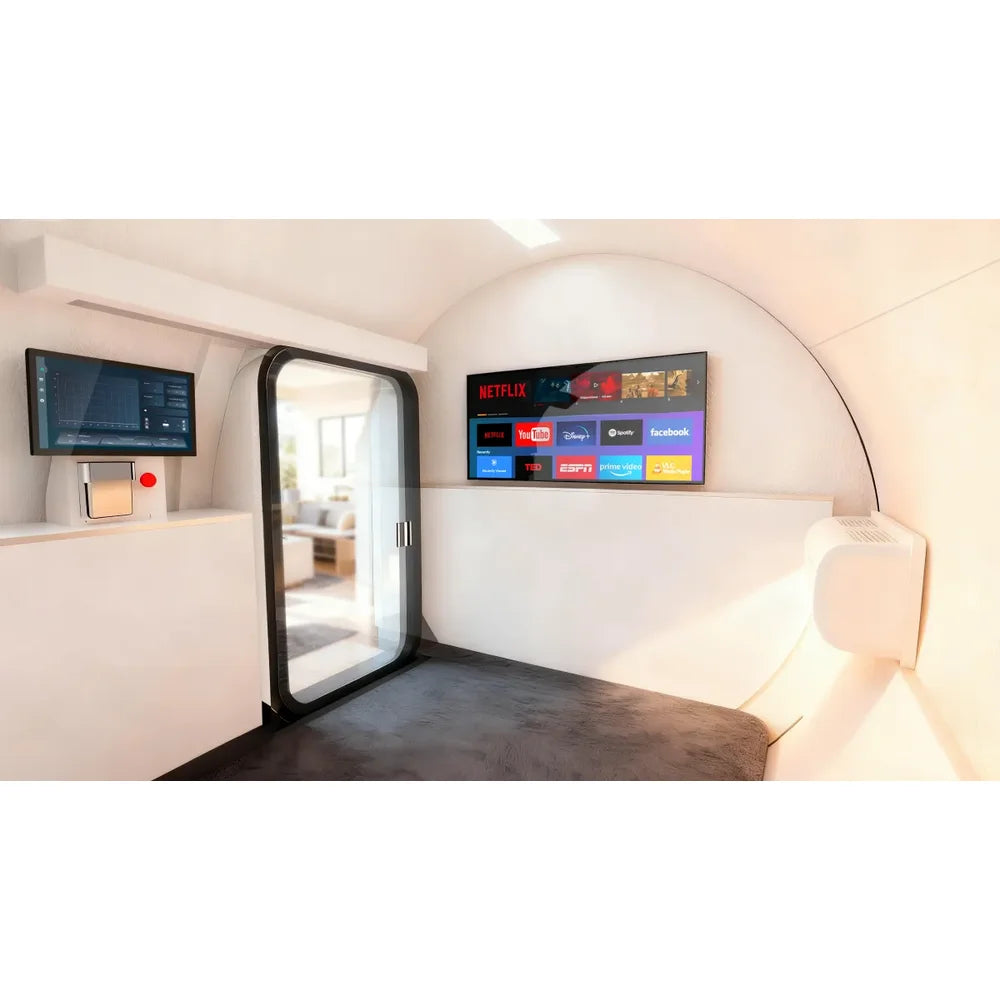

• Large sealed viewing window so occupants never feel boxed in and staff can see inside at a glance
• Entertainment package with intercom system including a wide 43-inch Android smart TV on the side wall
• 420 m³/hour air conditioning unit with an interior vent that keeps temperature comfortable through the full pressure cycle
• PCO air purification working on the cabin air alongside the climate system
• Red light therapy running simultaneously with the hyperbaric session, so one booking delivers two modalities

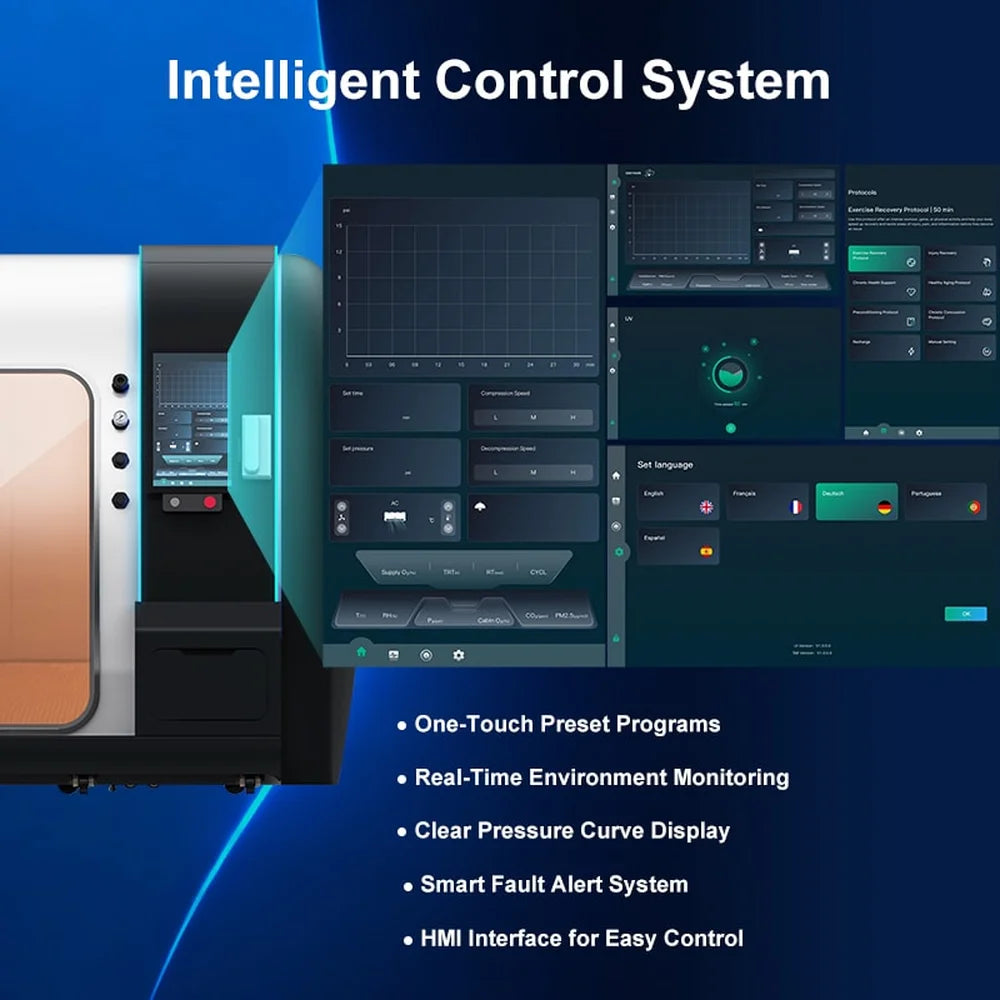

Touchscreen Control Inside and Out

Your staff shouldn't need an engineering degree to run a session. The intelligent control system puts everything on a graphical HMI touchscreen.

• Pressure curve display with real-time monitoring throughout the session
• Session timing plus independent compression and decompression speed settings
• One-touch protocol presets so repeat programs launch identically every time
• Smart fault alerts that flag issues before they interrupt a booking
• Language selection built into the menu system

Panels sit on both the interior and exterior, each with an emergency stop, the interior one a clearly marked red button beside the screen. Occupants are never dependent on someone outside the door.

How the TwinForce 2.0 ATA Multi-Person HBOT Chamber with Red Light Keeps Every Session Safe

Pressure and oxygen demand respect. Three layers of protection are engineered into the system.

• Oxygen safety: SMC filtration on the oxygen path
• Five-level pressure control protection guarding every stage of the compression and decompression cycle
• Electrical safety: low-voltage DC wiring with anti-static measures throughout the interior

Backed by a 2-year limited warranty, with optional extended coverage and a 5-year warranty available on the upgraded package.

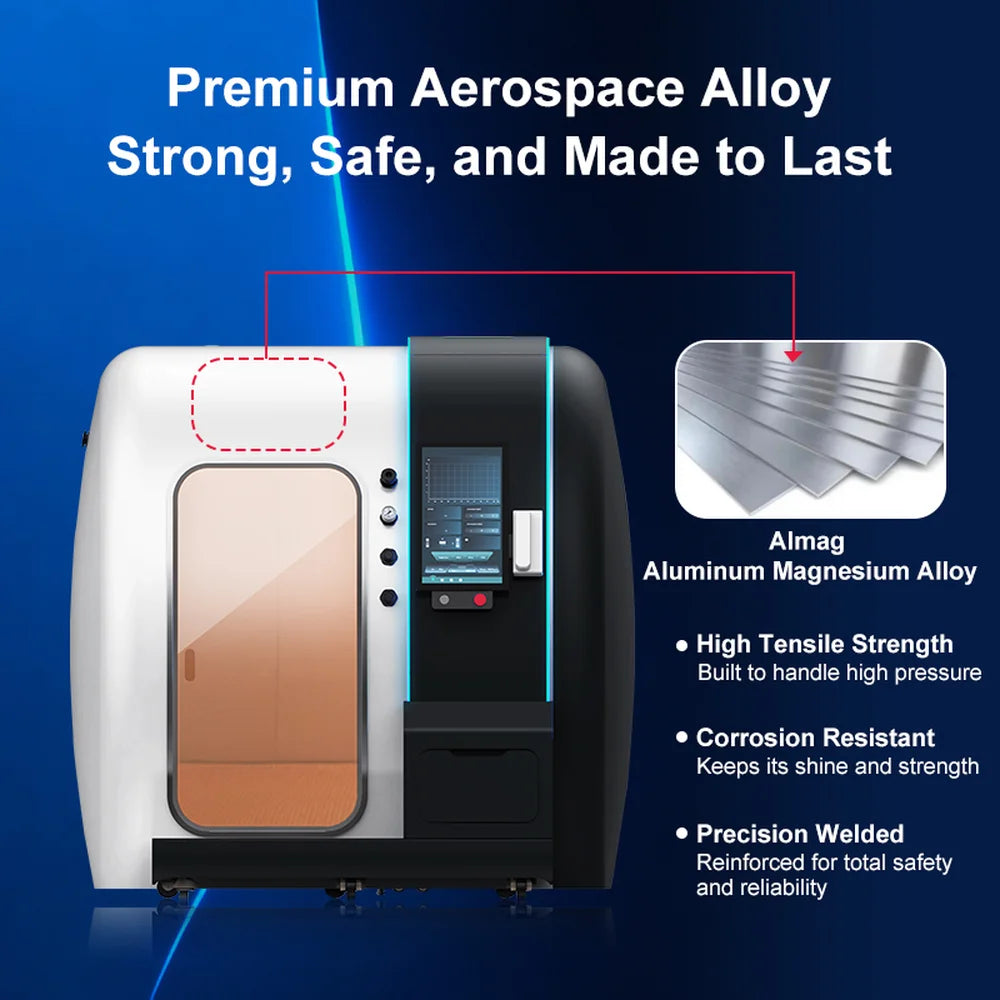

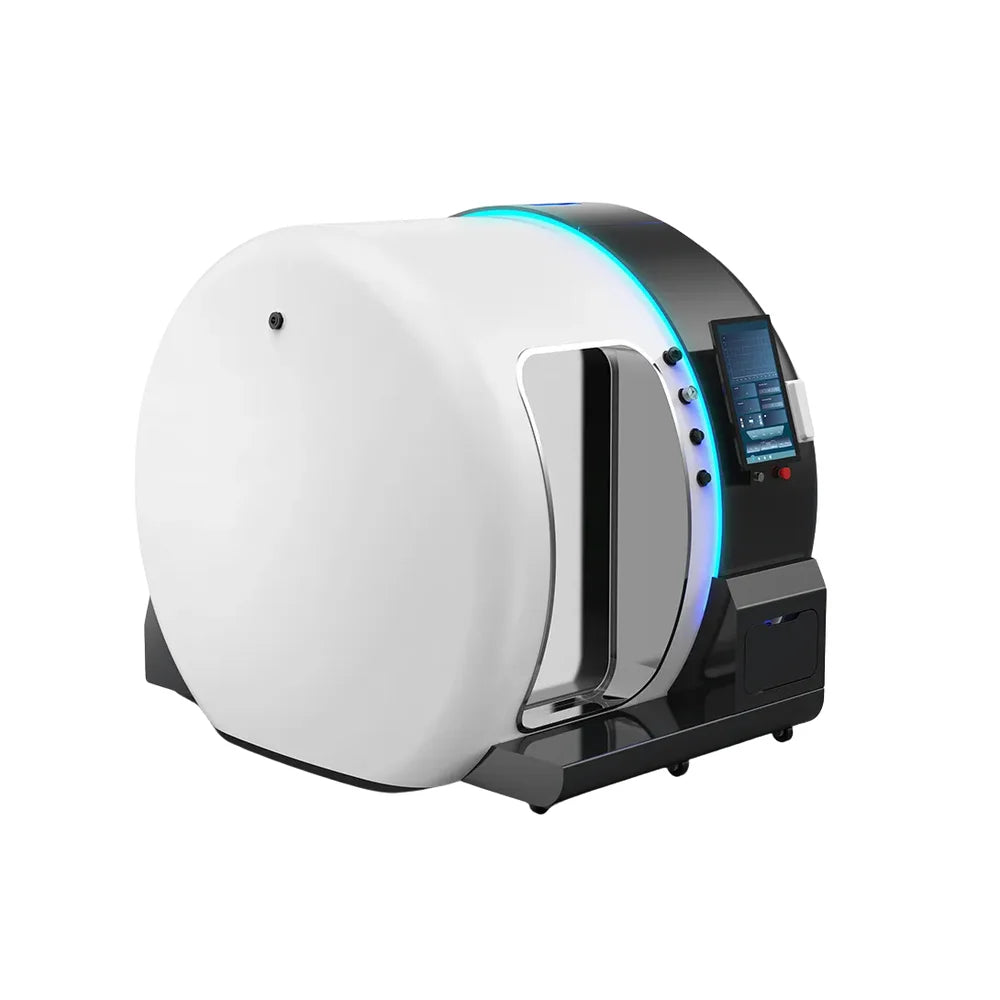

Premium Aerospace Alloy Shell

The pressure shell is formed from Almag aluminium magnesium alloy sheet, the same family of material trusted in aerospace construction.

• High tensile strength for repeated daily pressure cycling
• Corrosion resistant against humidity and cleaning chemicals
• Precision welded construction holding a reliable seal at 2.0 ATA
• 40mm door thickness with your choice of chamber color

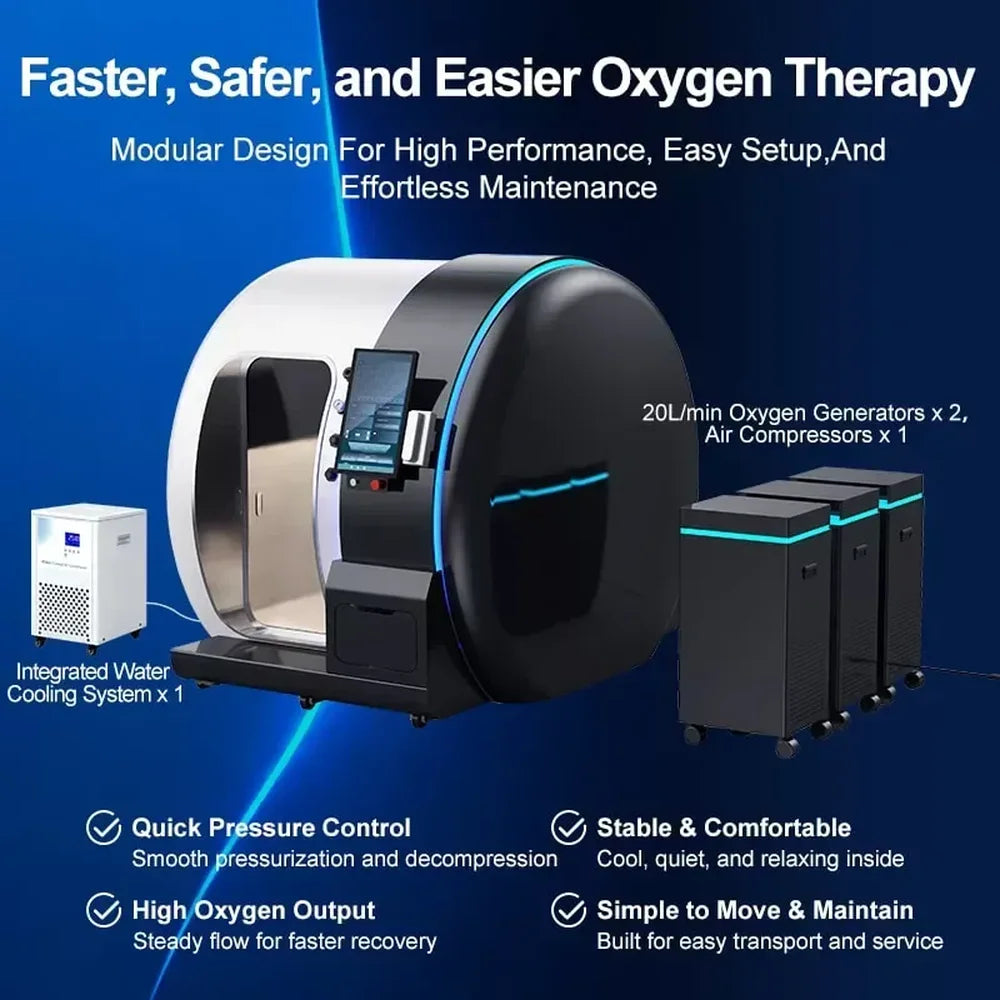

Dual Oxygen Generation and Cooling Modules

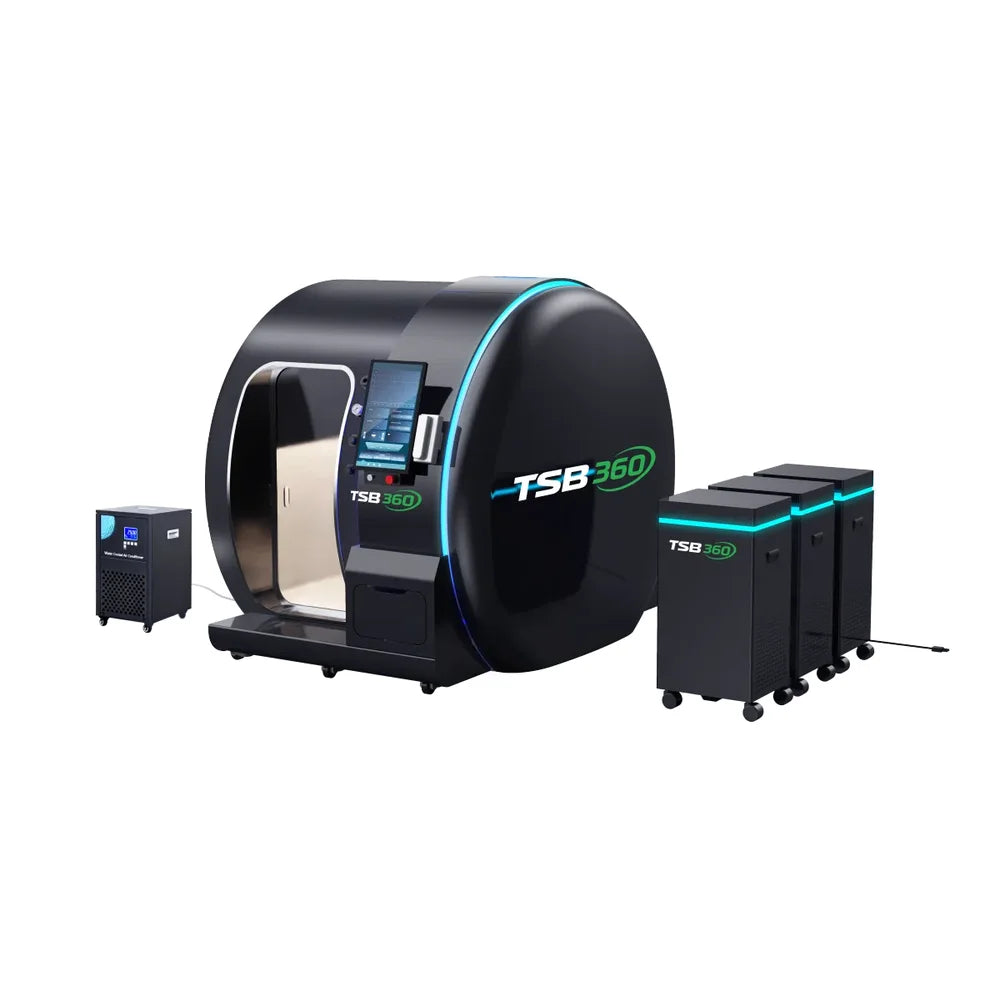

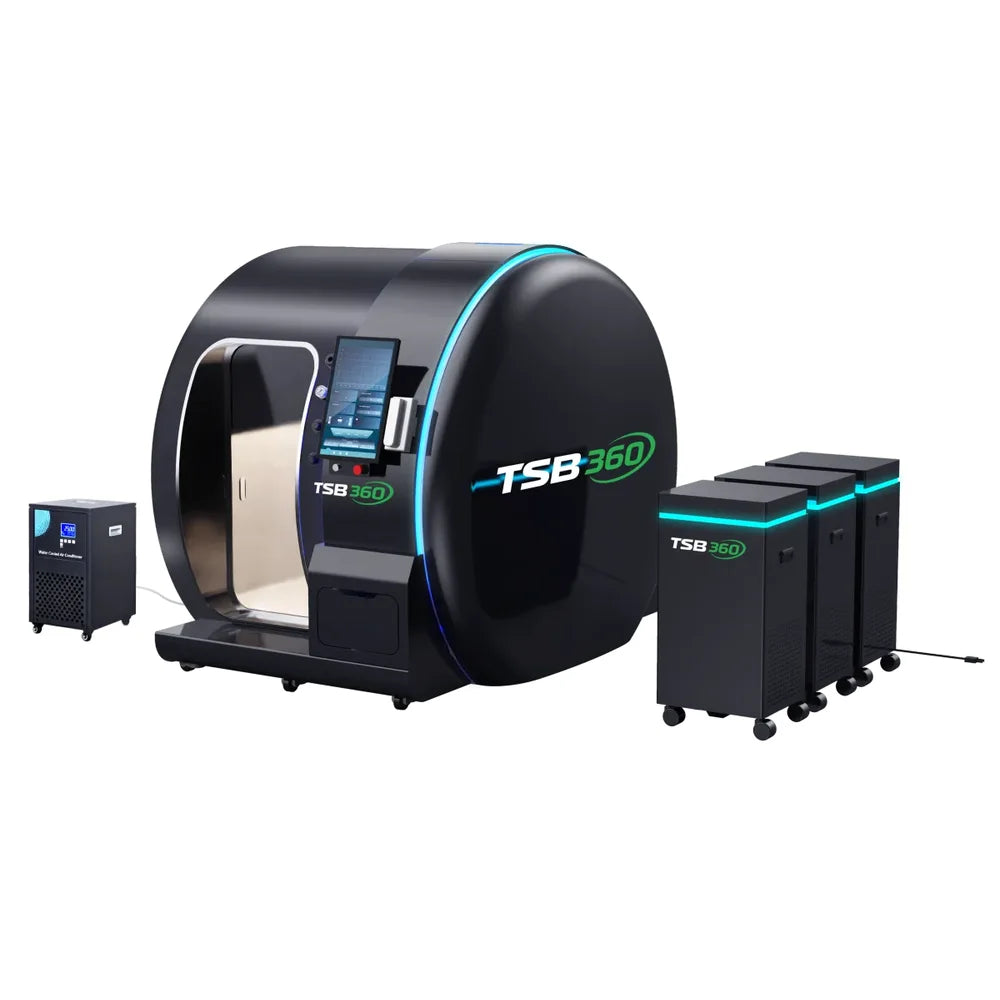

Everything needed to run the chamber ships with it, housed in three wheeled dark grey cabinets you can position to suit your room.

• Dual oxygen concentrator system built from two 20L/min oxygen generators feeding the BIBS
• >300KPa air compressor module driving chamber pressurization
• Integrated water cooling system keeping the concentrators and compressor running through back-to-back sessions

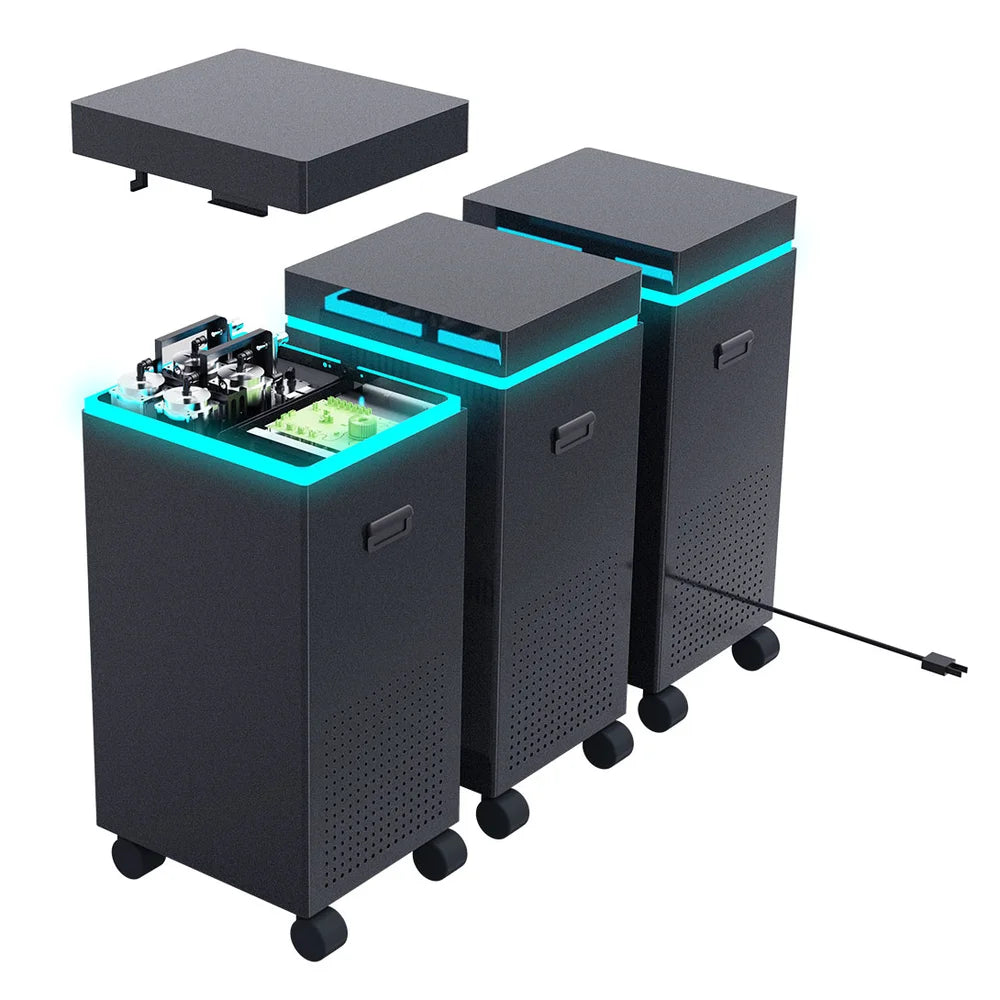

• Serviceable cabinets with lift-off lids over the valve manifold and control board for straightforward maintenance

Hookups, Site Prep, and White-Glove Installation

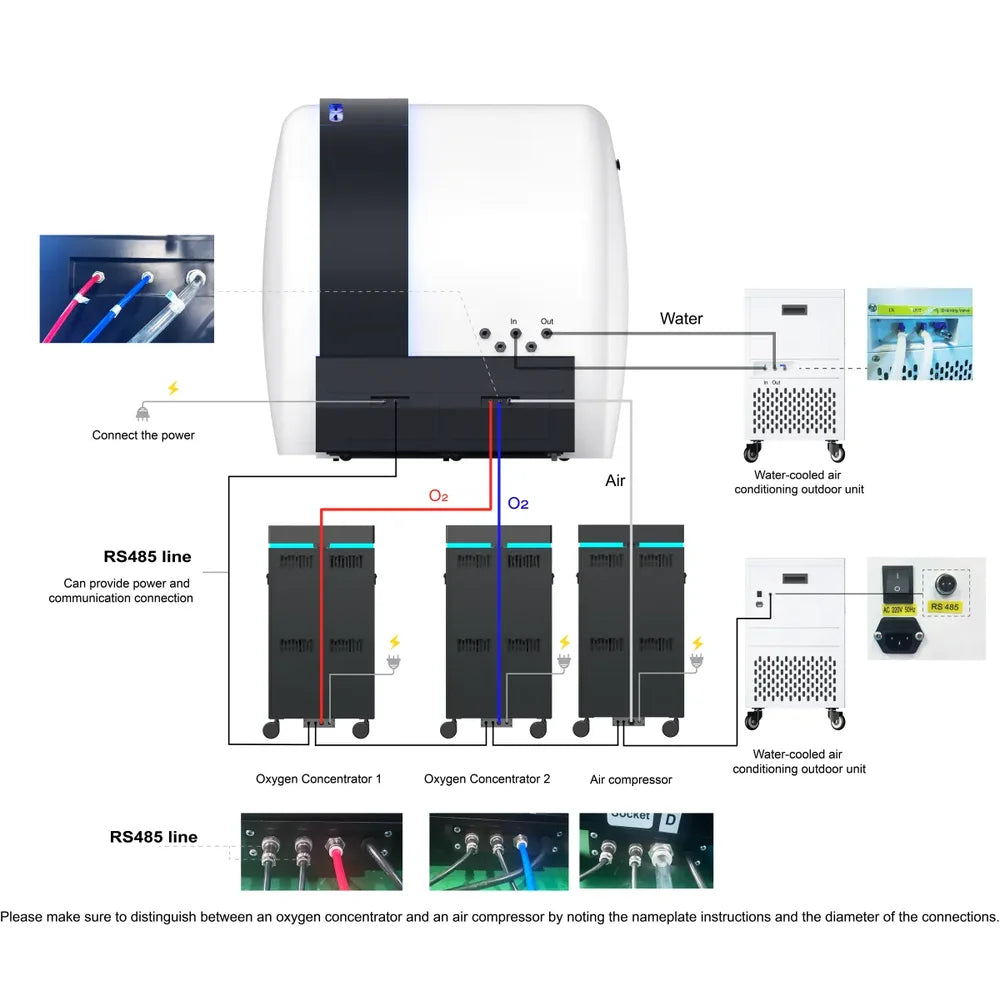

Rear connections are clearly mapped: water in and out, power, an RS485 communication line, O2 lines from both concentrators, the air line from the compressor, and two water-cooled air conditioning outdoor units.

Site requirements are simple. You'll need a 7ft wide entrance for modular assembly and a dedicated 50A circuit at 220 to 240V. No special ventilation is required. We supply a pre-install checklist for your contractor or electrician.

Most installations wrap up in a single visit, usually 2 to 3 hours covering delivery, placement, assembly, and testing, so you can run your first session the same day. Lead time runs 2 to 4 weeks from order to installation, with free delivery and installation included and white-glove service available in most metros. The chamber ships assembled with the O2 concentrator supplied separately.

Planning for Commercial Use

Every facility is different. Session pricing, client volume, staffing, and operating costs all vary, so we don't publish revenue or payback estimates. If you're adding this equipment to a clinic, studio, spa, or gym, call us at (855) 975-6272 and we'll help you plan space, power, installation, and support.
