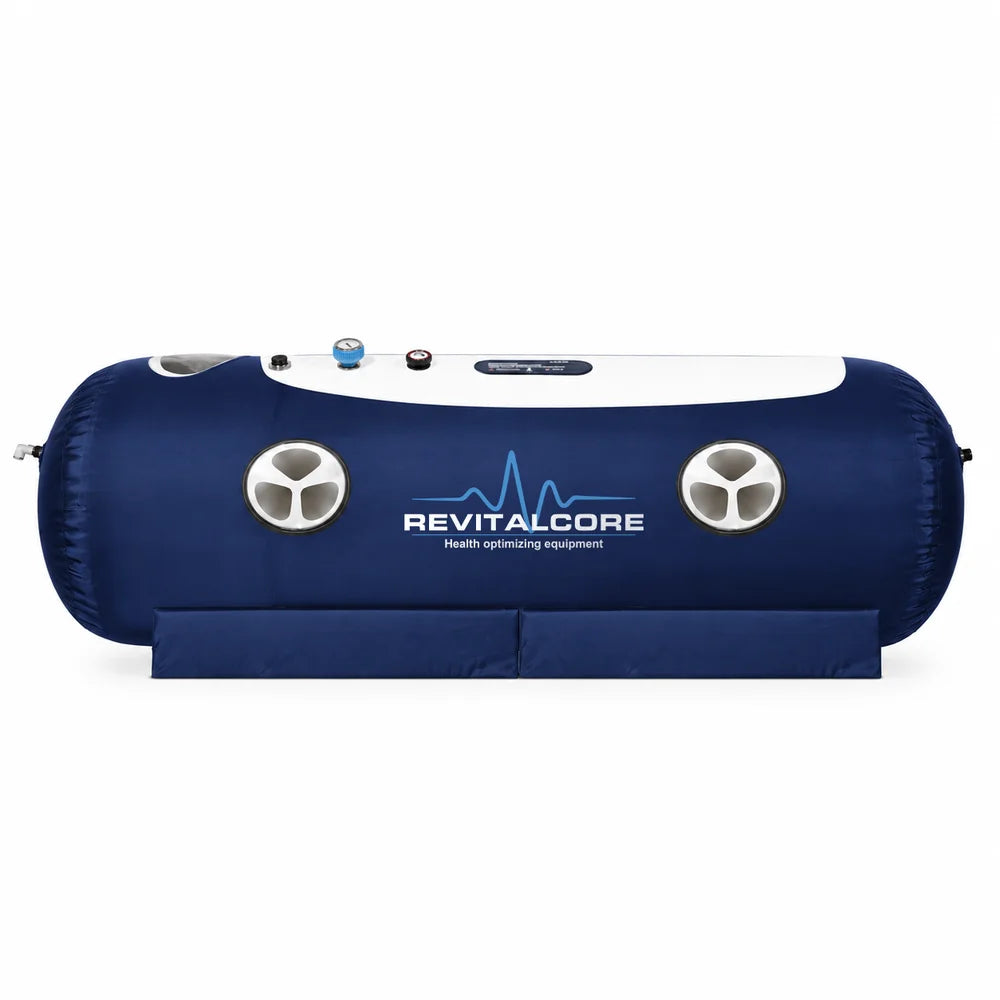

RevitalCore Ascent Flex Hyperbaric Chamber Horizontal Single User

Room to Stretch Out at Home With the RevitalCore Ascent Flex Softshell Hyperbaric Chamber

The RevitalCore Ascent Flex is a single-user horizontal soft shell hyperbaric chamber for home use. Want more room in your hyperbaric sessions? Stretch out full length inside a 225 cm horizontal chamber, pick your pressure, and breathe continuously generated oxygen without ever hauling a tank into the room. Seven clear windows keep the space bright and open instead of closed-in, the compressor runs behind an integrated silencer, and cooling plus dehumidification keep the interior comfortable session after session. Your choice of 110V, 220V or 240V power and 1.3, 1.4 or 1.5 ATA pressure means the system arrives configured around your space and your protocol.

• Chamber Size: 225 cm long by 80 cm in diameter, giving one user full-length room to stretch out.
• Pressure Choice: Selectable at 1.3, 1.4 or 1.5 ATA to match your protocol, with 1.5 ATA as the maximum.
• Power Choice: Available in 110V, 220V or 240V to match your local supply.
• Oxygen Supply: Molecular-sieve concentrator generates oxygen continuously, up to 93%, with no external tank needed.
• Visibility: Seven transparent windows keep the interior bright and open.
• Comfort Controls: Air cooling and dehumidification plus a silenced compressor keep sessions comfortable and quiet.
• Safety Features: Internal pressure gauge, automatic pressure-relief valves, an emergency-release valve and a manual air-deflation valve give the occupant direct control.
• Build Quality: TPU shell with high-frequency welded seams, an internal metal frame and YKK zipper hardware for lasting use.
• Certifications: CE, ISO 9001 and ISO 13485.
• Best Fit: Home wellness rooms, recovery studios, gyms, spas and professional facilities.
• Commercial Fit: No oxygen contracts, low power draw and no construction work needed.
• Order Note: Each unit is made to order around your chosen voltage and pressure, with production timelines confirmed at quote.
• Shipping and Warranty: Shipping, installation and warranty terms are confirmed with your personal quote. Contact us for details.

Variant comparison

Choose Your Pressure and Power With the RevitalCore Ascent Flex HBOT Chamber

Two decisions shape how this chamber fits your setup, and both are yours to make at order time.

• Operating Pressure: 1.3 ATA, 1.4 ATA or 1.5 ATA. The selectable design lets you match the chamber to the protocol you or your clients follow, with a maximum operating pressure of 1.5 ATA, roughly 7.2 PSI above ambient.
• Voltage: 110V, 220V or 240V, so the compressor, concentrator and cooler plug into your local supply without adapters or workarounds.

Every other feature listed on this page is shared across all nine configurations. Pick the combination that suits your room and your region, and the rest of the system stays identical.

A Bright, Open Interior Built for One User to Stretch Out

Cramped chambers make long sessions feel longer. At 225 cm long and 80 cm in diameter (approximately 89" length × 32" diameter), the full-length horizontal layout gives a single user room to lie flat, shift position, and settle in.

• Seven transparent viewing windows flood the interior with light and keep you visually connected to the room around you, which makes a real difference if enclosed spaces normally bother you.
• Air cooling and dehumidification run throughout the session, pulling out the warm, humid feeling that builds up inside a sealed chamber. The air cooler draws 200W and measures 18 × 12 × 35 cm (approximately 7.2" × 5" × 14").
• Integrated compressor silencer keeps operating noise down so you can rest, read or sleep instead of listening to machinery.

Continuous Oxygen Delivery Without a Single Tank

No cylinder deliveries. No refill schedule. No storage cage in the corner. A molecular-sieve oxygen concentrator pulls oxygen from the air around it and feeds the chamber continuously for as long as you run the session.

• Factory-rated oxygen concentration up to 93%
• Adjustable flow from 1 to 5 LPM, so sessions can be dialed in per person rather than run at one fixed setting
• Delivered through an oxygen headset or facial mask, whichever the occupant finds more comfortable
• 500W concentrator measuring 35 × 10 × 65 cm (approximately 14" × 4" × 26")

Removing external tanks also removes a storage and handling headache, which matters most in a home wellness room or a studio with limited floor space.

Pressure Control and Safety Valves You Can Monitor From Inside

Confidence inside a pressurized chamber comes from knowing what the pressure is doing and knowing you can change it yourself.

• Internal pressure gauge so the occupant reads chamber pressure directly, without relying on someone outside
• Automatic pressure-relief valves that help regulate operating pressure through the session
• Emergency-release valve for faster depressurization when it is needed
• Manual air-deflation valve as an additional pressure-release option

Air reaching the chamber passes through a built-in filter on the compressed-air line, and the 550W compressor delivers 72 LPM from a unit measuring 39 × 24 × 26 cm (approximately 16" × 10" × 10").

TPU Construction, Metal Framing and Hardware Made to Last

A soft-shell chamber lives or dies on its shell and its seams. This one is built with both in mind.

• TPU chamber material with strong abrasion and tear resistance for repeated setup, use and handling
• High-frequency welded seams that add strength and stability where fabric chambers are most stressed
• Internal metal frame that holds the chamber's shape even when deflated, so it looks and stores far better than a collapsed bag
• YKK zipper hardware for smooth, dependable entry and exit
• Protective outer cover available as an accessory in multiple colors

Certified to CE, ISO 9001 and ISO 13485 standards.

Where the RevitalCore Ascent Flex Home Hyperbaric Chamber Fits Best

At 33 kg net (approximately 73 lbs) and shipping at 34 kg (approximately 75 lbs) in a package measuring 87 × 58 × 47 cm (approximately 34.3" × 22.8" × 18.5"), this system moves into a room far more easily than a rigid chamber.

• Home wellness rooms where a permanent hard-shell installation is not practical
• Recovery studios adding a premium service without construction work
• Gyms offering post-training recovery alongside existing services
• Spas building out a wellness menu
• Professional facilities that need a single-user chamber with selectable pressure

Planning for Commercial Use

Every facility is different. Session pricing, client volume, staffing, and operating costs all vary, so we don't publish revenue or payback estimates. If you're adding this equipment to a clinic, studio, spa, or gym, call us at (855) 975-6272 and we'll help you plan space, power, installation, and support.

Built to Order, the RevitalCore Ascent Flex Arrives Configured for You

This chamber is not pulled off a warehouse shelf. Each unit is made to order and assembled to the exact voltage and pressure configuration you select, then quality-checked before it leaves production. That build-to-order process is why the system arrives matched to your room and your electrical supply rather than close enough.

Because it is built specifically for you, lead times on larger equipment like this can run one to three months. We will confirm the current timeline with your quote so you can plan your space around a real date.

Shipping, Installation and Warranty Information

Shipping and installation are quoted separately and are not calculated at checkout. Select Get More Info to request a complete quotation. Once we confirm your delivery destination and any installation requirements, we will send you the equipment total, shipping costs and any requested installation charges by email.

For full warranty terms and coverage details on this chamber, Contact Us before you order and we will confirm exactly what applies to your configuration.
